Active Noise Control Unit Removal/Installation: 2WD

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the headliner and display cover.
Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove the navigation display unit (with navigation) (see NAVIGATION UNIT REMOVAL/INSTALLATION ) or audio unit (without navigation) (see WITHOUT NAVIGATION SYSTEM (EX, EXL MODELS) ).
Disconnect the connector (A), then remove the bolts and the active noise control unit (B).

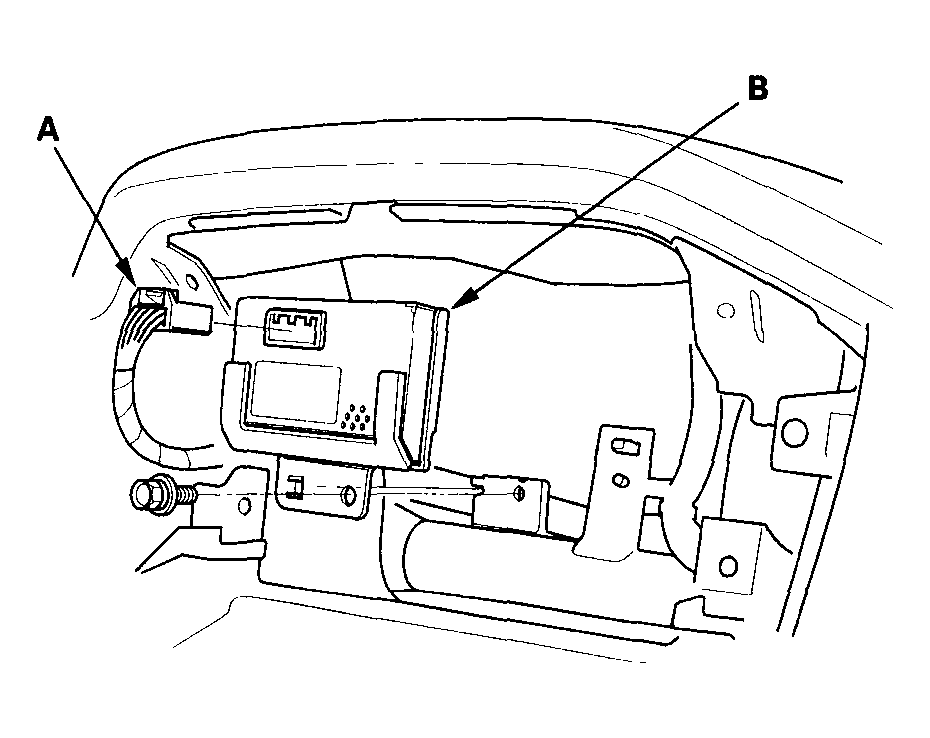

Fig 1: Disconnecting Connector, Removing Bolts & Active Nose Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the active noise control unit in the reverse order of removal.
