Power Mirror Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the door glass fully.
  2. Carefully detach the clips, and release the hooks (A, B), then pry out the mirror mount cover (C) by hand in the sequence shown.

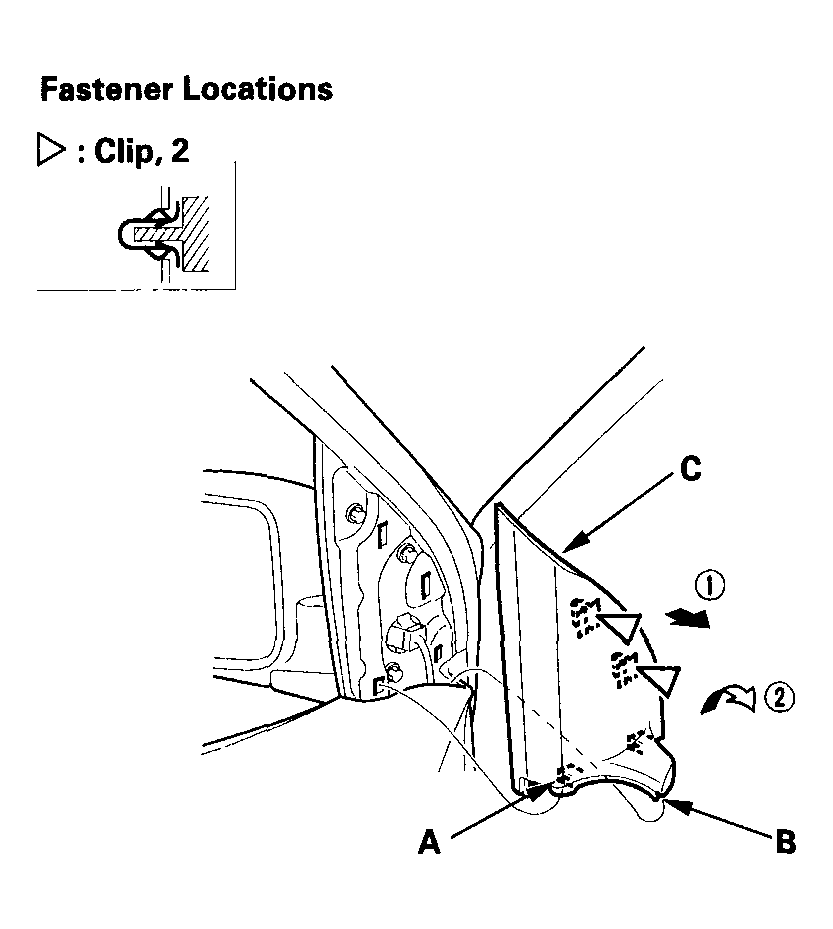

    Fig 1: Removing Power Mirror
    G04248119Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (A).

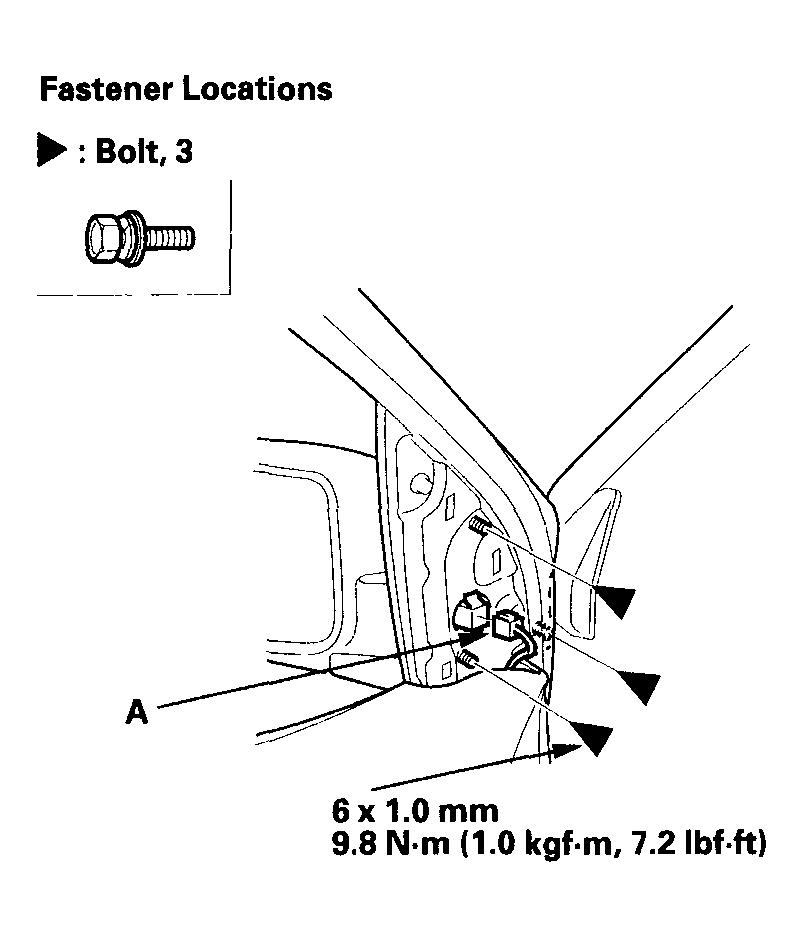

    Fig 2: Disconnecting Connector
    G04248120Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. While holding the mirror, remove the bolts securing the mirror.
  5. While holding the mirror, push in on the connector clips (A), then push out to remove the mirror (B). Take care not to scratch the door.

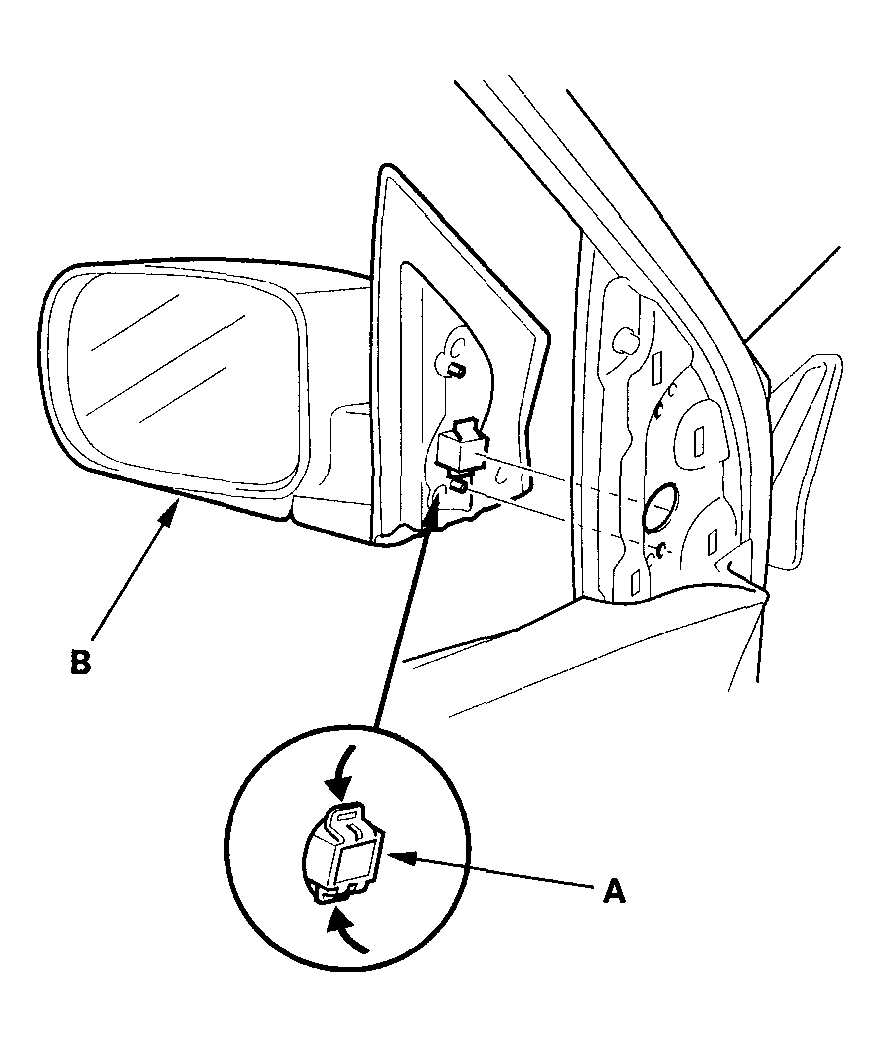

    Fig 3: Pushing On Connector Clips
    G04248121Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the mirror in the reverse order of removal, and note these items:
    • Make sure the connector is plugged in properly.
    • Check for damaged or stress-whitened clips, and replace them with a new one.
    • Push the clips into place securely.
