Home >> Honda >> 2007 >> Ridgeline RT >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heaters >> Component Location Index

Component Location Index

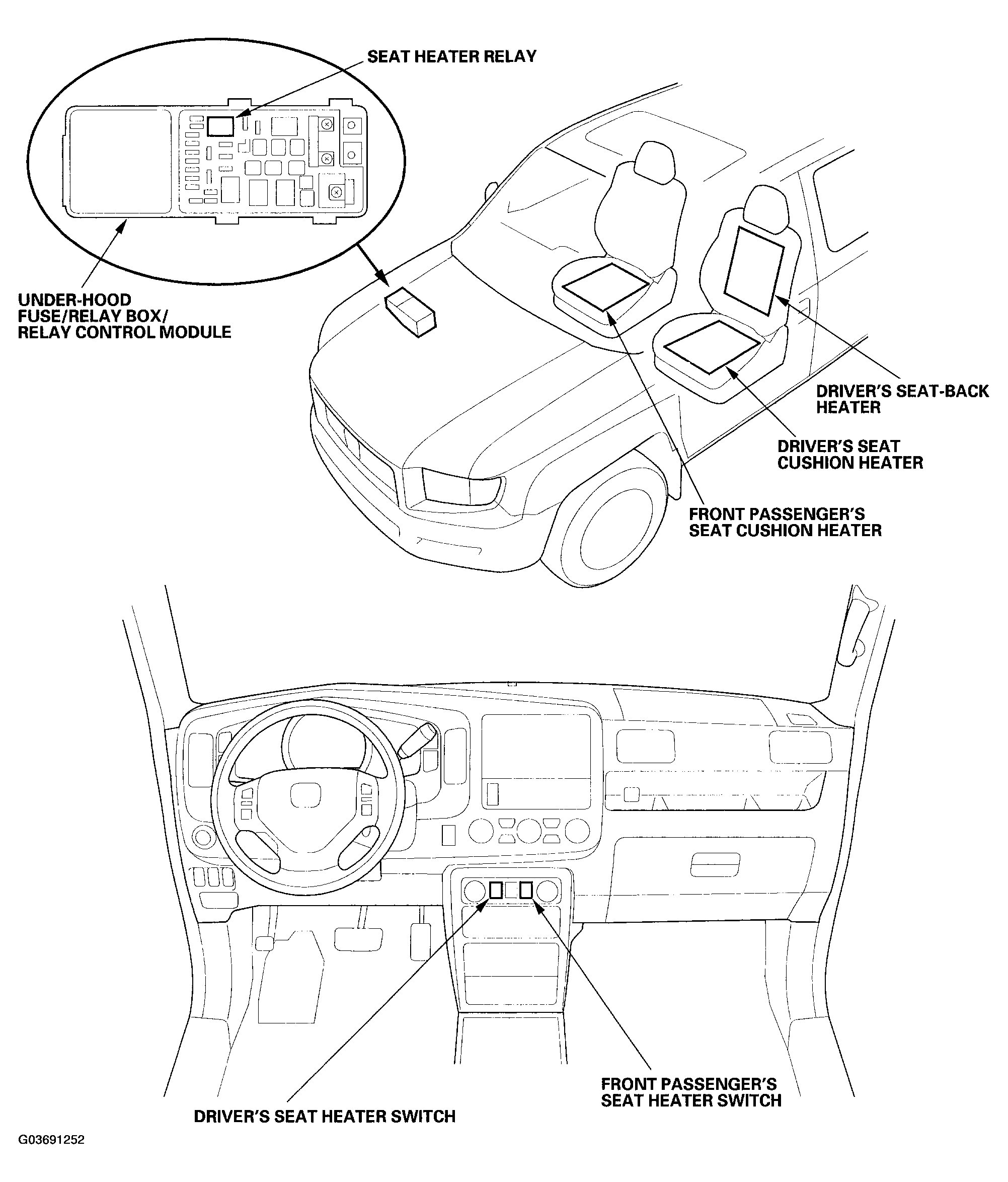

Fig 1: Identifying Seat Heaters Component Location

G03691252

Courtesy of AMERICAN HONDA MOTOR CO., INC.
