Navigation Display Unit (EX-L: Navigation) Connector End View
Navigation Display Unit (EX-L: Navigation) Connector End View

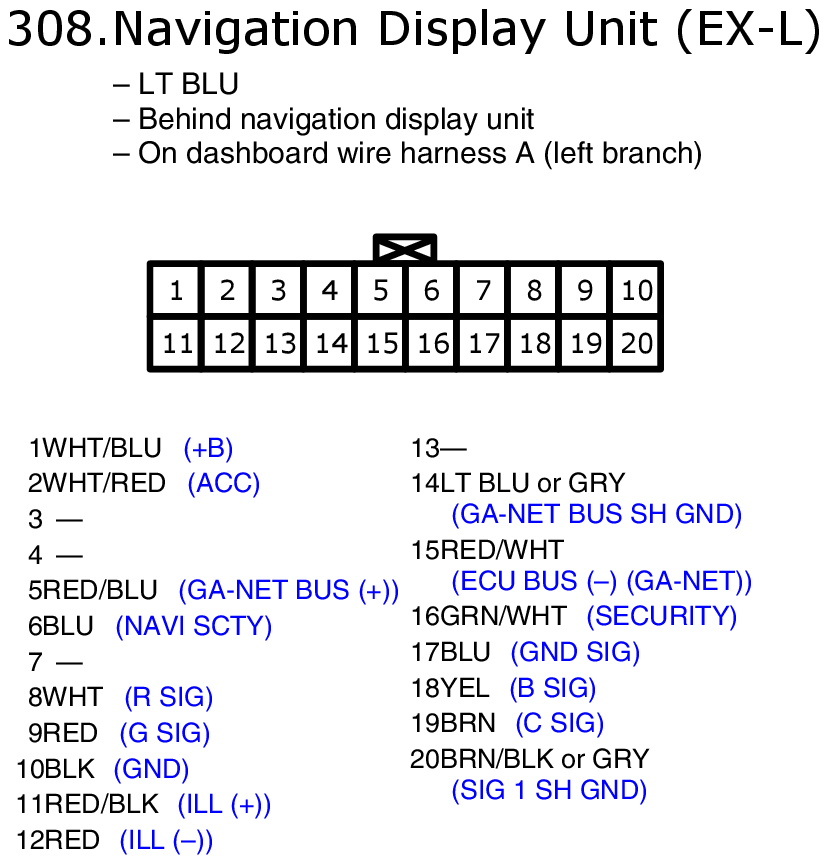

Fig 1: Navigation Display Unit (EX-L: Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
