Engine Mount Control Unit (2WD) Connector End View
Engine Mount Control Unit (2WD) Connector End View

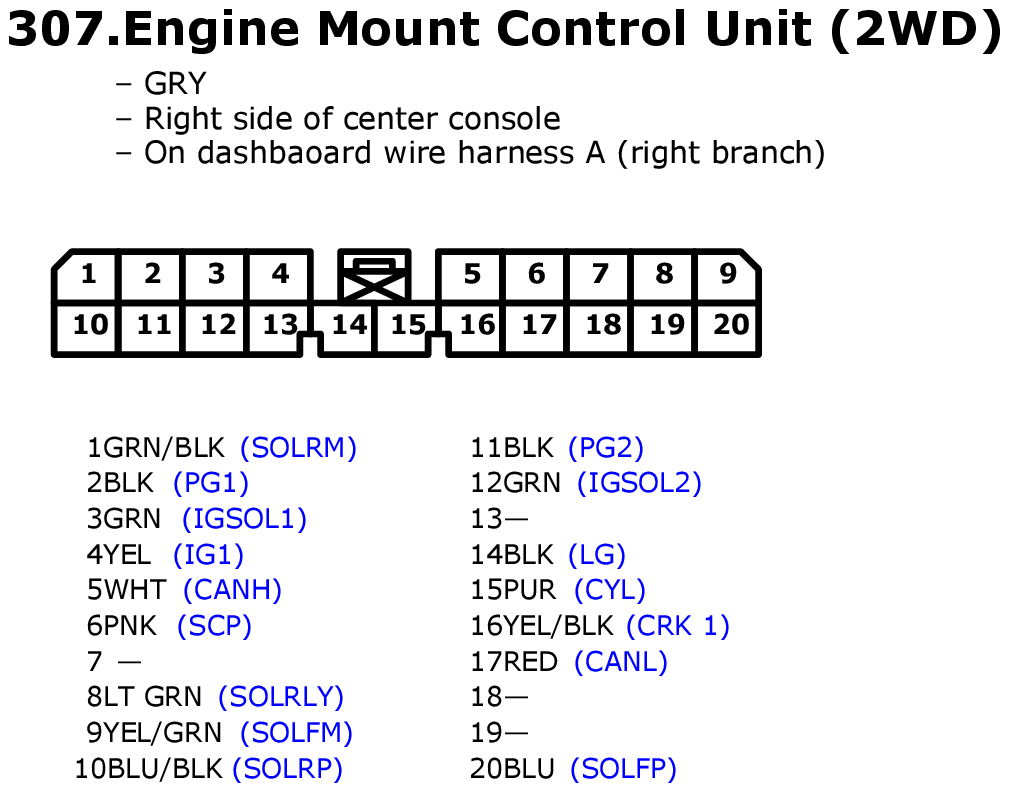

Fig 1: Engine Mount Control Unit (2WD) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
