Driver's Multiplex Control Unit (EX-L) Connector End View

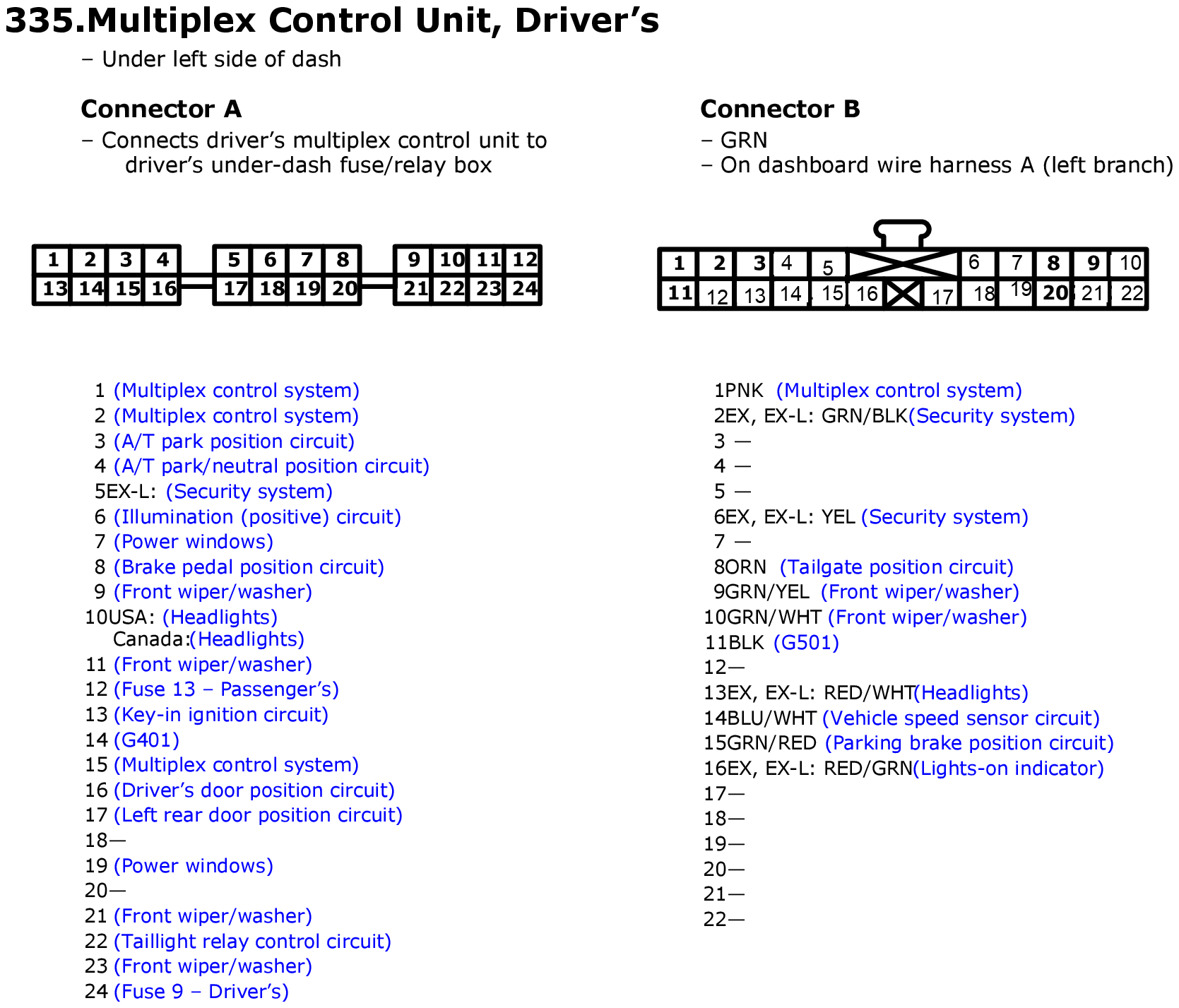

Fig 1: Driver's Multiplex Control Unit (EX-L) Connector End View

GHHW6324

Courtesy of AMERICAN HONDA MOTOR CO., INC.
