Pilot EX, 3.5 YF2
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
Climate Control Unit (EX, EX-L) Connector End View
Climate Control Unit (EX, EX-L) Connector End View

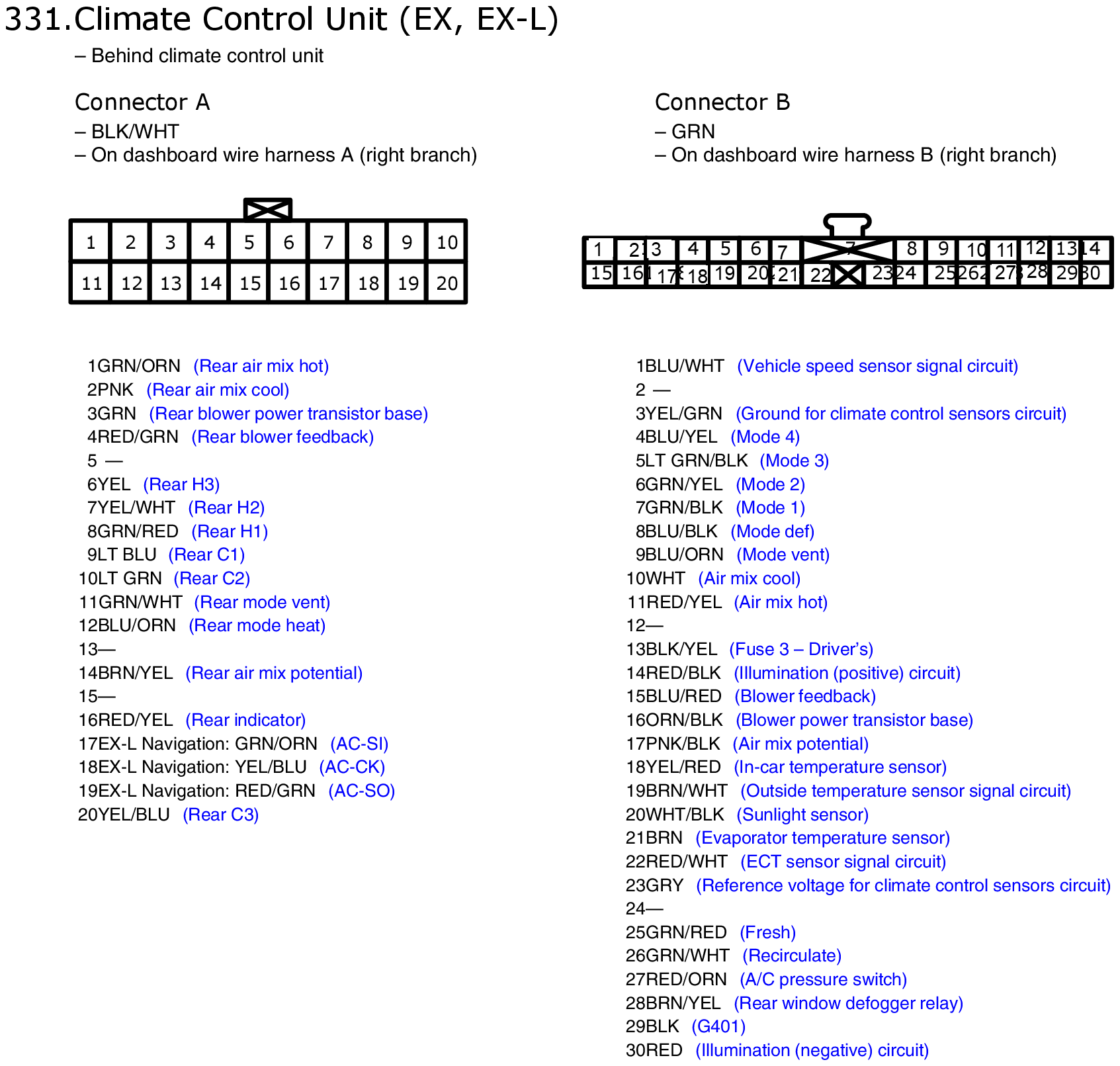

Fig 1: Climate Control Unit (EX, EX-L) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
