ATF Temperature Sensor Connector End View

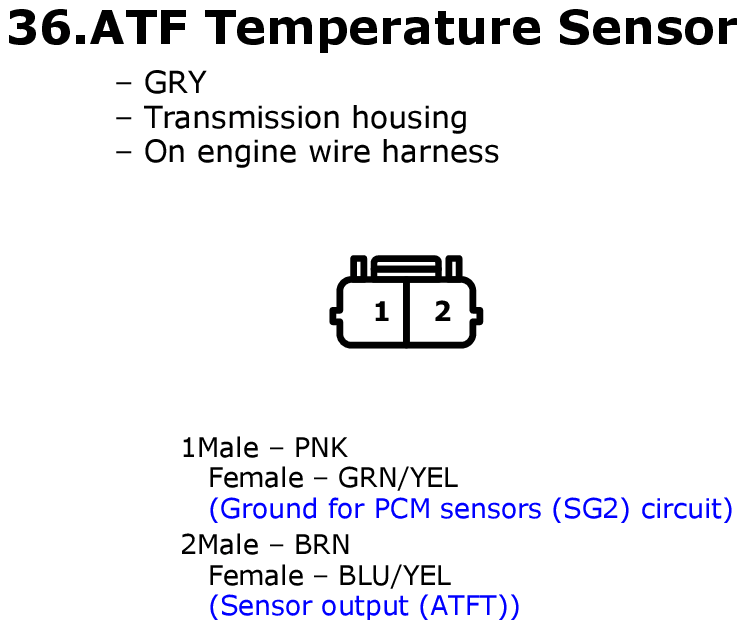

Fig 1: ATF Temperature Sensor Connector End View
GHHW6028Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: ATF Temperature Sensor Connector End View
GHHW6383Courtesy of AMERICAN HONDA MOTOR CO., INC.
