Component Location Index

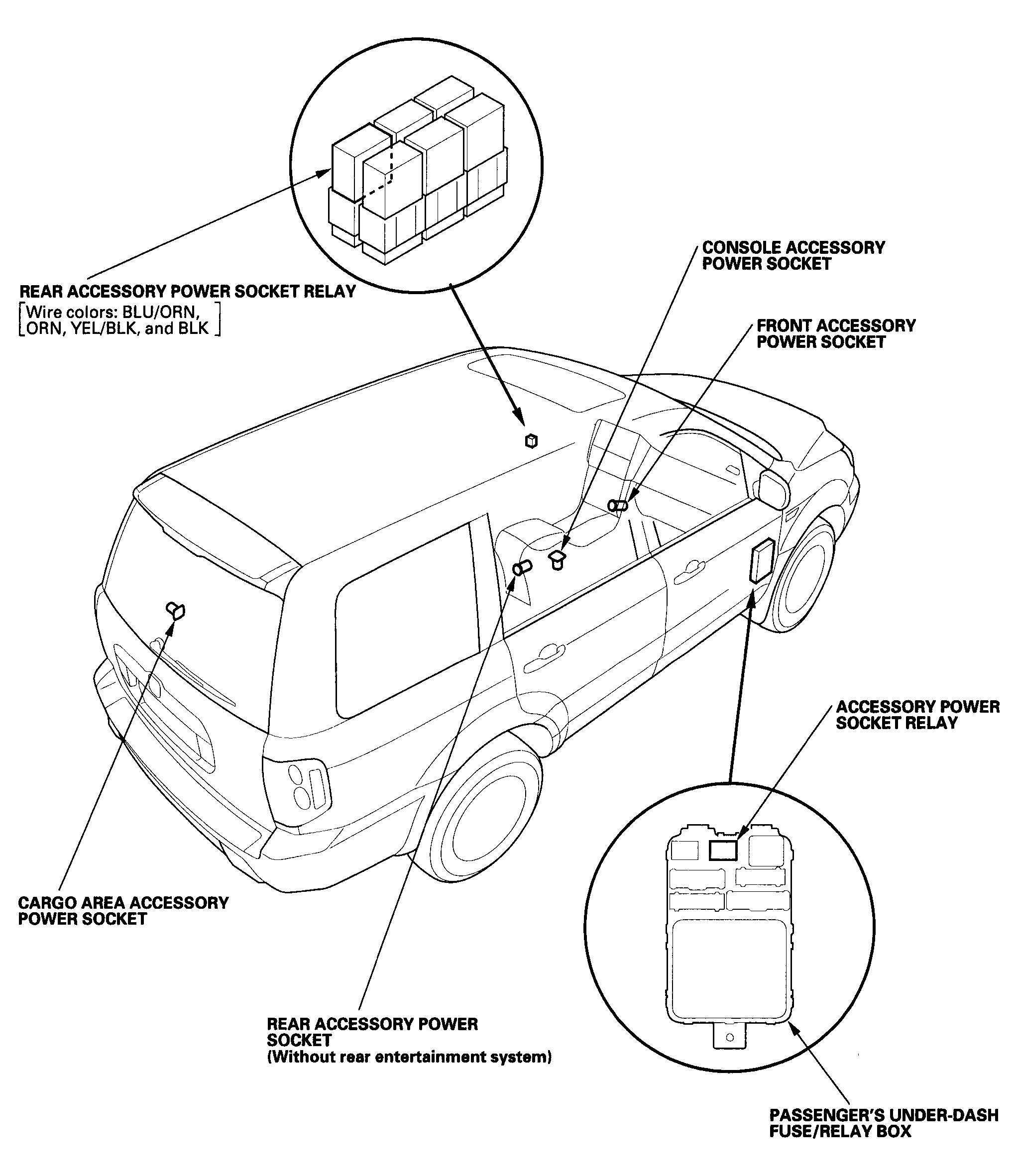

Fig 1: Identifying Accessory Power Sockets Component Location

G04247366

Courtesy of AMERICAN HONDA MOTOR CO., INC.
