J35A7 engine ('08-10 models)

  1. Lift the vehicle, and support it with jackstands.
    NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.
  2. Remove the CKP sensor cover (A).

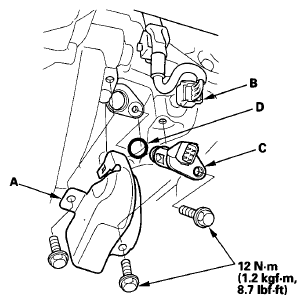

    Fig 1: CKP Sensor Cover, CKP Sensor And O-Ring With Torque Specifications
    G06276803Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the CKP sensor connector (B).
  4. Remove the CKP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
  6. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
  7. Check for engine oil level, and add more oil if needed.
