Crankshaft Inspection

Out-of-Round and Taper

1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
2. '08-09 models J35A7 engine: Remove the crankshaft position (CKP) pulse plate from the crankshaft (seeCKP Pulse Plate Replacement )
3. Clean the crankshaft oil passages with pipe cleaners or a suitable brush.
4. Check the keyway and threads.
5. Measure the out-of-round at the middle of each rod and the main journal in two places. The difference between measurements on each journal must not be more than the service limit.

   Journal Out-of-Round

   Standard (New): 0.005 mm (0.0002 in.) max.

   Service Limit: 0.010 mm (0.0004 in.)

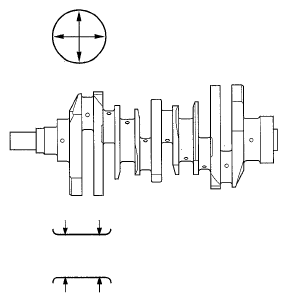

   Fig 1: Identifying Measuring Out-Of-Round At Middle Of Each Rod And Main Journal

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Measure the taper at the edges of each rod and main journal. The difference between measurements on each journal must not be more than the service limit.

   Journal Taper

   Standard (New): 0.005 mm (0.0002 in.) max.

   Service Limit: 0.010 mm (0.0004 in.)

   Straightness

7. Place the engine block on a flat surface, crankshaft side up.
8. Lower the crankshaft into the engine block.
9. Measure the runout on allot the main journals. Rotate the crankshaft two complete revolutions. The difference between measurements on each journal must not be more than the service limit.

   Crankshaft Total Runout

   Standard (New): 0.025 mm (0.0010 in.) max.

   Service Limit: 0.030 mm (0.0012 in.)

   Fig 2: Identifying Runout On Main Journals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
