Audio Unit
- Turn the rear entertainment system ON.
- After the main power switch VOL PUSH PWR (A) is turned ON, push REAR PWR switch (B) to turn the rear system ON. To turn the rear system OFF, push REAR PWR again, and to turn the whole system OFF, push VOL PUSH PWR.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using the selector knob.
- Turn left to select the front controls (Audio).
- Turn right to select the rear controls (After rear operation is finished, selector will automatically return to the front control in 10 seconds).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

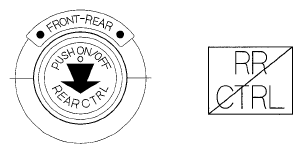

- Rear Control Enable/Disable.
- By pushing the selector knob, the driver can prevent the rear passengers from operating the system. Each push of the selector knob cycles the switch between ON-OFF (Rear Control Enabled/Rear Control Disabled). When rear operation is disabled, the LCD on the audio unit displays RR CONT OFF.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

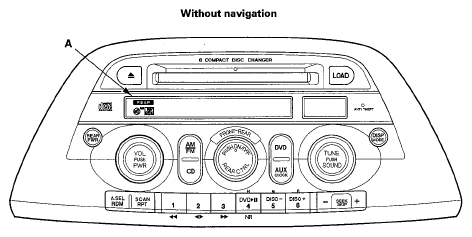

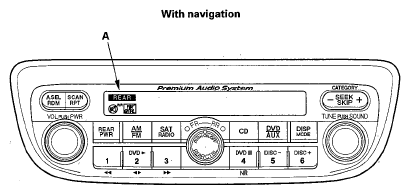

- Viewing the display.
- The display (A) indicates the status of the front and rear systems.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Rear speaker automatic OFF Function.
- By turning the rear speaker OFF you can reduce the interference between the front source and the rear source (Headphone). The speaker will be turned ON/OFF automatically when the front and rear have different sources selected. When the rear speaker is in the OFF mode, the LCD display on the audio unit displays RR SP OFF.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
