Circuit Diagram

WARNING: This page is about a different car, the 2008 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

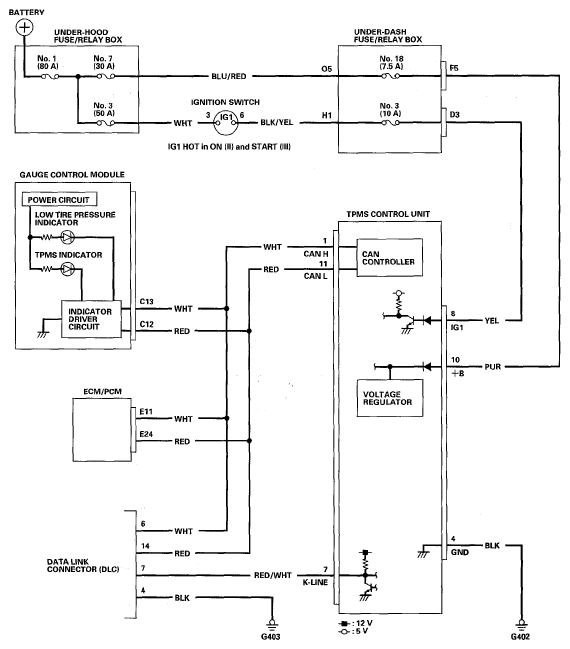

Fig 1: TPMS Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

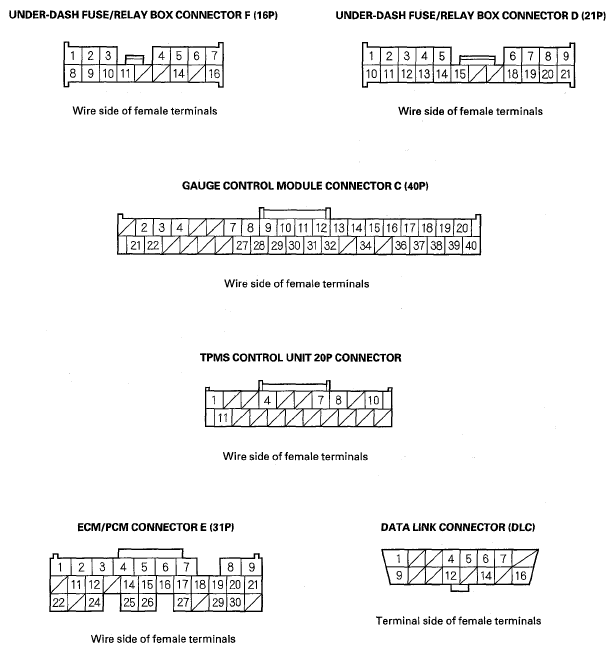

Fig 2: TPMS Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
