Tail Gate Protector: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TAIL GATE PROTECTOR
1. Engage the 10 claws and install the tail gate protector.

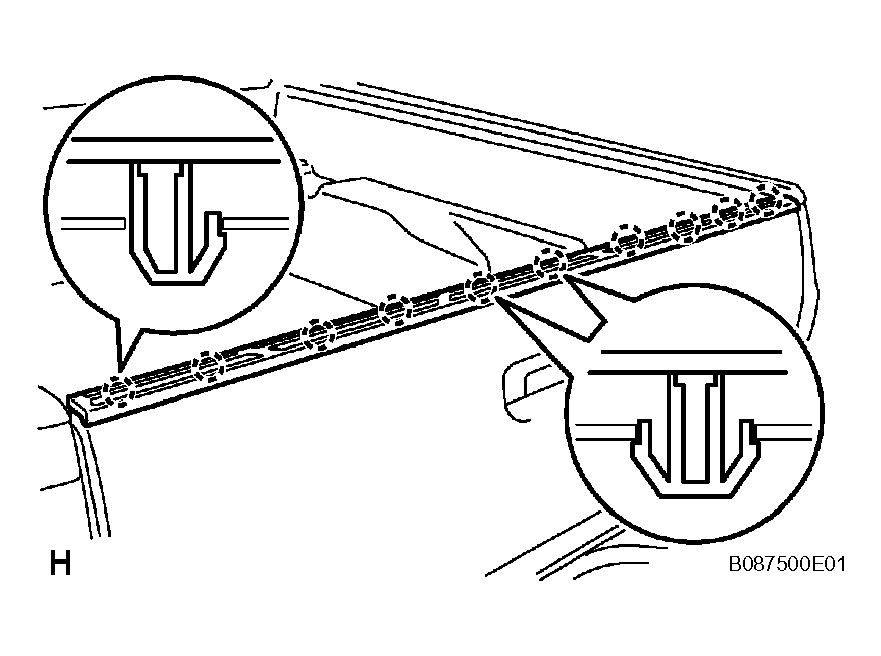

  Fig 1: Installing Tail gate Protector & Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using "Torx" socket wrench T30, tighten the 7 screws.

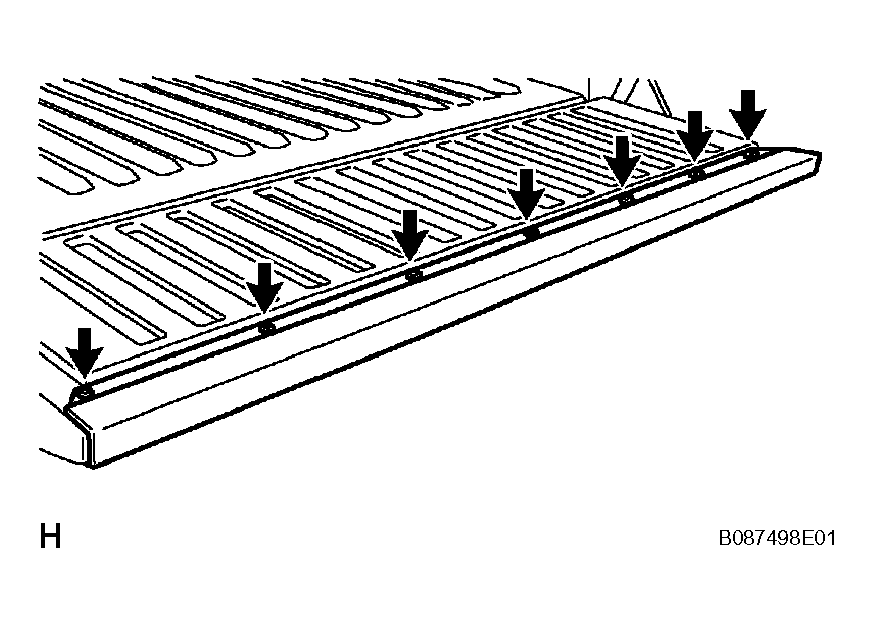

  Fig 2: Tightening Screws Using Socket Wrench T30
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
