Front Bumper: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

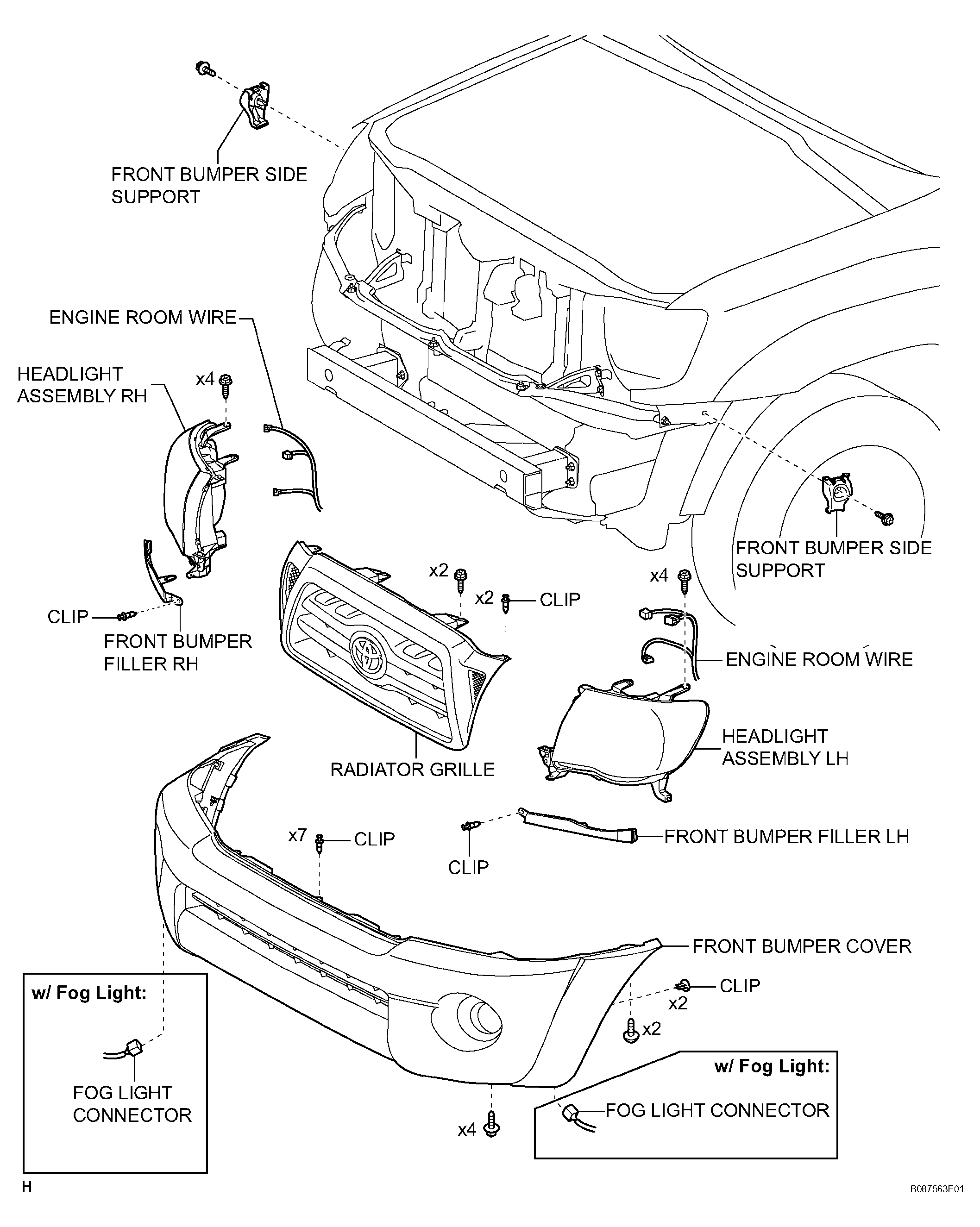

Fig 1: Front Bumper Replacement Components With Torque Specifications (1 Of 3)
G04413598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

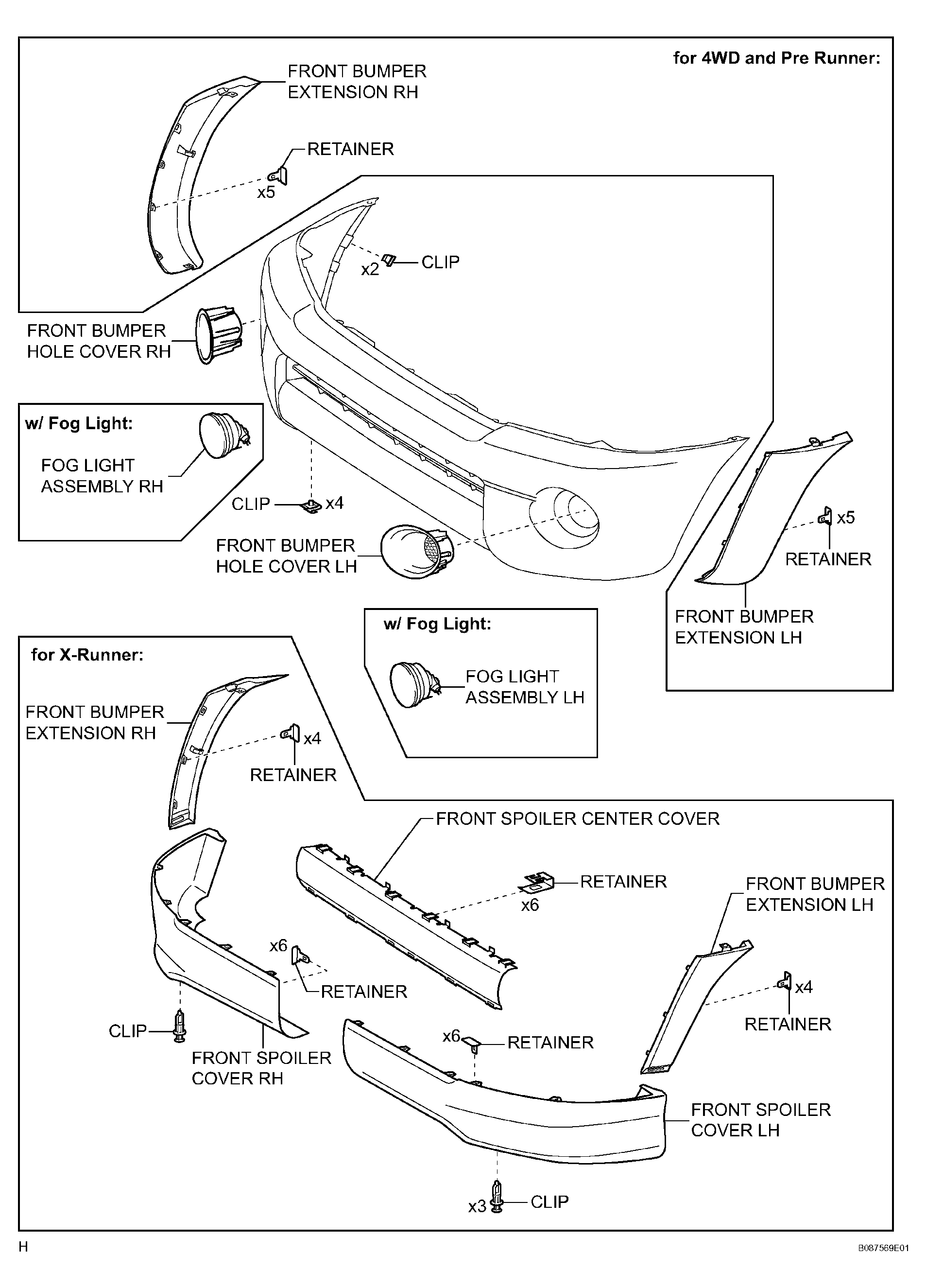

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 3)
G04413599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

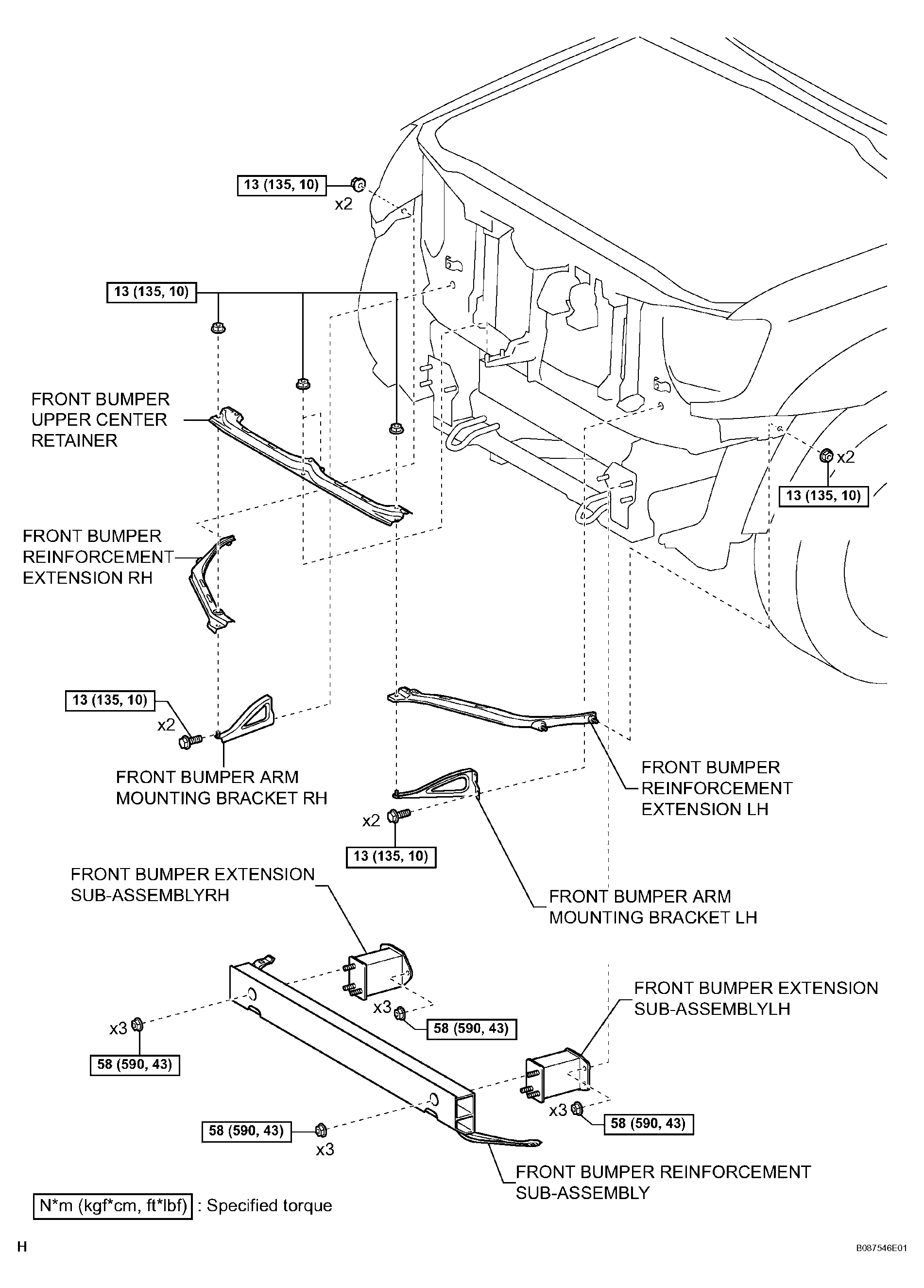

Fig 3: Front Bumper Replacement Components With Torque Specifications (3 Of 3)
G04413600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
