Towing Converter Relay: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. BOLT, SCREW AND NUT TABLE

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabetic codes in Fig 1.

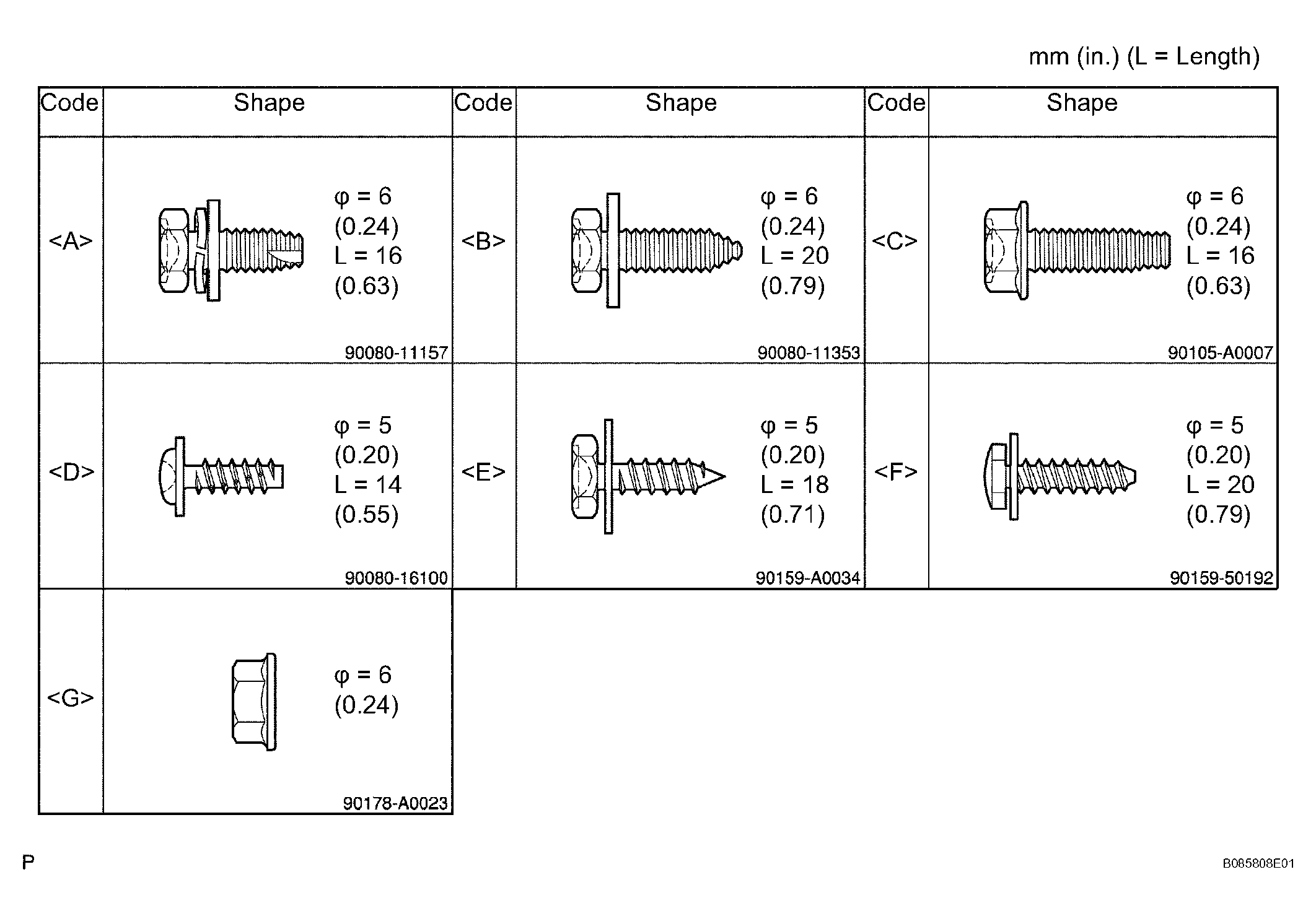

    Fig 1: Bolt, Screw & Nut Specification Table
    G04412518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

  3. REMOVE FRONT FLOOR FOOTREST (See  FRONT FLOOR FOOTREST  )
  4. REMOVE FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See  REMOVAL  )
  5. REMOVE FRONT DOOR SCUFF PLATE LH (for Access Cab) (See  REMOVAL  )
  6. REMOVE FRONT DOOR SCUFF PLATE LH (for Double Cab)
  7. REMOVE FRONT DOOR SCUFF PLATE RH (for Regular Cab) (See  REMOVAL  )
  8. REMOVE FRONT DOOR SCUFF PLATE RH (for Access Cab) (See  REMOVAL  )
  9. REMOVE FRONT DOOR SCUFF PLATE RH (for Double Cab)
  10. REMOVE COWL SIDE TRIM BOARD LH (for Regular Cab) (See  REMOVAL  )
  11. REMOVE COWL SIDE TRIM BOARD LH (for Access Cab) (See  REMOVAL  )
  12. REMOVE COWL SIDE TRIM BOARD LH (for Double Cab) (See  REMOVAL  )
  13. REMOVE COWL SIDE TRIM BOARD RH (for Regular Cab) (See  REMOVAL  )
  14. REMOVE COWL SIDE TRIM BOARD RH (for Access Cab) (See  REMOVAL  )
  15. REMOVE COWL SIDE TRIM BOARD RH (for Double Cab) (See  REMOVAL  )
  16. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH (See  REMOVAL  )
  17. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH (See  REMOVAL  )
  18. REMOVE FRONT PILLAR GARNISH LH (for Regular Cab) (See  REMOVAL  )
  19. REMOVE FRONT PILLAR GARNISH LH (for Access Cab) (See  REMOVAL  )
  20. REMOVE FRONT PILLAR GARNISH LH (for Double Cab) (See  REMOVAL  )
  21. REMOVE FRONT PILLAR GARNISH RH (for Regular Cab) (See  REMOVAL  )
  22. REMOVE FRONT PILLAR GARNISH RH (for Access Cab) (See  REMOVAL  )
  23. REMOVE FRONT PILLAR GARNISH RH (for Double Cab) (See  REMOVAL  )
  24. REMOVE INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See  REMOVAL  )
  25. REMOVE INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See  REMOVAL  )
  26. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Automatic Transmission on Separate Seat Type) (See  REMOVAL  )
  27. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Manual Transmission on Separate Seat Type) (See  REMOVAL  )
  28. REMOVE REAR CONSOLE BOX ASSEMBLY (for Separate Seat Type) (See  REMOVAL  )
  29. REMOVE INSTRUMENT PANEL CUP HOLDER TRAY (for Automatic Transmission on Separate Seat Type) (See  REMOVAL  )
  30. REMOVE FRONT CONSOLE BOX (for Automatic Transmission on Separate Seat Type) (See  REMOVAL  )
  31. REMOVE FRONT CONSOLE BOX (for Manual Transmission on Separate Seat Type) (See  REMOVAL  )
  32. REMOVE FRONT CONSOLE BOX (for Automatic Transmission on Bench Seat Type) (See  REMOVAL  )
  33. REMOVE FRONT CONSOLE BOX (for Manual Transmission on Bench Seat Type) (See  REMOVAL  )
  34. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (See  REMOVAL  )
  35. REMOVE RADIO RECEIVER ASSEMBLY (See  REMOVAL  )
  36. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  DISASSEMBLY  )
  37. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINFISH PANEL (See  REMOVAL  )
  38. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  39. REMOVE COMBINATION METER ASSEMBLY (See  REMOVAL  )
  40. REMOVE INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  41. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  42. REMOVE INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH (See  REMOVAL  )
  43. REMOVE LOWER INSTRUMENT PANEL LH (See  REMOVAL  )
  44. REMOVE LOWER INSTRUMENT COVER SUB-ASSEMBLY (See  REMOVAL  )
  45. REMOVE INSTRUMENT SIDE PANEL RH (See  REMOVAL  )
  46. DISCONNECT PASSENGER AIRBAG CONNECTOR (See  REMOVAL  )
  47. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY W/ PASSENGER AIRBAG ASSEMBLY (See  REMOVAL  )
  48. REMOVE TOWING CONVERTER RELAY
    1. Disconnect the connector.
    2. Remove the bolt and towing converter relay.

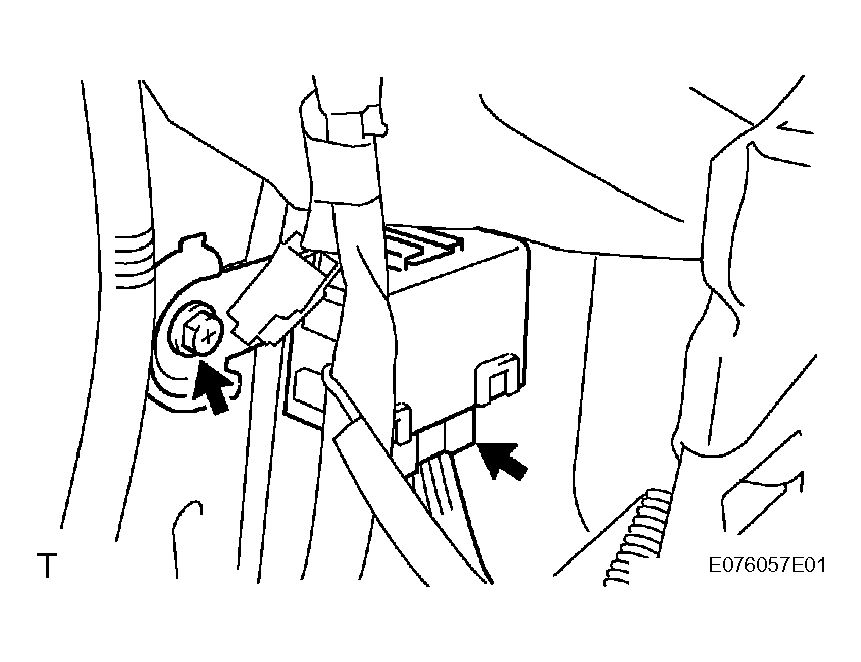

      Fig 2: Removing Towing Converter Relay
      G04412519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
