Starting System: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STARTER ASSEMBLY
NOTE: These tests must be performed within 3 to 5 seconds to avoid burning out the coil.
1. Perform the pull-in test.
  1. Disconnect the field coil lead wire from terminal C.
  2. Connect the battery to the magnetic switch as shown in Fig 1. Check that the clutch pinion gear protrudes.

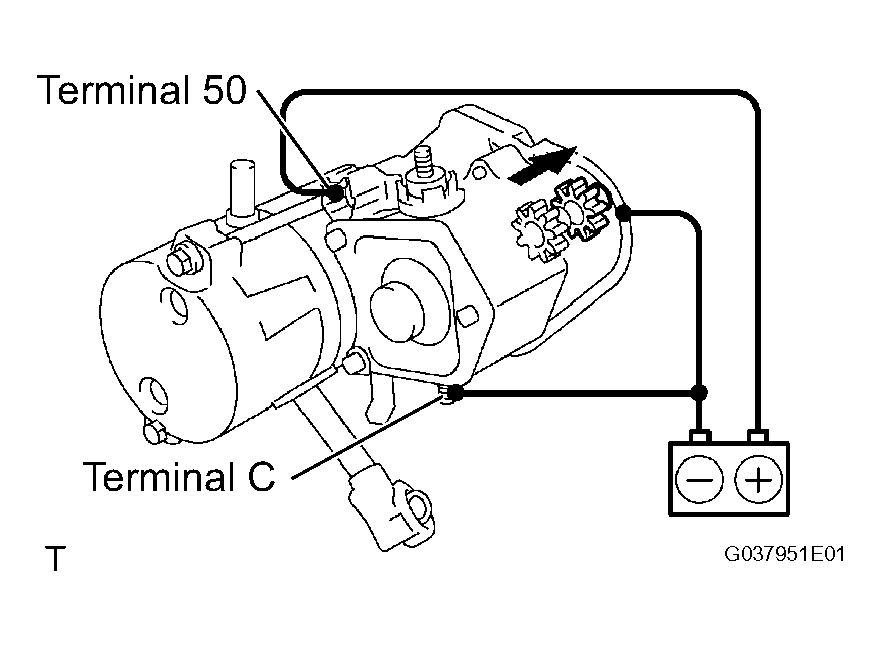

    Fig 1: Connecting Battery To Magnetic Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Perform the hold-in test.
  1. Disconnect the negative (-) lead from terminal C with the above condition ( a) being sustained. Check that the pinion gear remains extended.

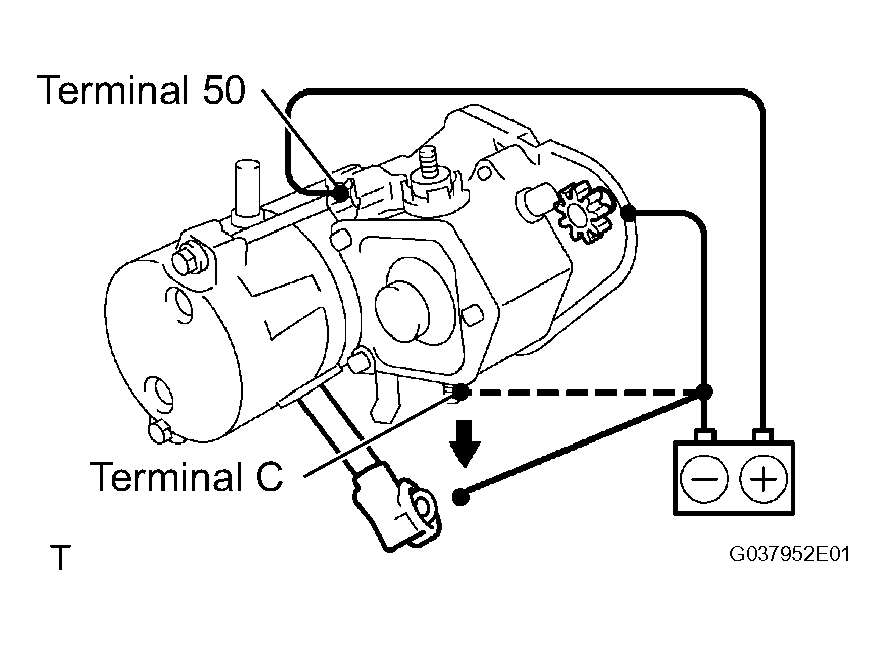

    Fig 2: Disconnecting Negative (-) Lead From Terminal C
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the operation.
  1. Disconnect the negative (-) lead from the starter body. Check that the clutch pinion gear returns inward.

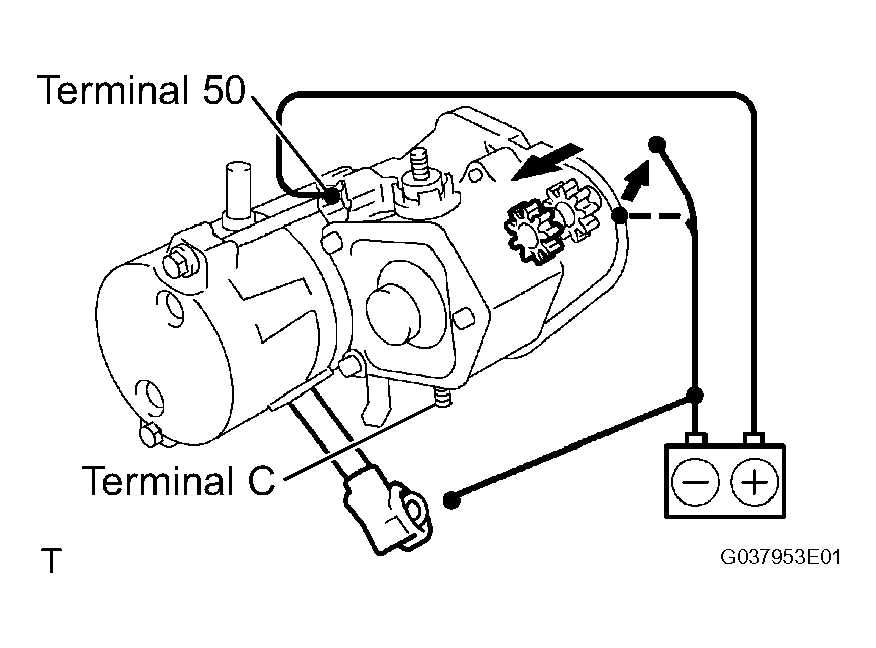

    Fig 3: Disconnecting Negative (-) Lead From Starter Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Perform the operation test without any load.
  1. Connect the field coil lead wire to terminal C.
    Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)
  2. Clamp the starter in a vise.
  3. Connect the battery and ammeter to the starter as shown in Fig 4.
  4. Check that the ammeter indicates the specified current.
    Specified current: 100 A or less at 11.5 V

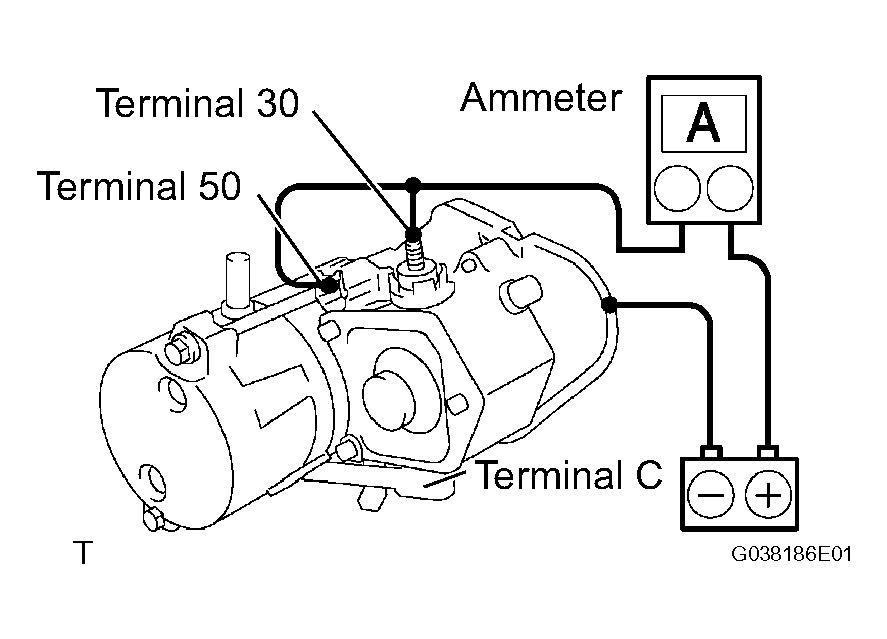

    Fig 4: Connecting Battery & Ammeter To Starter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
