Front Axle Hub Bolt: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT WHEEL
  3. DRAIN BRAKE FLUID
    NOTE: Immediately wash off any brake fluid that comes into contact with painted surfaces.
  4. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See  REMOVAL  )
  5. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD and Pre-Runner) (See  REMOVAL  )
  6. REMOVE FRONT DISC
  7. REMOVE FRONT AXLE HUB BOLT
    1. Using SST and a screwdriver, remove the hub bolt.

      SST 09611-12010

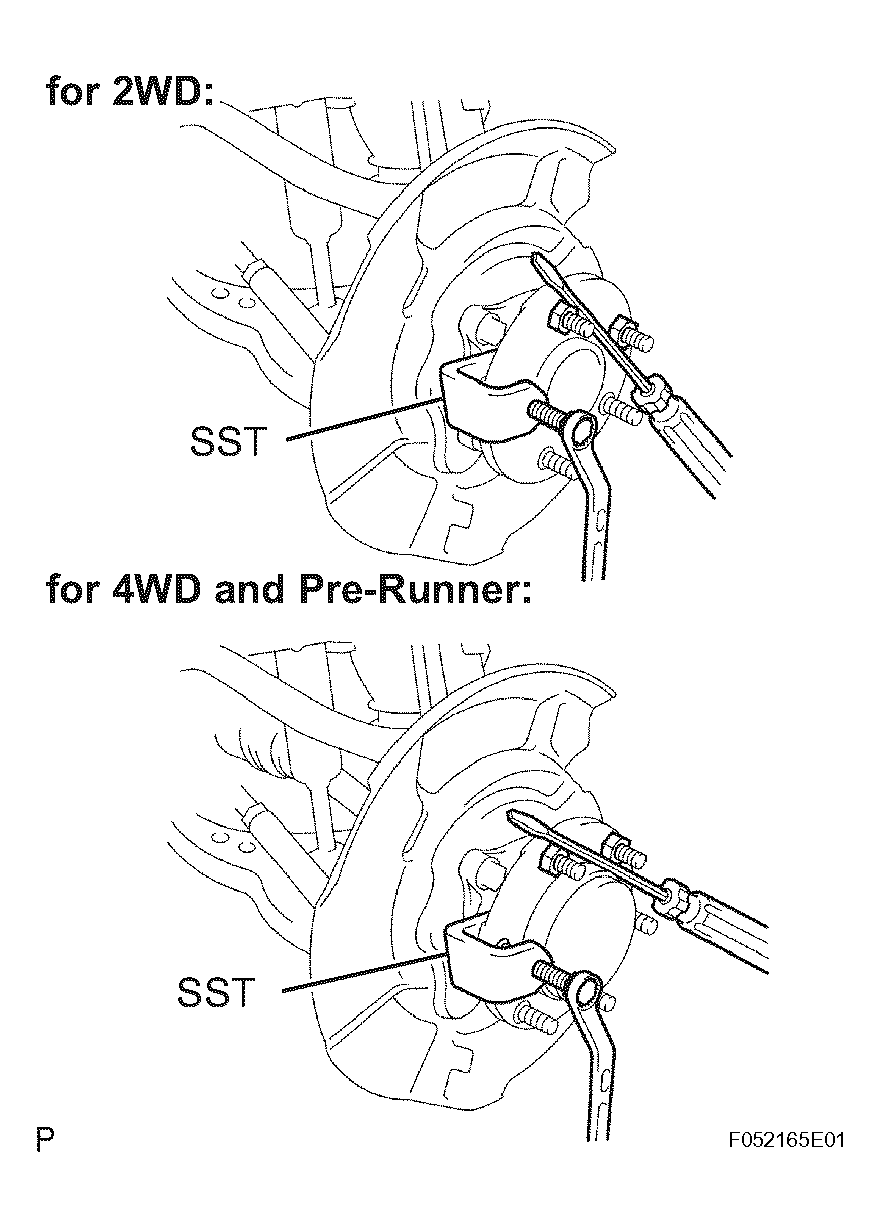

    Fig 1: Removing Hub Bolt Using SST & Screwdriver
    G04369797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
