Section 11 (Engine Cooling System (1GR-FE)): Radiator: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 RADIATOR HOSE
INSTALL RADIATOR HOSE INLET
INSTALL RADIATOR ASSEMBLY
1. Install the radiator with the 4 bolts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
2. Connect the 2 oil cooler hoses (with automatic transmission).
INSTALL FAN SHROUD
1. Provisionally install the fan shroud together with the fan pulley.
2. Install the fan and generator V belt (see INSTALLATION ).
3. Install the fan pulley with the 4 nuts.
  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
4. Install the fan shroud with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
5. Install the 2 cooler hoses into the clamp (with automatic transmission).
6. Connect the hose to the radiator reserve tank.

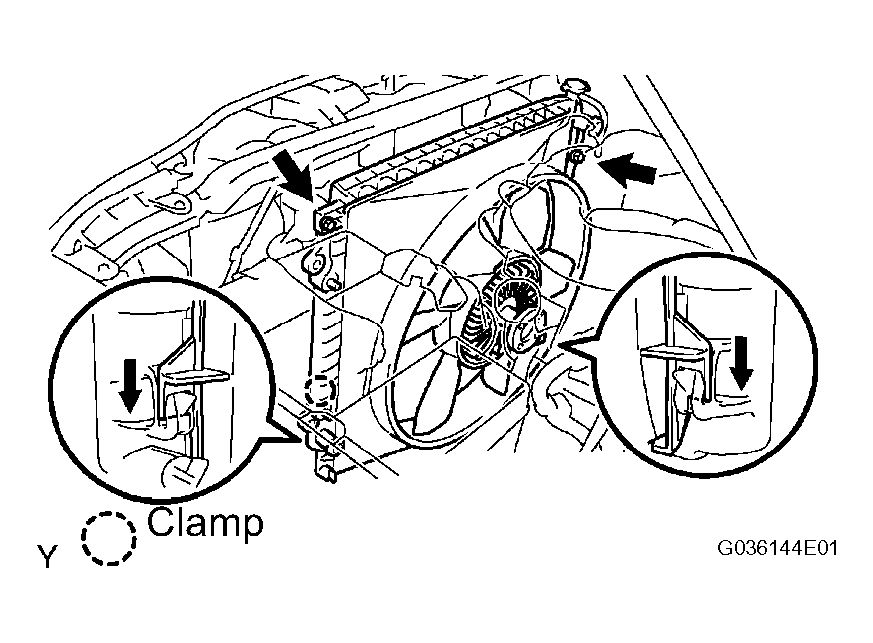

  Fig 1: Installing Fan Shroud
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR SUPPORT TO FRAME SEAL LH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKAGE (See REPLACEMENT )
