Exploded View

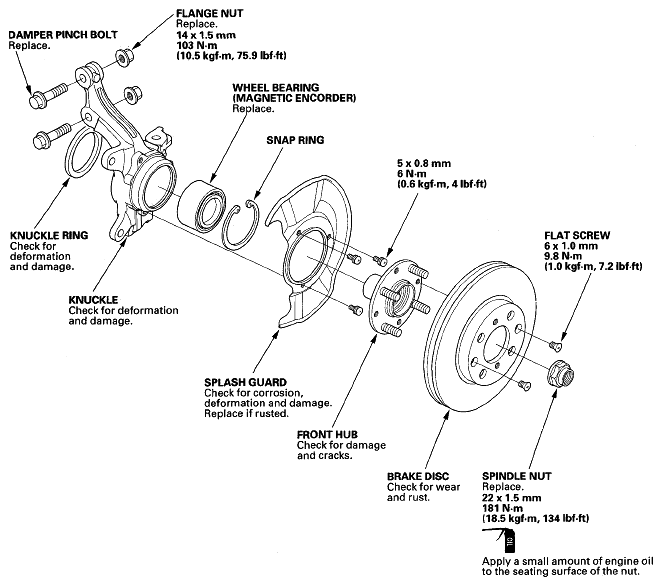

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Ball joint thread protector, 12 mm 07AAF-SDAA100
• Ball joint remover, 28 mm 07MAC-SL0A202
• Driver 07749-0010000
• Attachment, 62 x 64 mm 07947-6340400
• Hub dis/assembly tool 07965-SA70100
• Support base 07965-SD90100
