Left Power Mirror Function Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
Disconnect the 13P connector (A) from the power mirror switch (B) and 37P connector (C) from the power window master switch (D).

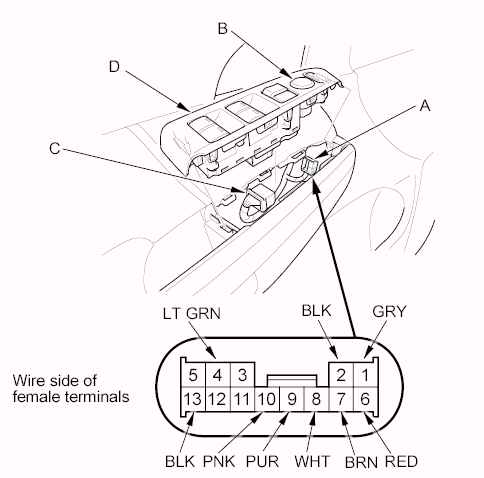

Fig 1: Identifying Power Mirror Switch 13P Connector And Power Window Master Switch 37P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Measure the voltage between body ground and terminal No. 4 of the power mirror switch 13P connector with the ignition switch ON (II). There should be battery voltage.
- If there is no battery voltage, check for:
  - Blown No. B16 (7.5 A) fuse in the driver's under-dash fuse/relay box.
  - An open in the LT GRN wire.
- If there is battery voltage, go to next step.
Check for continuity between terminal No. 13 and body ground. There should be continuity.
- If there is no continuity, check for:
  - Poor ground (G401).
  - An open in the BLK wire.
- If there is continuity, go to next step.
Connect terminals No. 4 and No. 9, and terminals No. 1 (or No. 7) and No. 13 with jumper wires. The left mirror should tilt down (or swing left) with the ignition switch in ON (II).
- If the left mirror does not tilt down (or does not swing left), check for an open in the GRY (or BRN) wire between the left mirror and the 13P connector. If the wire is OK, check the left mirror actuator.
- If the mirror neither tilts down nor swings left, repair the PUR wire.
- If the mirror works properly, check the mirror switch.
