Engine Oil Filter Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Oil Filter Wrench 07AAA-PLCA100

Remove the oil filter with the oil filter wrench.
Inspect the filter to make sure the rubber seal is not stuck to the oil filter seating surface of the engine.
Inspect the threads (A) and the rubber seal (B) on the new filter. Clean the seat on the oil filter base, then apply a light coat of new engine oil to the filter rubber seal. Use only filters with a built-in bypass system.

Fig 1: Identifying Threads And Rubber Seal On Filter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the oil filter by hand.
After the rubber seal seats, tighten the oil filter clockwise with the oil filter wrench.
Tighten: 3/4 Turn Clockwise

Tightening Torque: 12 N.m (1.2 kgf.m, 9 lbf.ft)

Fig 2: Tightening Oil Filter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

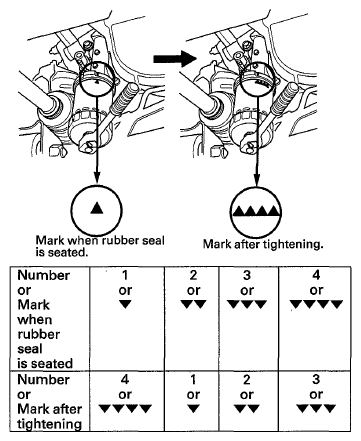

If four numbers or marks (1 to 4 or ↓ to ↓↓↓↓) are printed around the outside of the filter, you can use the following procedure to tighten the filter.
- Spin the filter on until its seal lightly seats against the oil filter base, and note which number or mark is at the bottom.
- Tighten the filter by turning it clockwise three numbers or marks from the one you noted. For example, if mark ↓ is at the bottom when the seal is lightly seated, tighten the filter until the mark ↓↓↓↓ comes around to the bottom.

  Fig 3: Identifying Number Or Mark On Oil Filter
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installation, fill the engine with oil up to the specified level (see Engine Oil Level Check ), run the engine for more than 3 minutes, then check for oil leakage.
