Component Location Index

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Low Oil Pressure Indicator
G06422342Courtesy of AMERICAN HONDA MOTOR CO., INC.

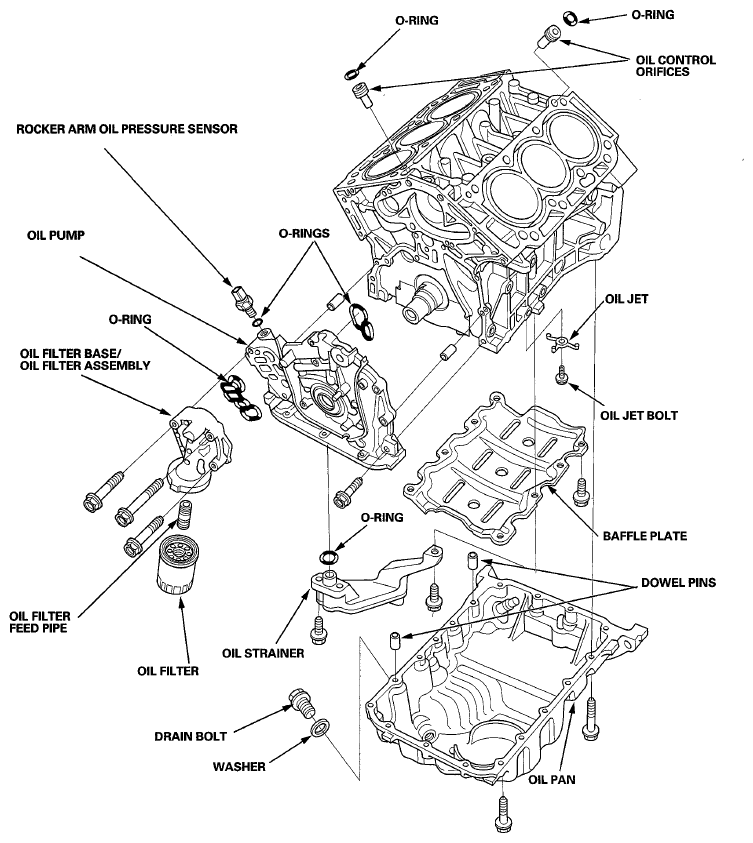

Fig 2: Identifying Engine Lubrication Component Location
G06422343Courtesy of AMERICAN HONDA MOTOR CO., INC.
