Rear Cargo Support Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.

Remove these items:
- Rear trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Front floor cover (see TRIM REMOVAL/INSTALLATION - CARGO AREA )
Remove the bolts (A, B) securing the rear cargo support (C), then-remove the support.

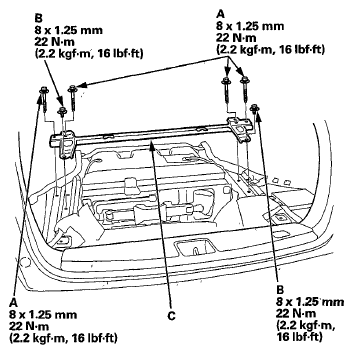

Fig 1: Rear Cargo Support With Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the support in the reverse order of removal.
