Key Interlock Solenoid Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the steering column cover (see COLUMN COVER REMOVAL/INSRALLATION ).
Disconnect the steering lock 6P connector (A).

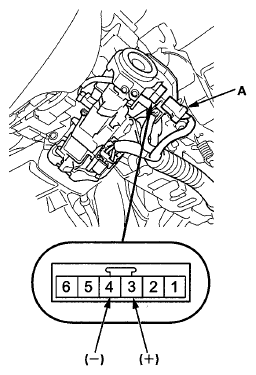

Fig 1: Identifying Steering Lock 6P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the ignition key in the key cylinder, then turn the ignition key to ACCESSORY (I).
Connect power to steering lock 6P connector terminal No. 3, and ground the steering lock 6P connector terminal No. 4. Check that the ignition key cannot be turned to LOCK (0). Disconnect power and check that the key can be turned to the LOCK (0) position and removed from the cylinder.
If the key interlock solenoid works improperly, faulty key inter lock solenoid; replace the steering lock (see CHECK OF LOCK LEVER FORCE ).
