Park Pin Switch Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The park pin switch A/T gear position indicator panel light harness and the park pin switch are not available separately. Replace the A/T gear position indicator panel light harness and the park pin switch as a set.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Remove the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  3. Remove the A/T gear position indicator panel and the panel base (see step  3 on ).
    NOTE: The select cover is not removed from the A/T gear position indicator panel base.
  4. Remove the light bulb (A) from the socket.

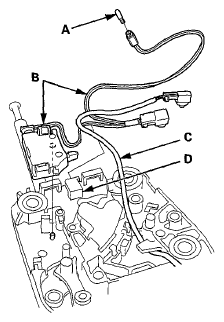

    Fig 1: Identifying Light Bulb And Shift Lock Solenoid Harness
    G06423405Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the park pin switch/A/T gear position indicator panel light harness (B) and the shift lock solenoid harness (C) from the harness guide (D).
  6. Install a new park pin switch/A/T gear position indicator panel light harness.
  7. Route the park pin switch/A/T gear position indicator panel light harness and the shift lock solenoid harness in the harness guide.
  8. Install the A/T gear position indicator panel light bulb in the socket.
  9. Install the A/T gear position indicator pane base and the indicator panel (see step  10 on ).
  10. Install the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  11. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
