DTC P0741: Torque Converter Clutch Hydraulic Circuit Stuck OFF: Notes

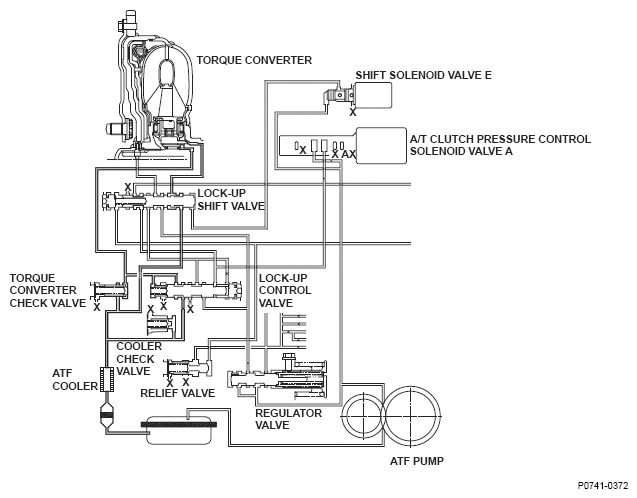

Fig 1: Torque Converter Clutch System Diagram

TORQUE CONVERTER CLUTCH OPERATION REFERENCE

Torque converter clutch operation		A/T clutch pressure control solenoid valve A
		ON (100 %)	OFF (0 %)
Shift solenoid valve E	ON (12 V)	Torque converter clutch: maximum duty	Torque converter clutch OFF
	OFF (0 V)	Torque converter clutch OFF	Torque converter clutch OFF
