Shift Lever Installation

  1. Cover the opening of the dashboard with tape to prevent damage to the dashboard.
  2. Install the shift lever assembly (A) in the dashboard.

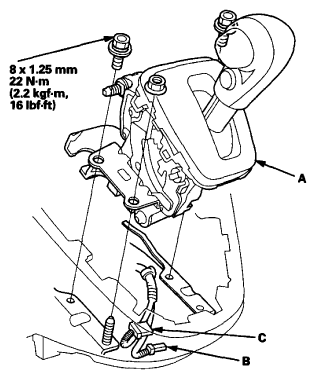

    Fig 1: Shift Lever Assembly In Dashboard With Bolts And Nut With Torque Specification
    G06615819Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Connect the shift lock solenoid connector (B) and the D3 switch/park pin switch/A/T gear position indicator panel light connector (C).
  4. Install the shift cable on the shift lever, and adjust the shift cable (see step  7 ).
