Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Special Tools
Special Tools

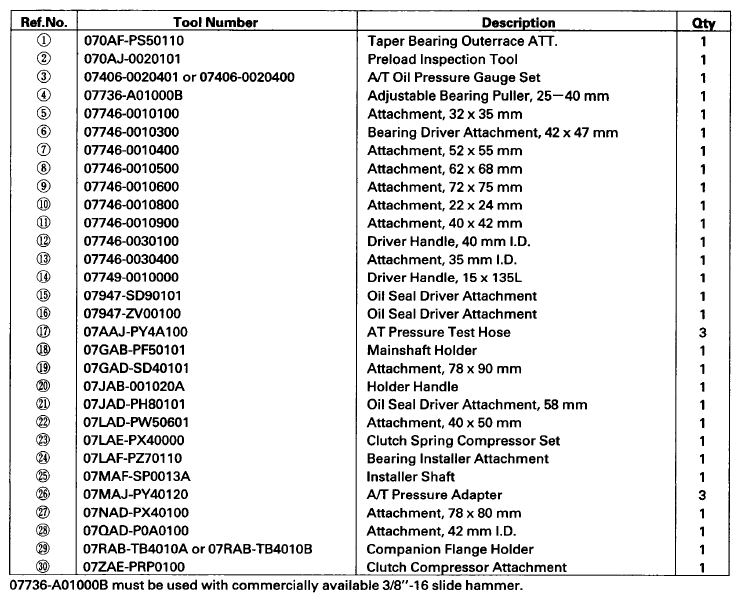

Fig 1: Special Tools Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

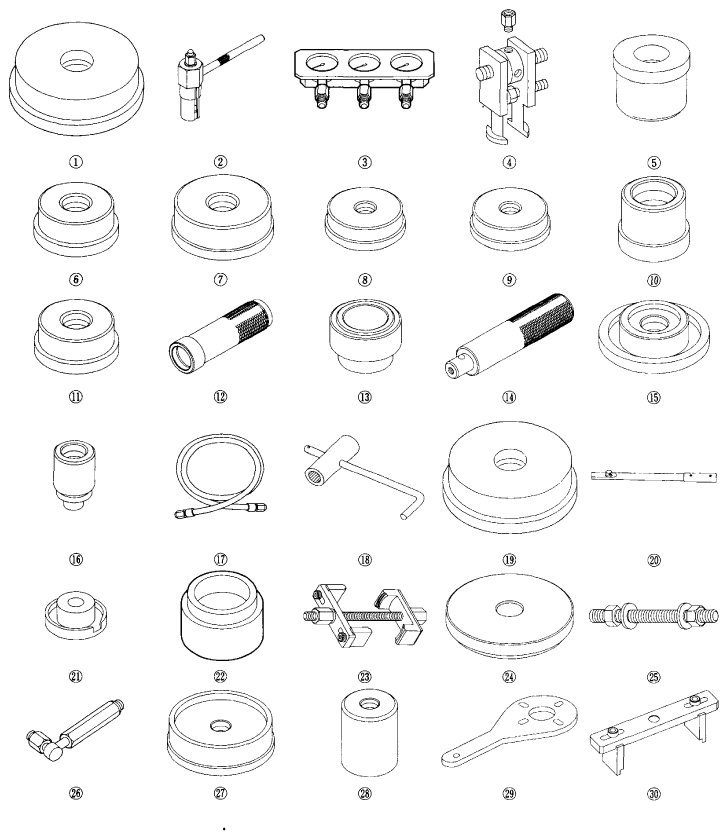

Fig 2: Special Tools Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
