Relays And Control Unit Locations: Dashboard

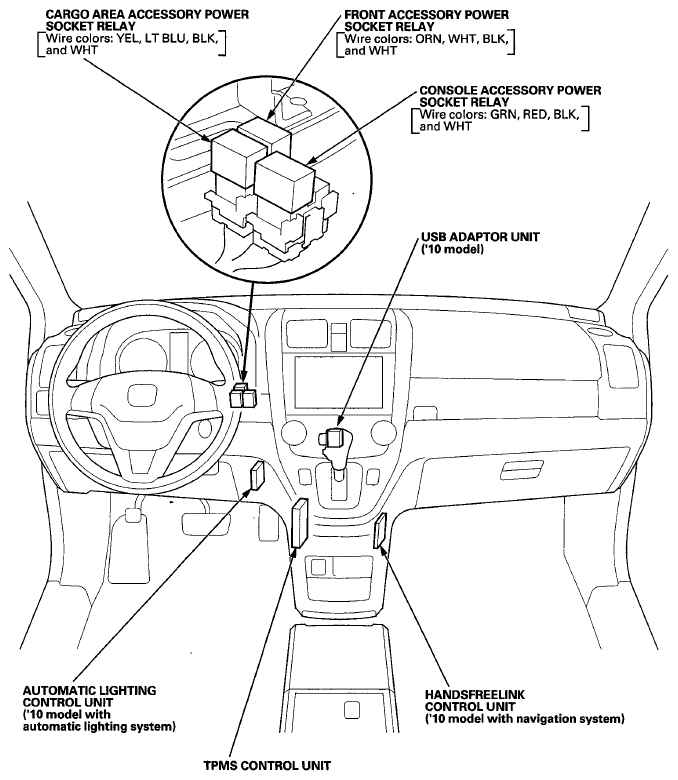

Fig 1: Identifying Dashboard Relay And Control Unit Locations (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

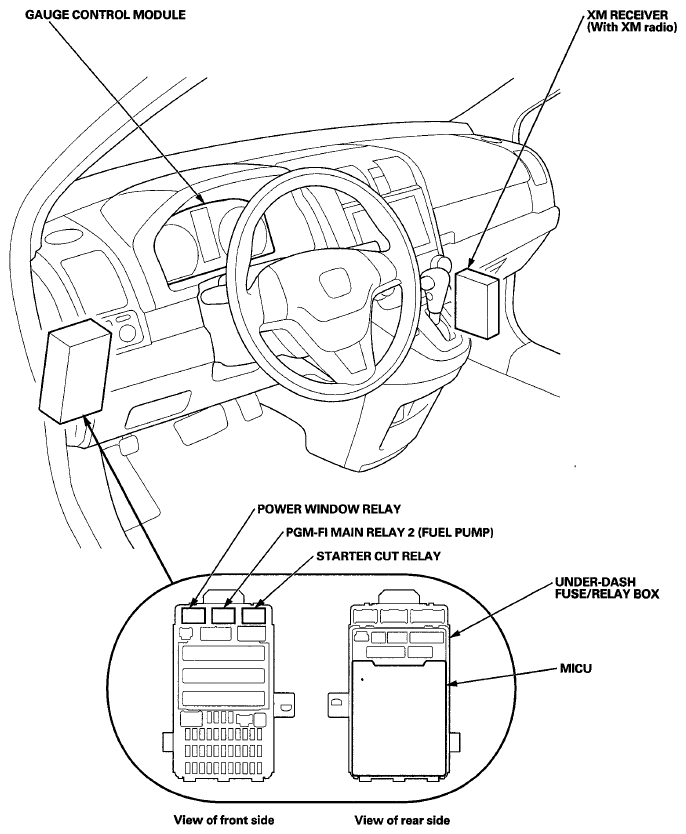

Fig 2: Identifying Dashboard Relay And Control Unit Locations (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

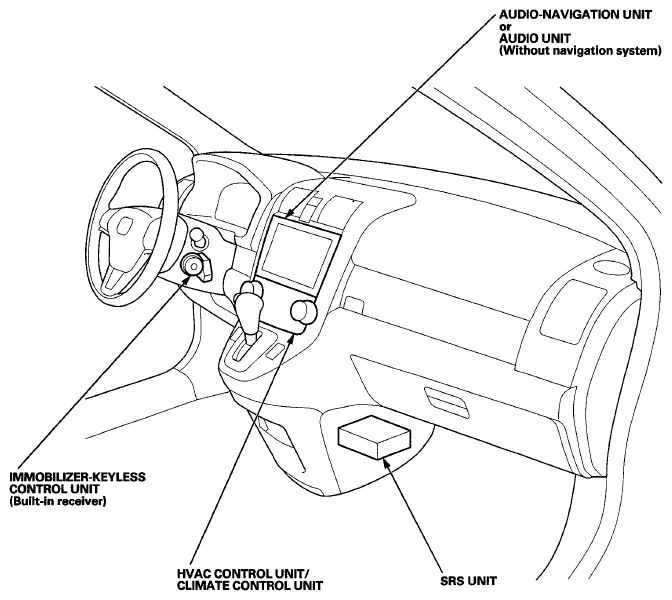

Fig 3: Identifying Dashboard Relay And Control Unit Locations (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
