Fuel Pump Control Module Replacement

  1. Remove the left trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
  2. Disconnect the fuel pump control module connector (A) and clip (B).

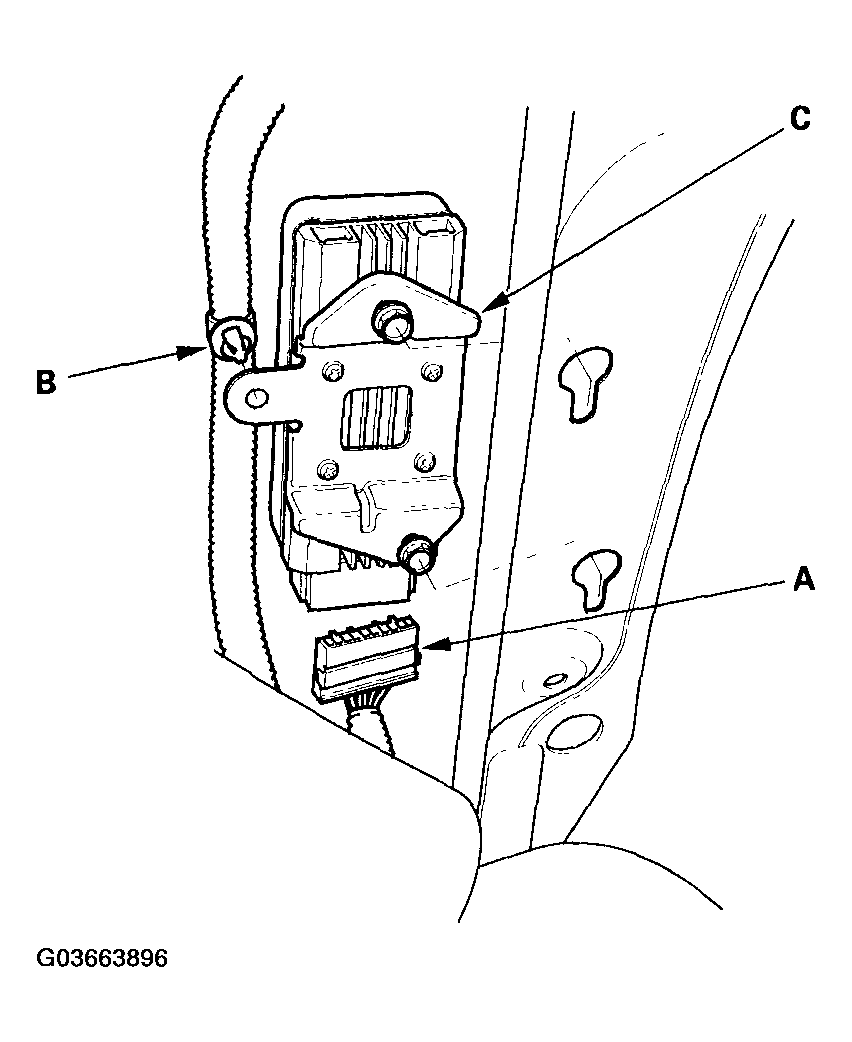

    Fig 1: Disconnecting Fuel Pump Control Module Connector (A) And Clip (B)
    G03663896Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pump control module bracket (C).
  4. Remove the fuel pump control module (A).

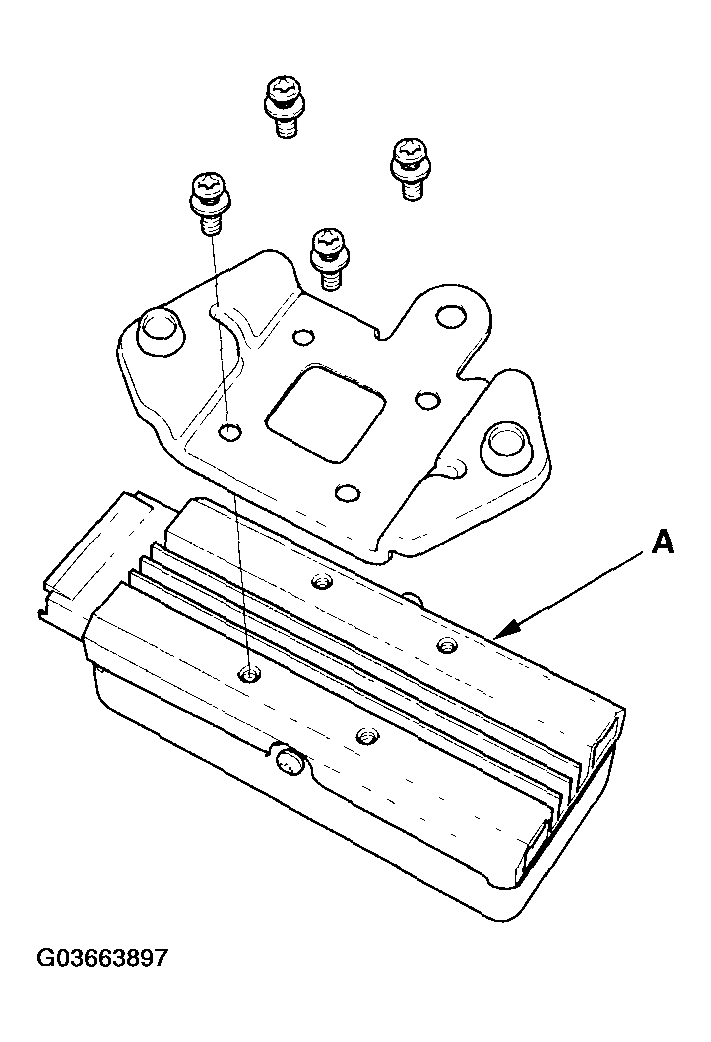

    Fig 2: Removing Fuel Pump Control Module (A)
    G03663897Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the module in the reverse order of removal.
