DTC P0756: Shift Solenoid Valve B Stuck OFF: Notes

Fig 1: Shift Solenoid Valve B - System Diagram (Stuck OFF)

G04817075

Fig 2: Gear Position Graph

G04816633

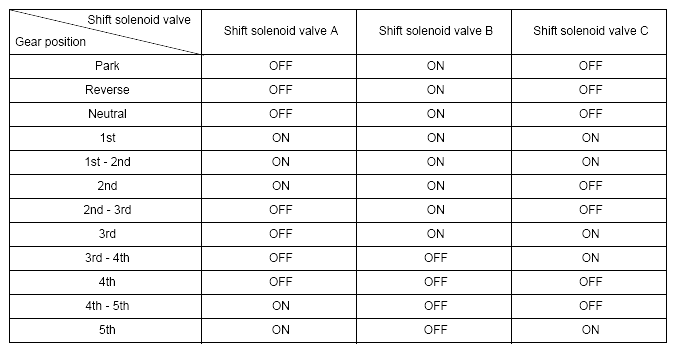

Shift solenoid valve driving signal combination table

Fig 3: Shift Solenoid Valve And Gear Specification Chart

G04823965
