Switch Test/Replacement

Remove the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).
Disconnect the 6P connector from the seat heater switch (A).

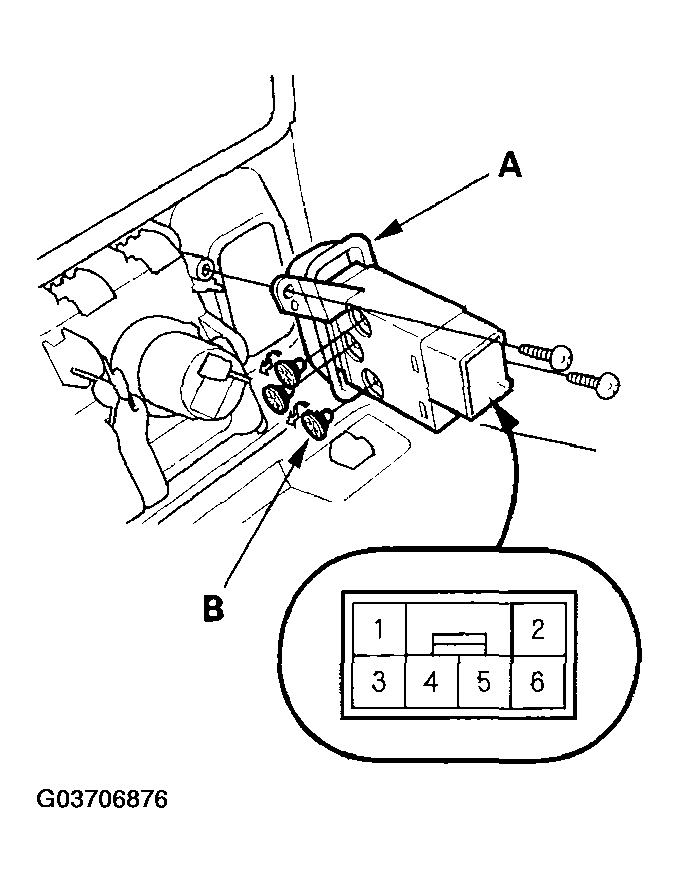

Fig 1: Disconnecting 6P Connector From Seat Heater Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the switch.
Check for continuity between the terminals in each switch position according to the table shown in Fig 2 .

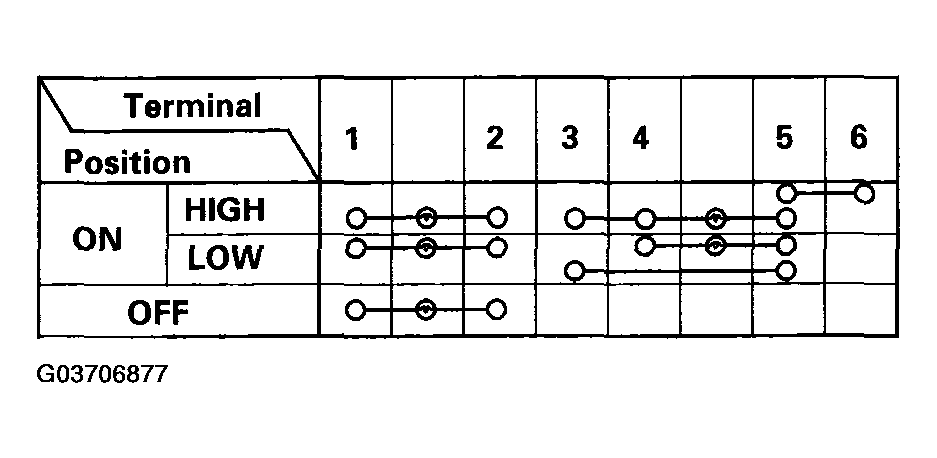

Fig 2: Checking Continuity Between Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity check is not as specified, replace the illumination bulbs (B) or the switch.
