XM Receiver Connector End View
XM Receiver Connector End View

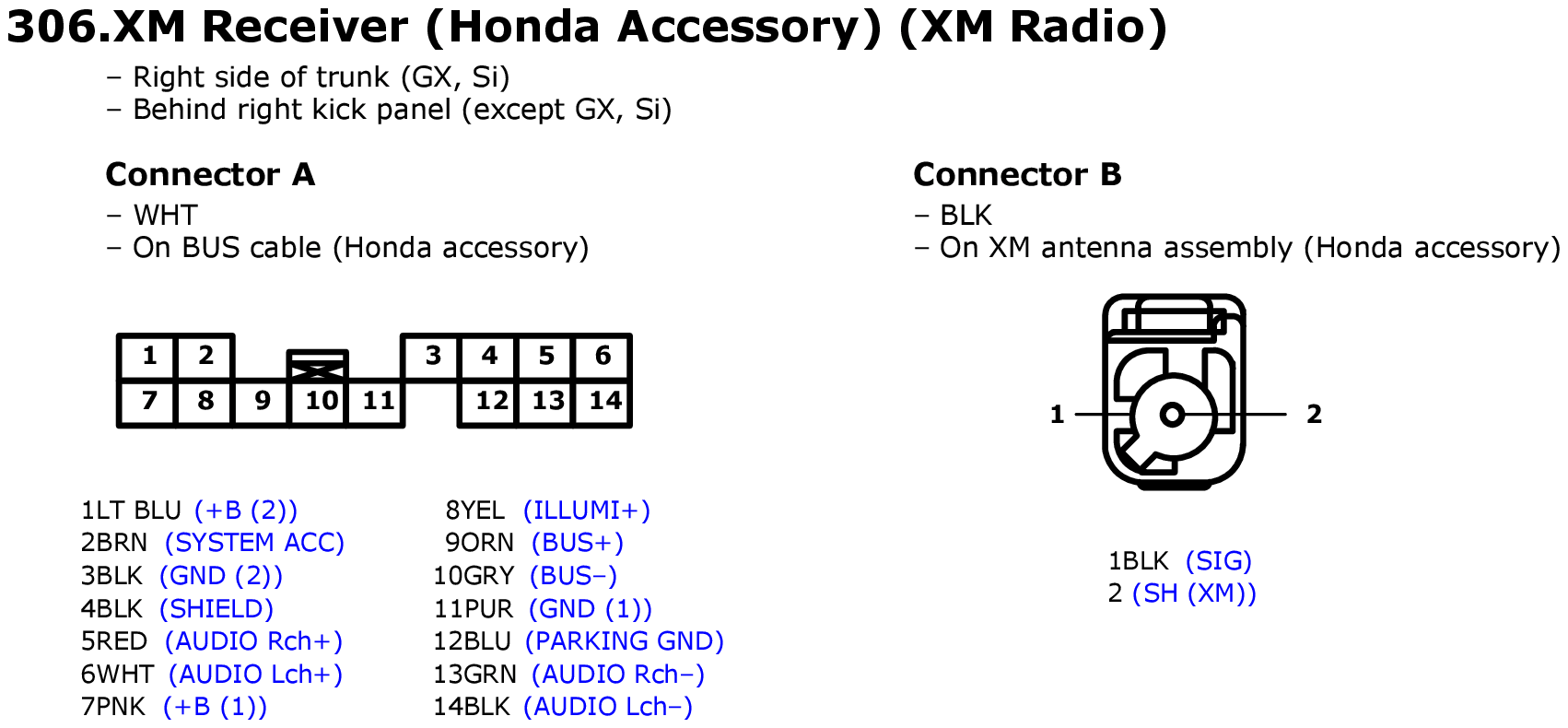

Fig 1: XM Receiver Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
