TPMS Control Unit (USA) Connector End View
TPMS Control Unit (USA) Connector End View

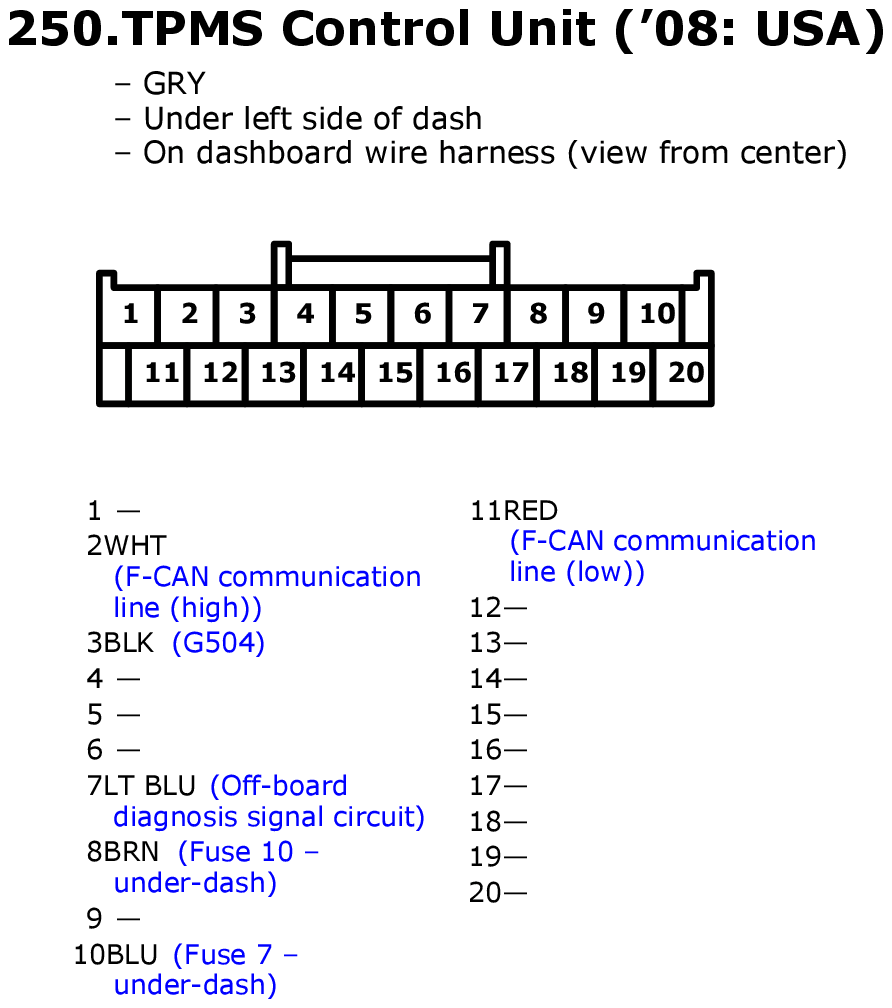

Fig 1: TPMS Control Unit (USA) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

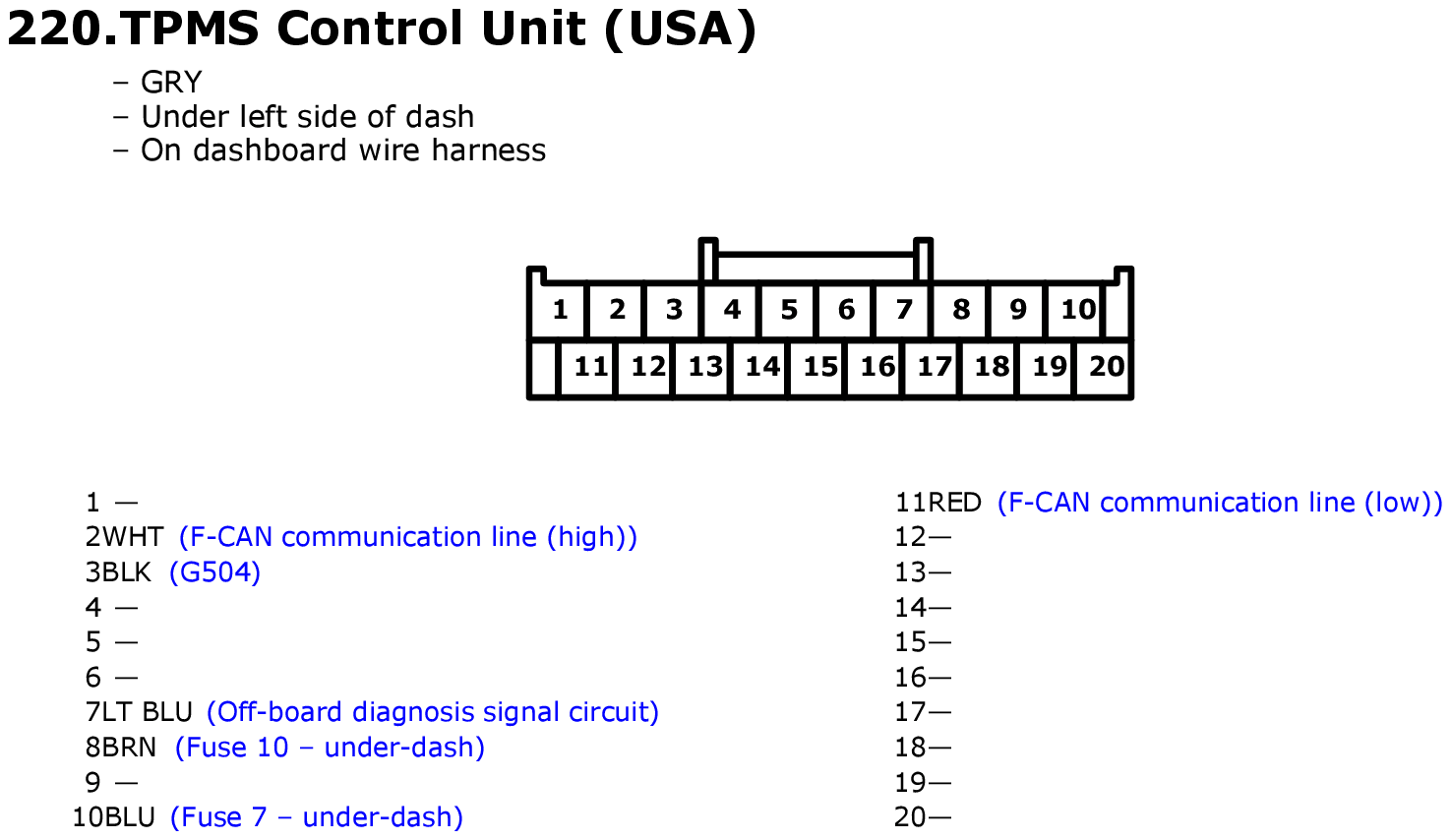

Fig 1: TPMS Control Unit (USA) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
