SRS Unit Connector End View

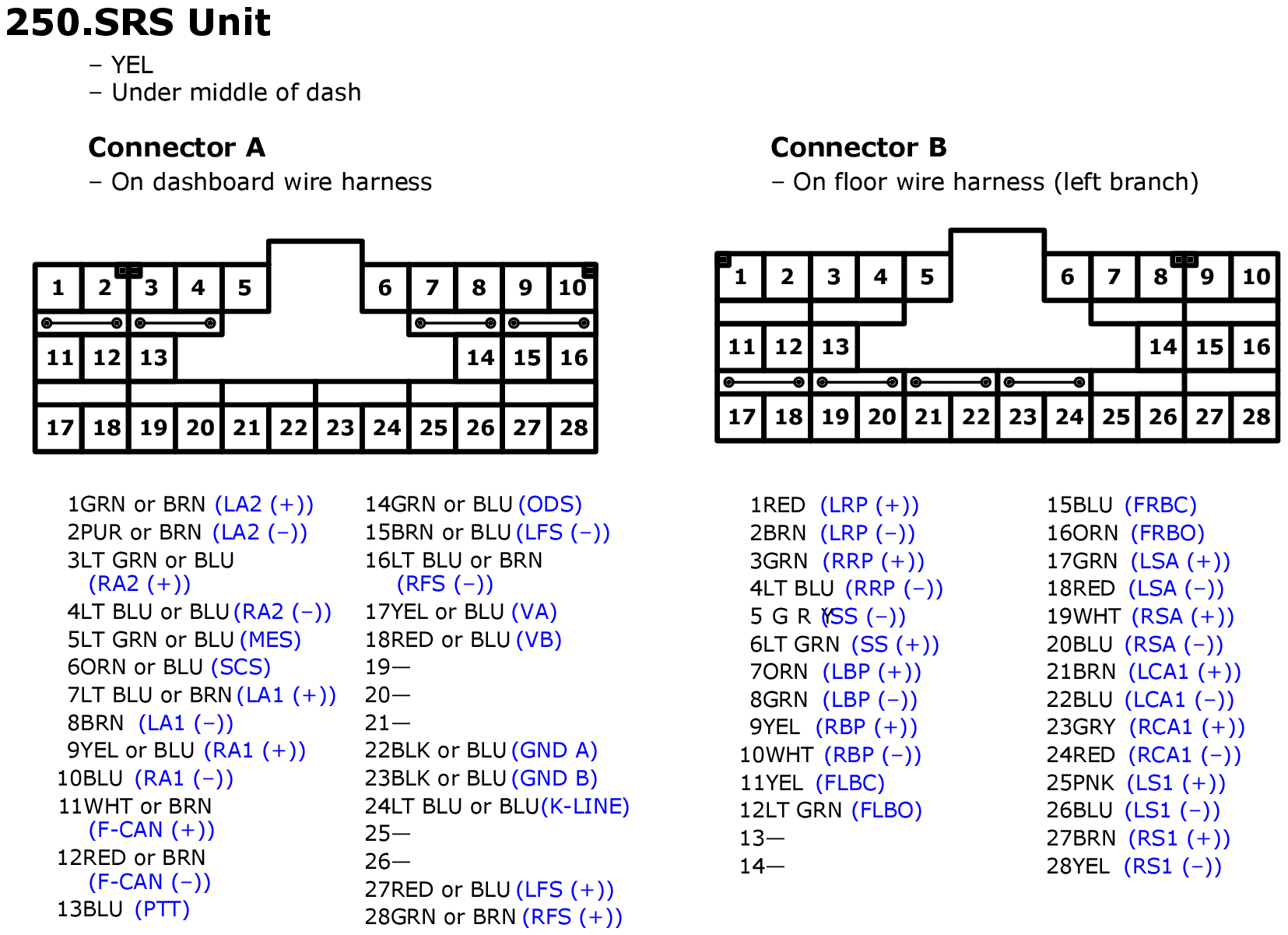

Fig 1: SRS Unit Connector End View
GHHW1169Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: SRS Unit Connector End View
GHHW1446Courtesy of AMERICAN HONDA MOTOR CO., INC.

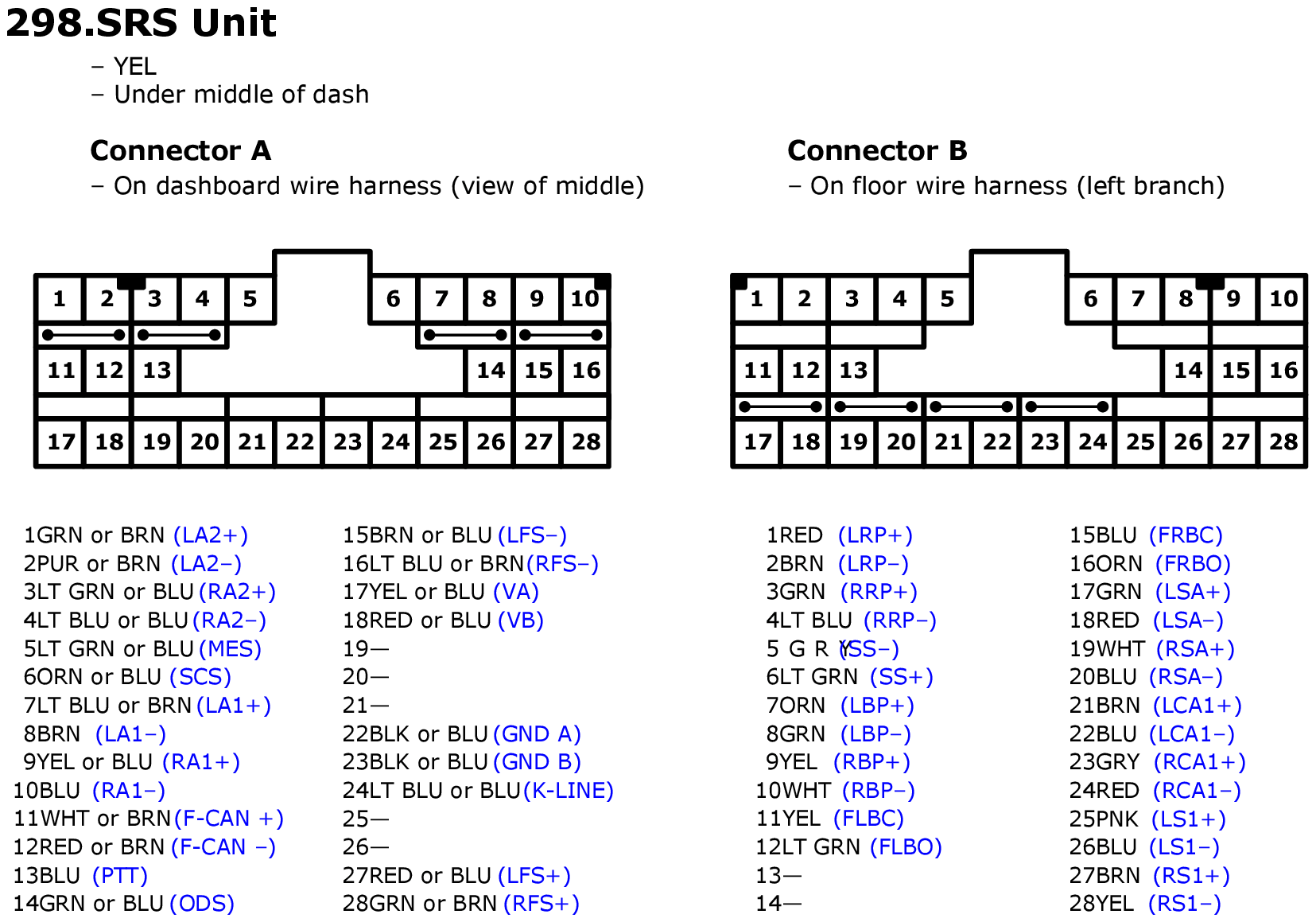

Fig 1: SRS Unit Connector End View
GHHW1772Courtesy of AMERICAN HONDA MOTOR CO., INC.

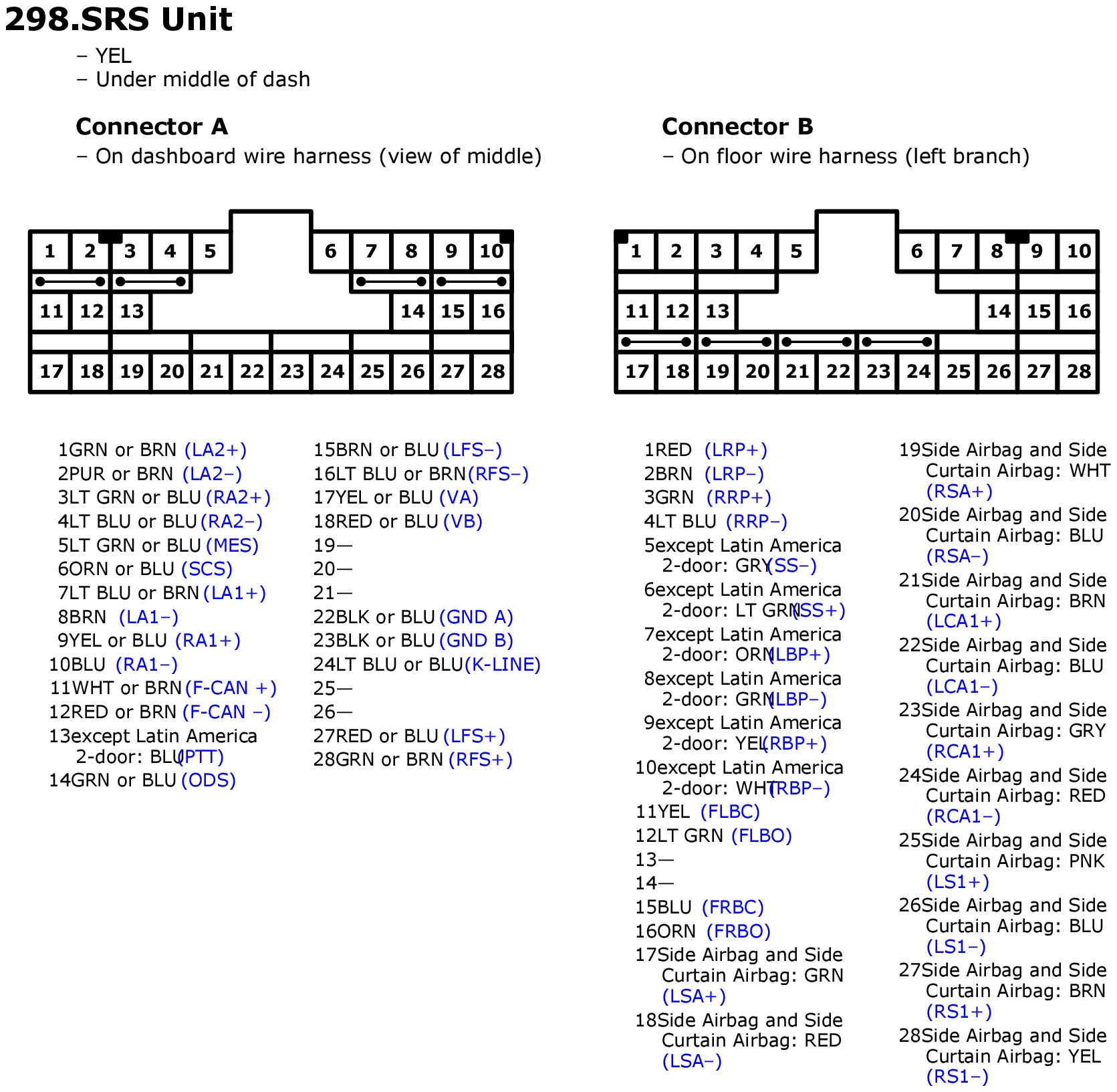

Fig 1: SRS Unit Connector End View
GHHW2076Courtesy of AMERICAN HONDA MOTOR CO., INC.

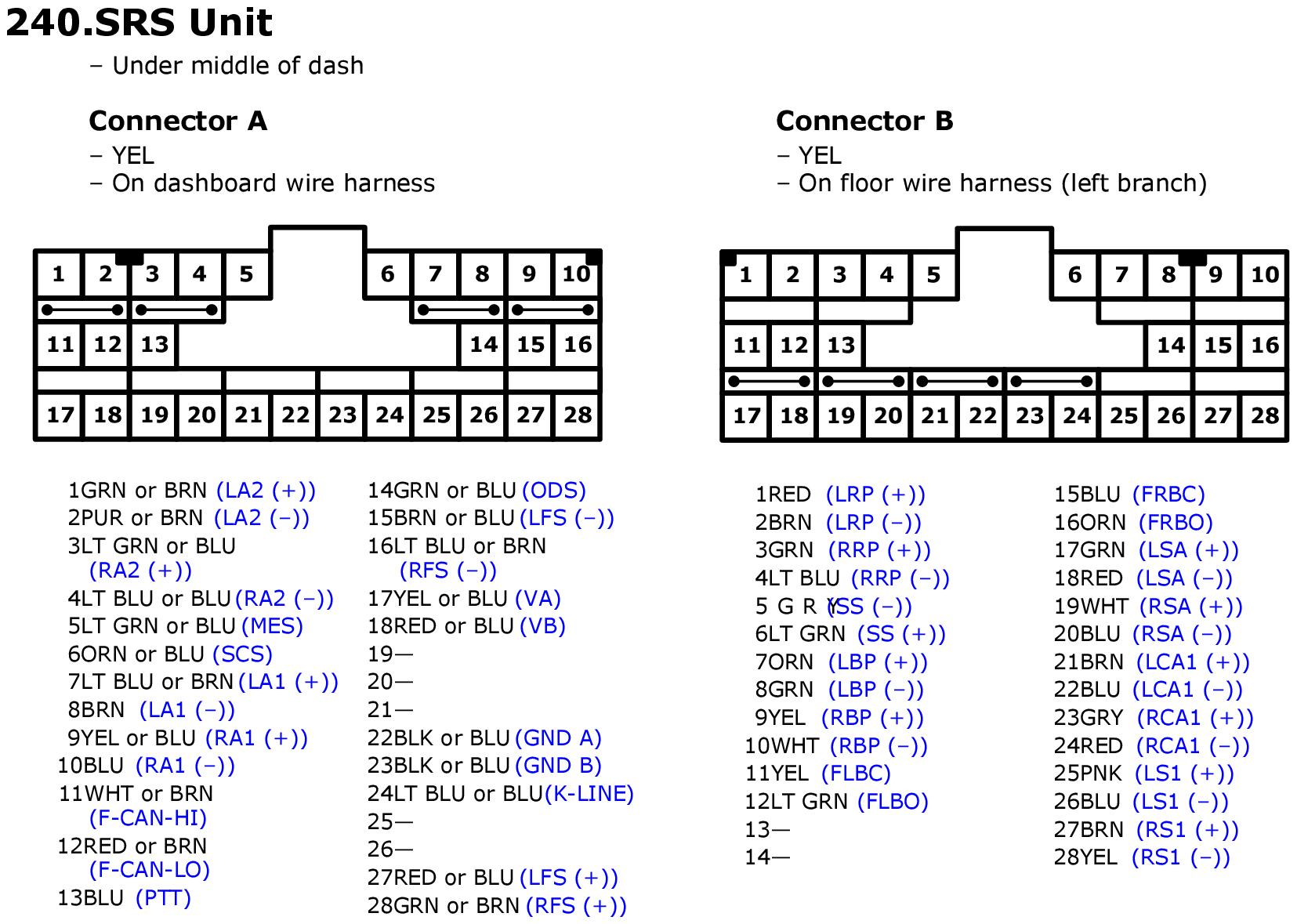

Fig 1: SRS Unit Connector End View
GHHW2328Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: SRS Unit Connector End View
GHHW2592Courtesy of AMERICAN HONDA MOTOR CO., INC.
