Right Front Wheel Speed Sensor Connector End View
Right Front Wheel Speed Sensor Connector End View

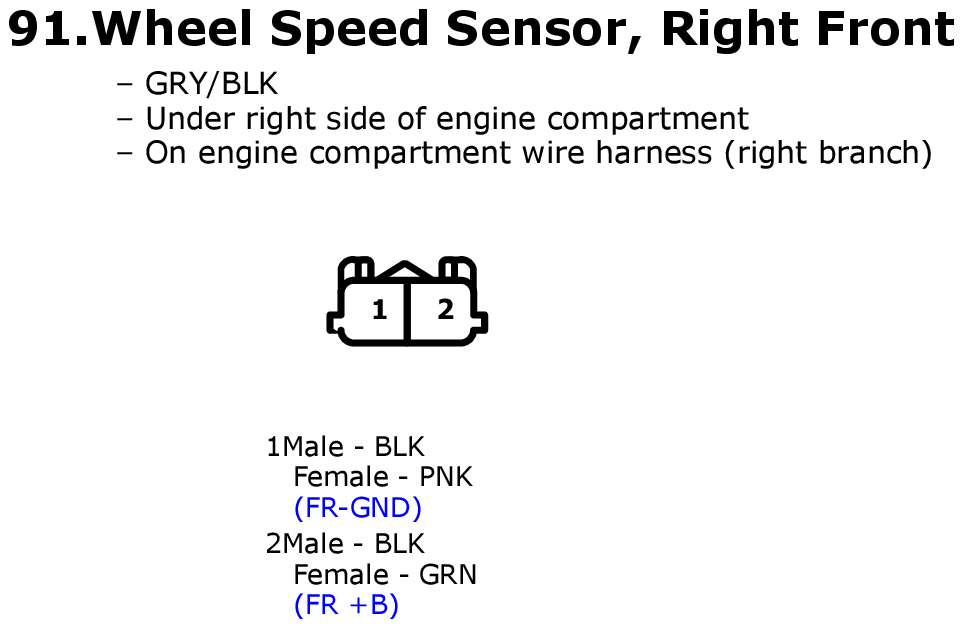

Fig 1: Right Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

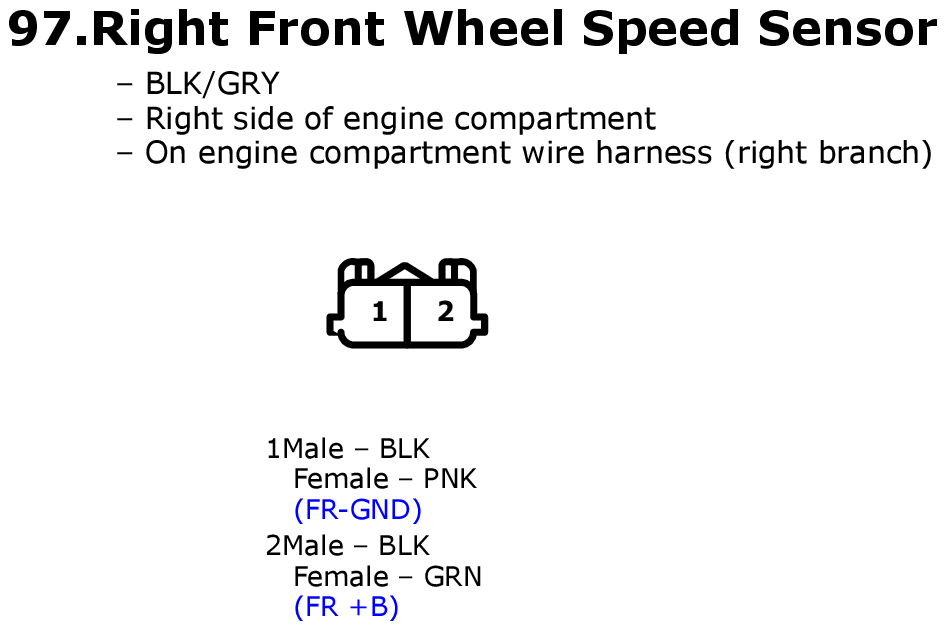

Fig 1: Right Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Right Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
