Power Window Master Switch Connector End View

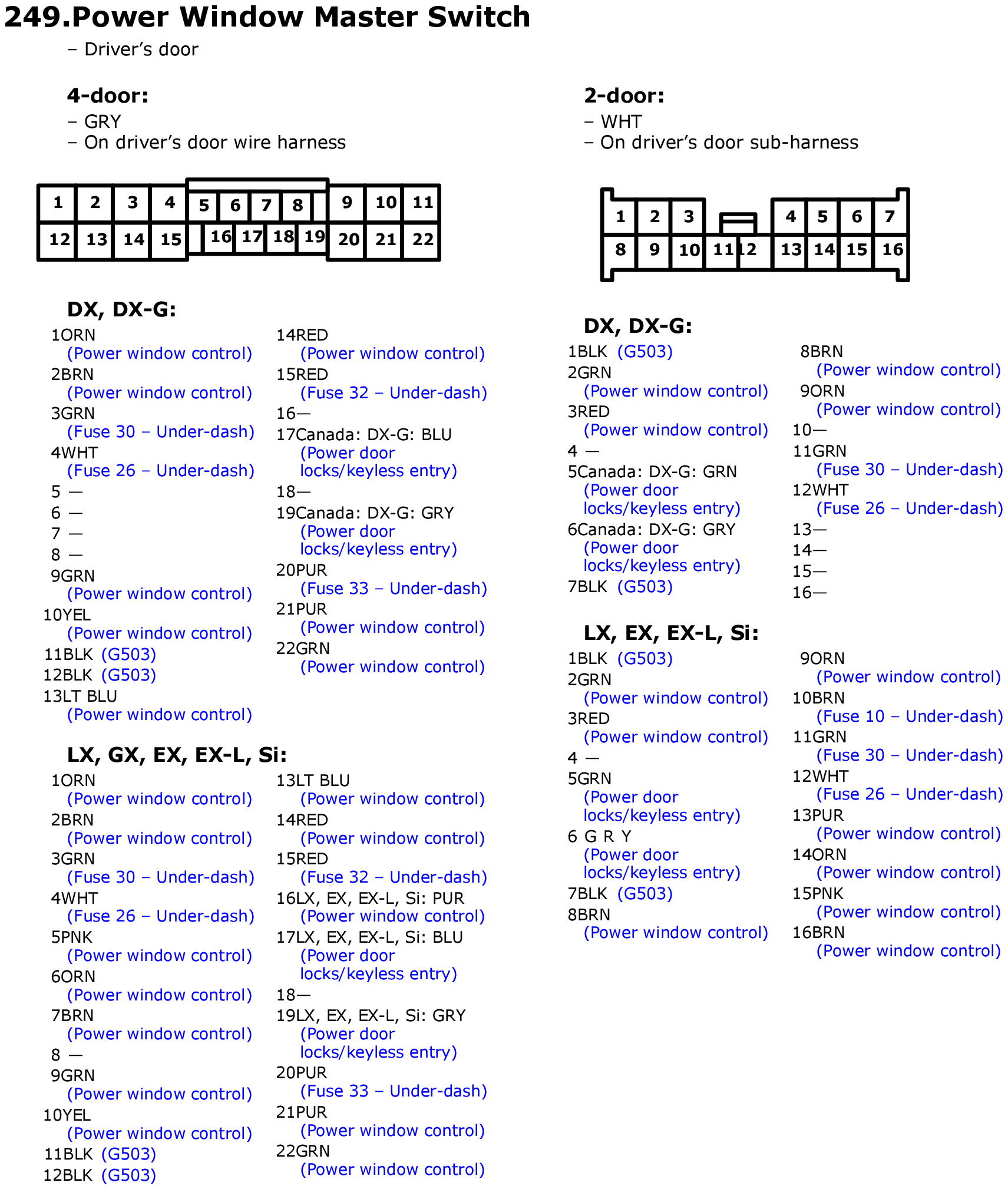

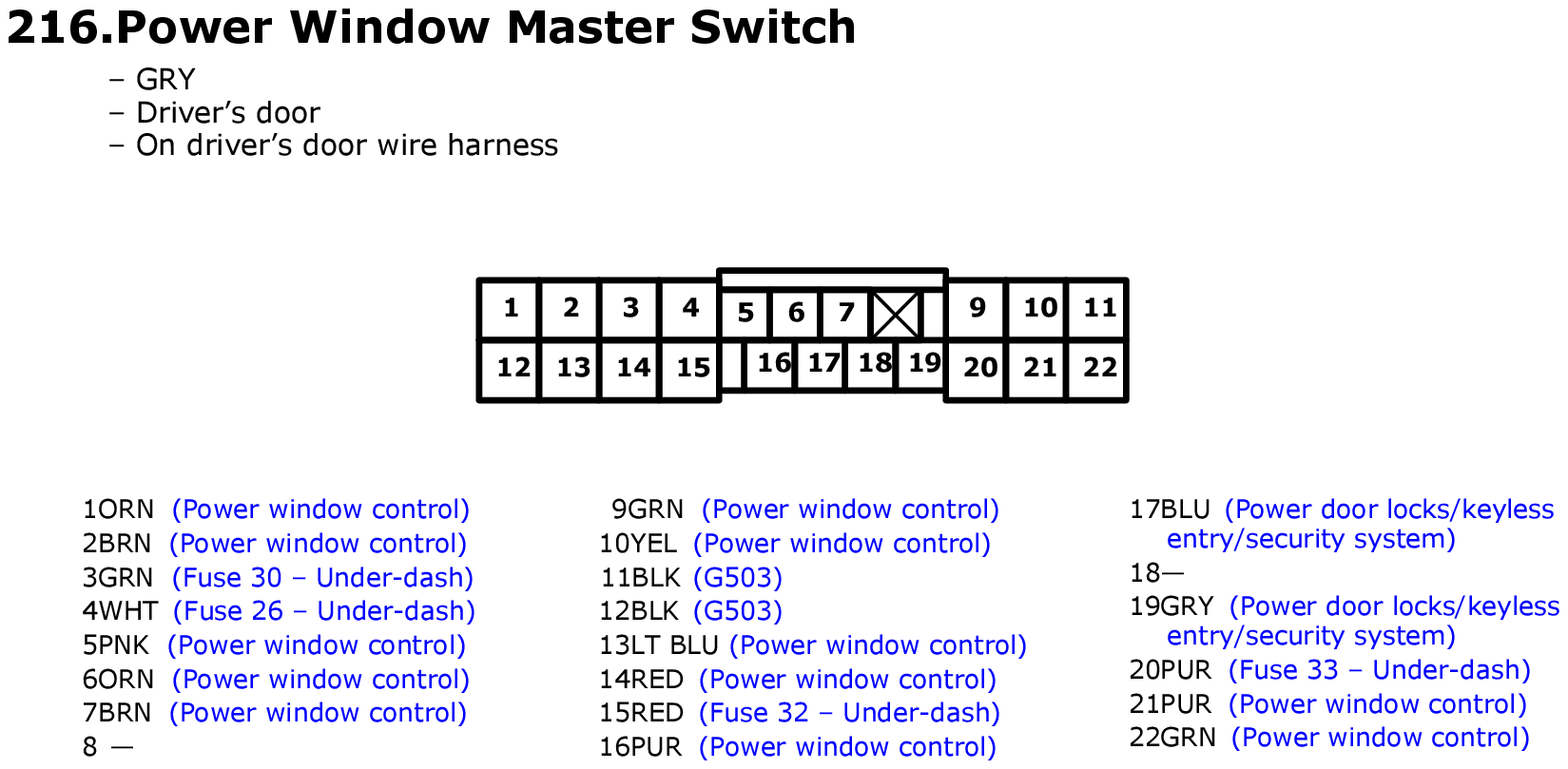

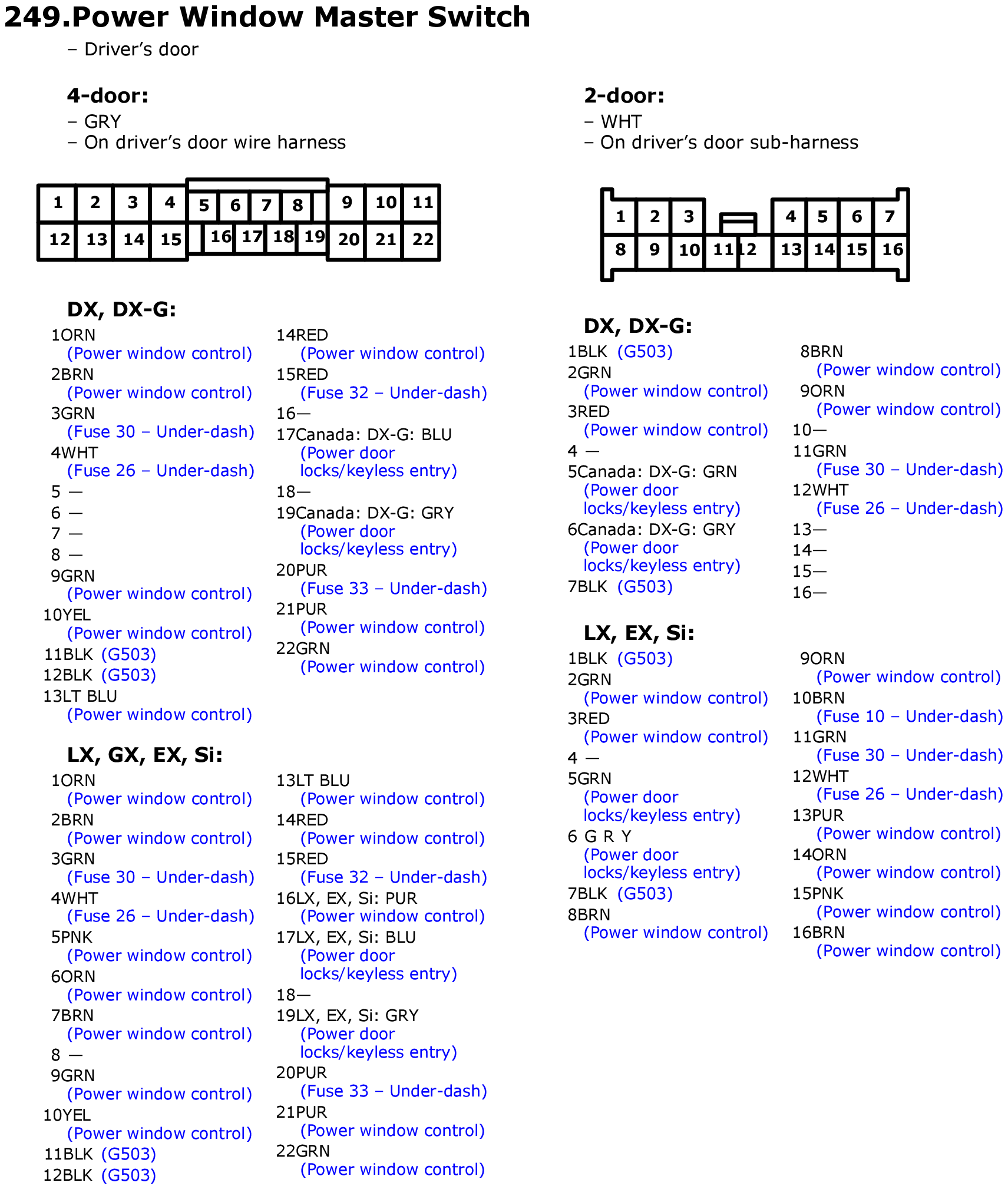

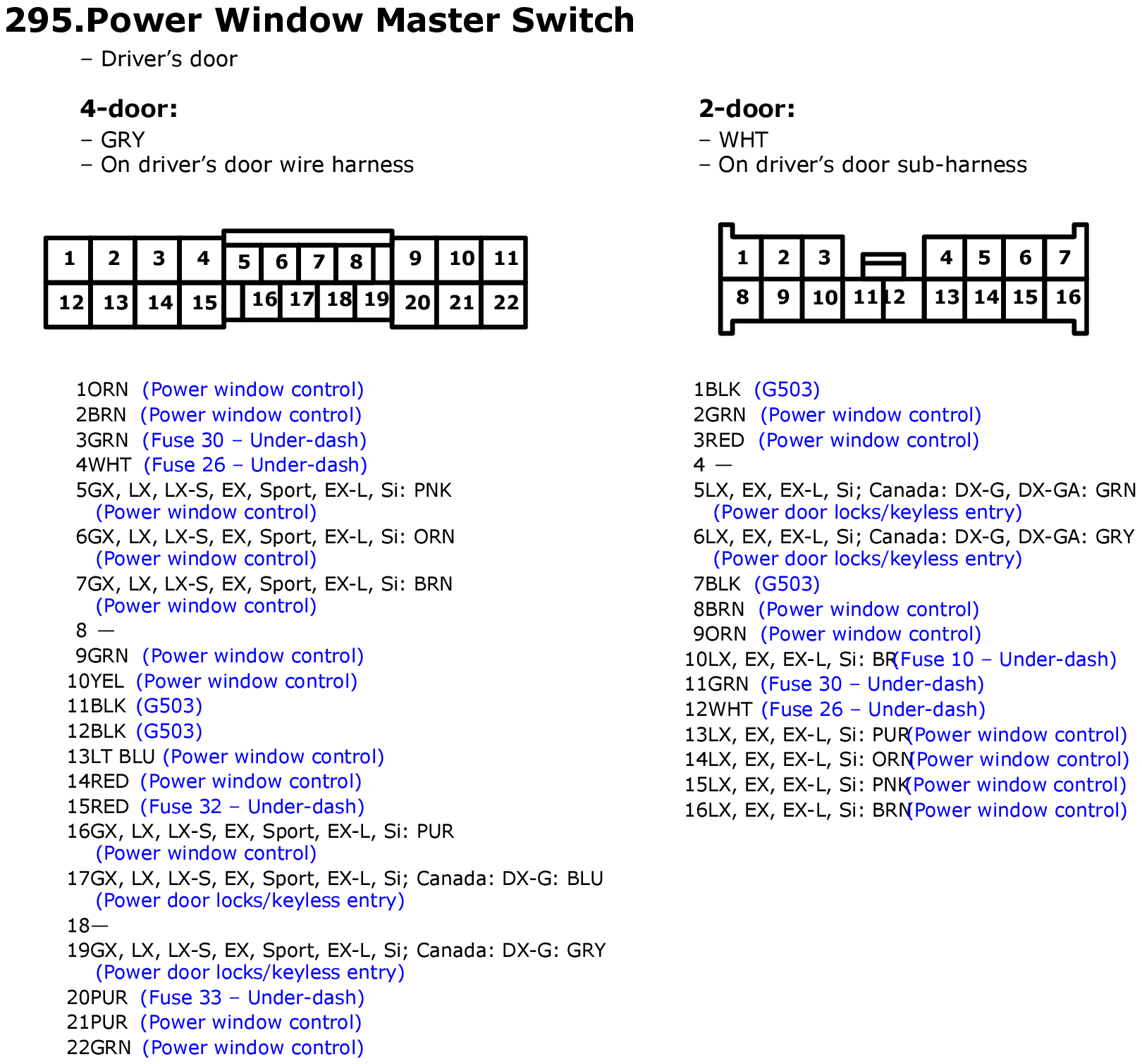

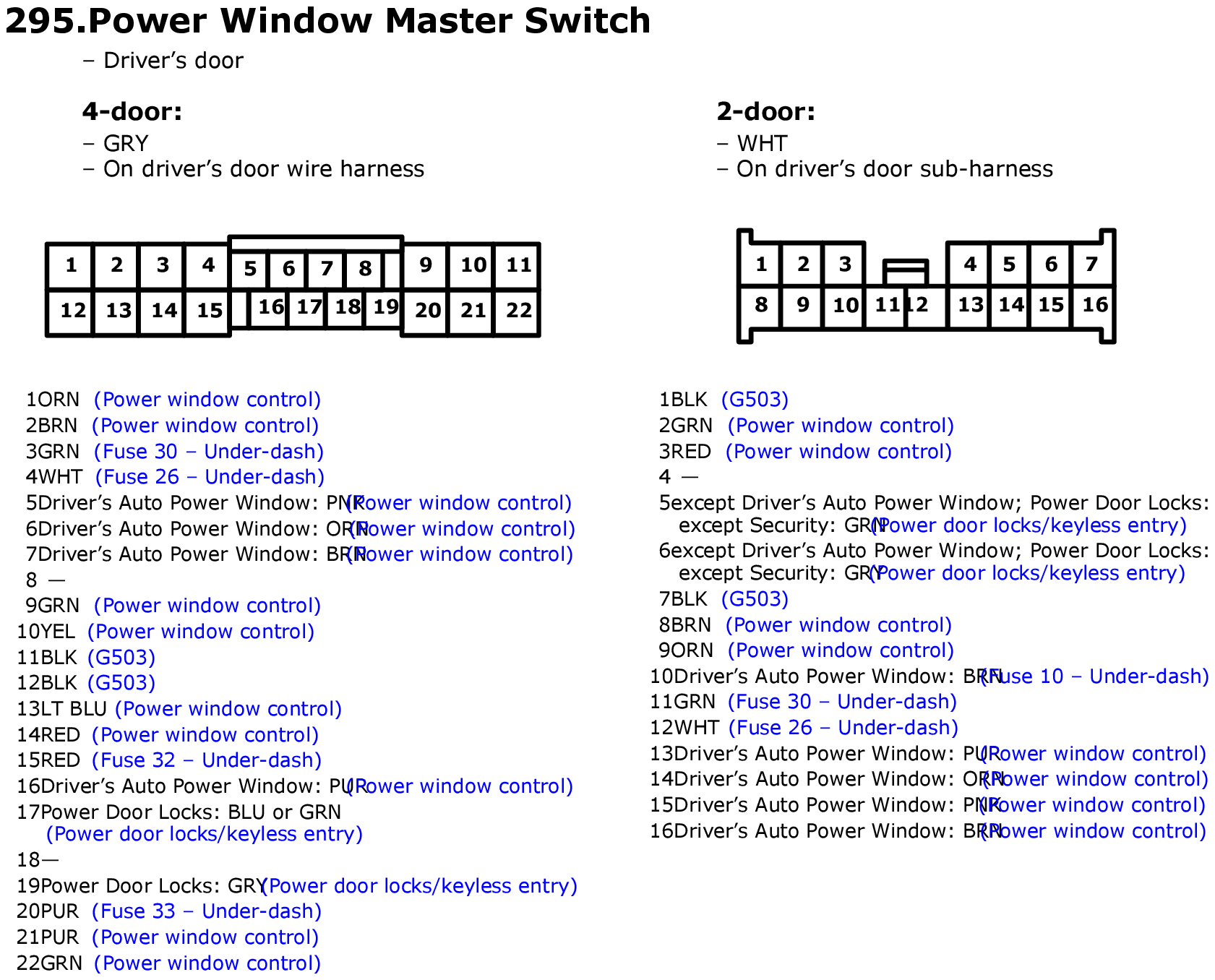

Fig 1: Power Window Master Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Power Window Master Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Power Window Master Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Power Window Master Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Power Window Master Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Power Window Master Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
