ODS Unit Connector End View

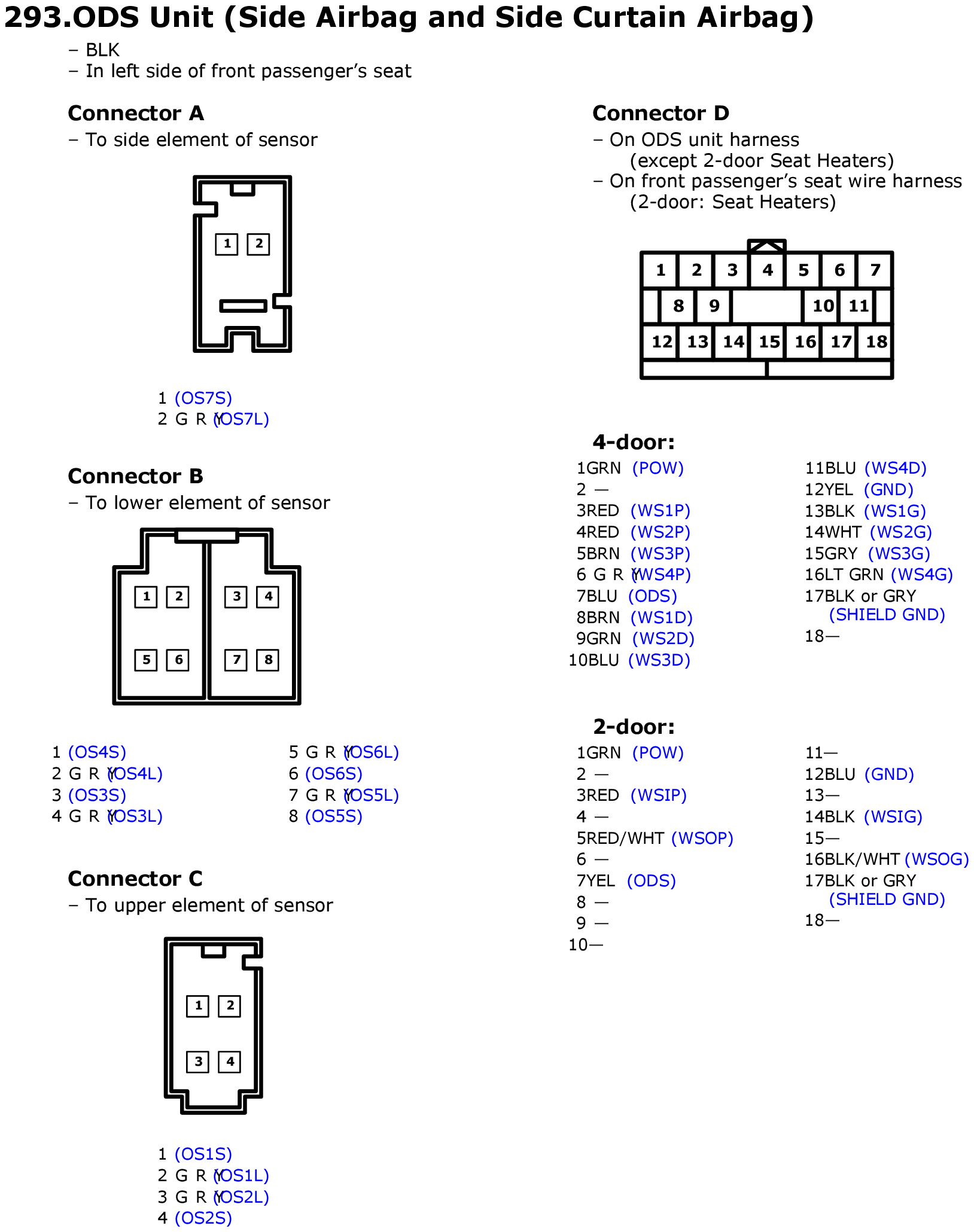

Fig 1: ODS Unit Connector End View
GHHW2071Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: ODS Unit Connector End View
GHHW1165Courtesy of AMERICAN HONDA MOTOR CO., INC.

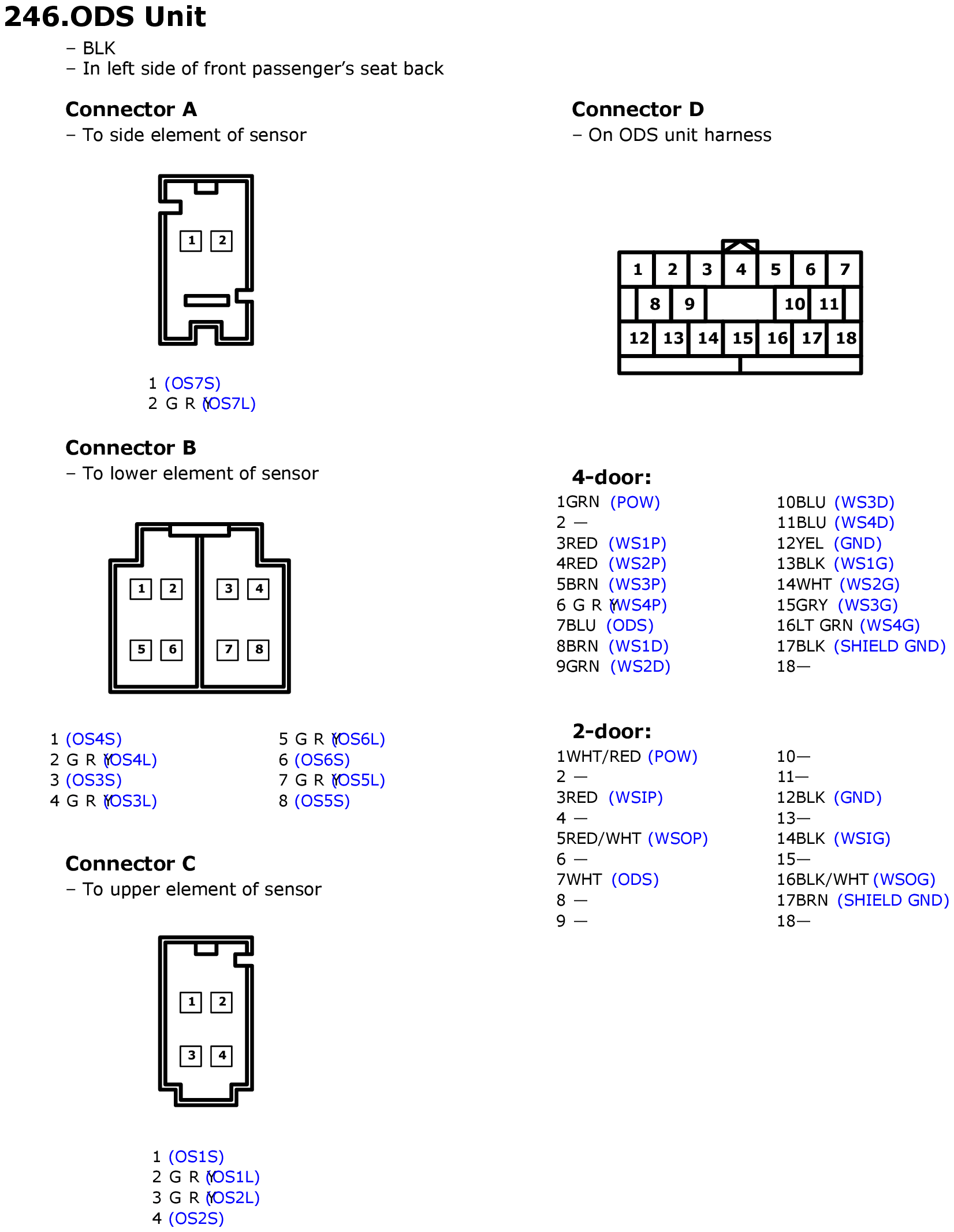

Fig 1: ODS Unit Connector End View
GHHW1442Courtesy of AMERICAN HONDA MOTOR CO., INC.

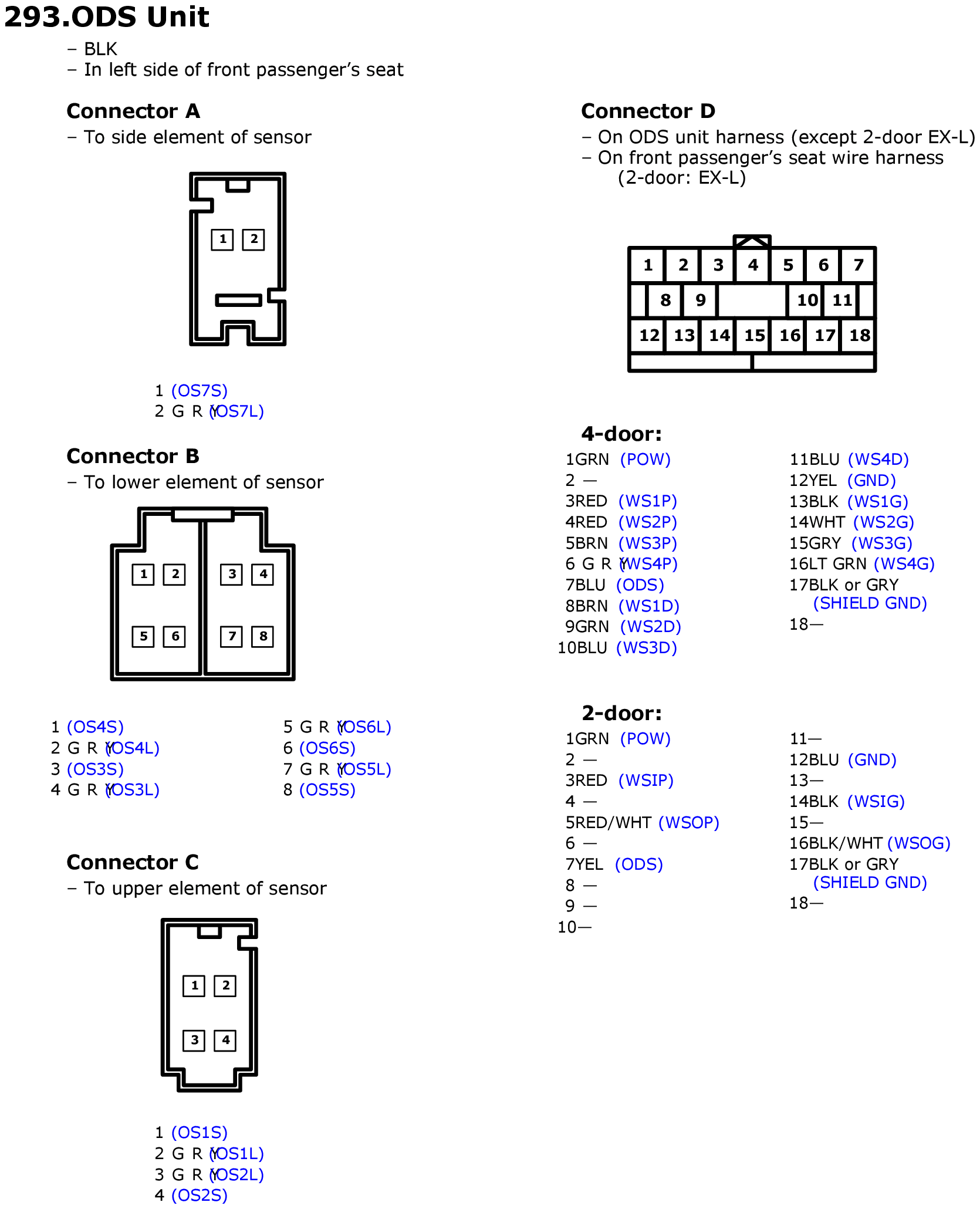

Fig 1: ODS Unit Connector End View
GHHW1767Courtesy of AMERICAN HONDA MOTOR CO., INC.

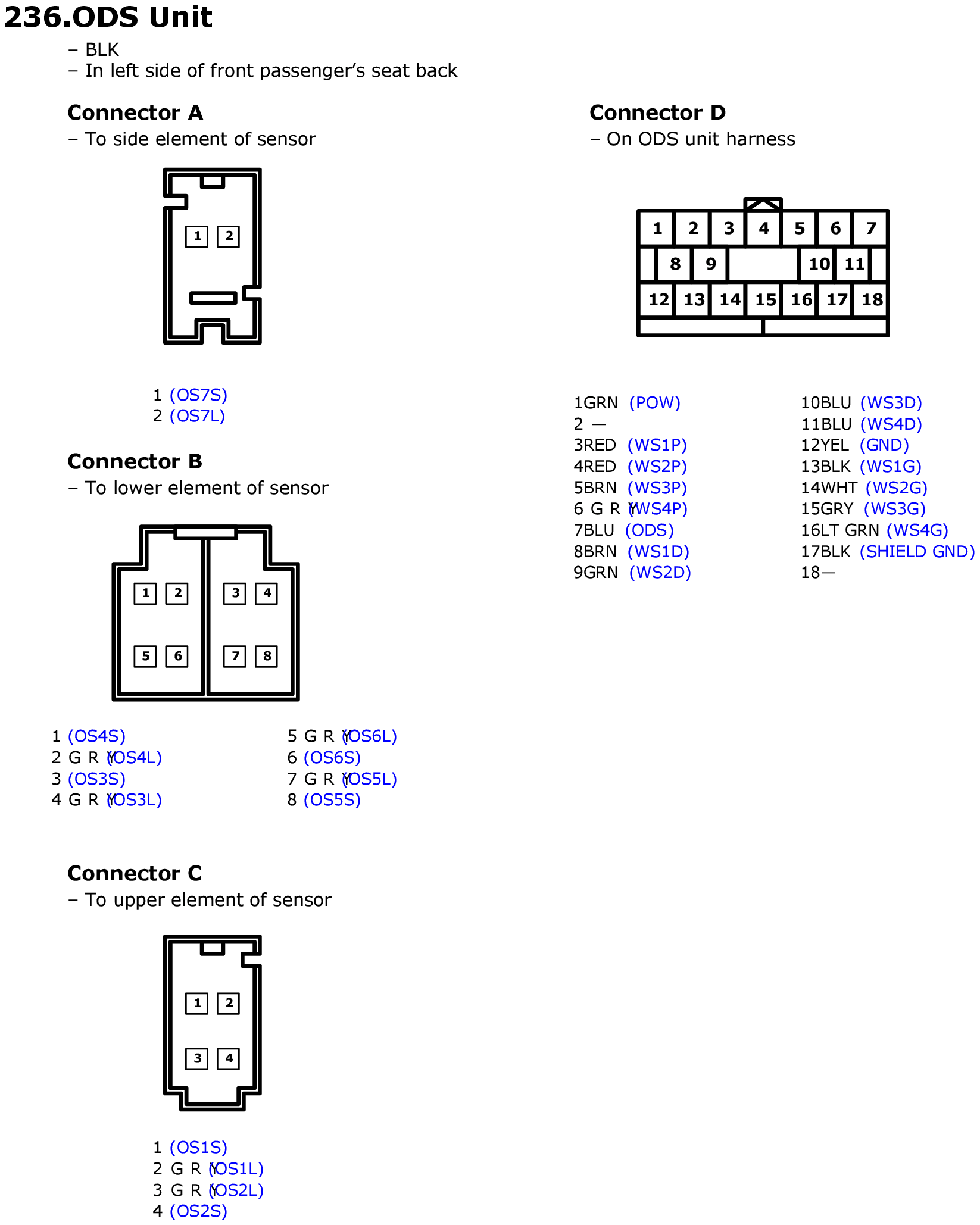

Fig 1: ODS Unit Connector End View
GHHW2324Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: ODS Unit Connector End View
GHHW2585Courtesy of AMERICAN HONDA MOTOR CO., INC.
