Motor Angle Sensor Connector End View

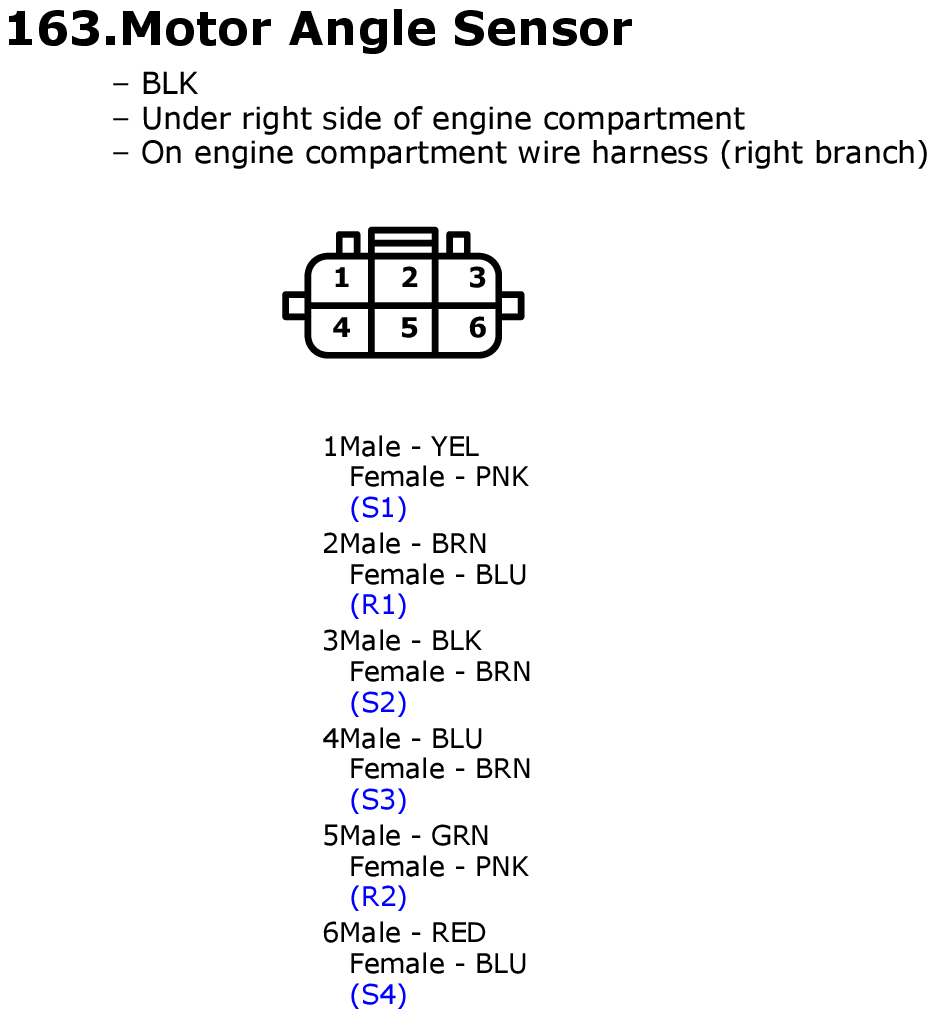

Fig 1: Motor Angle Sensor Connector End View
GHHW2251Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Motor Angle Sensor Connector End View
GHHW2509Courtesy of AMERICAN HONDA MOTOR CO., INC.
