MAF/IAT Sensor Connector End View

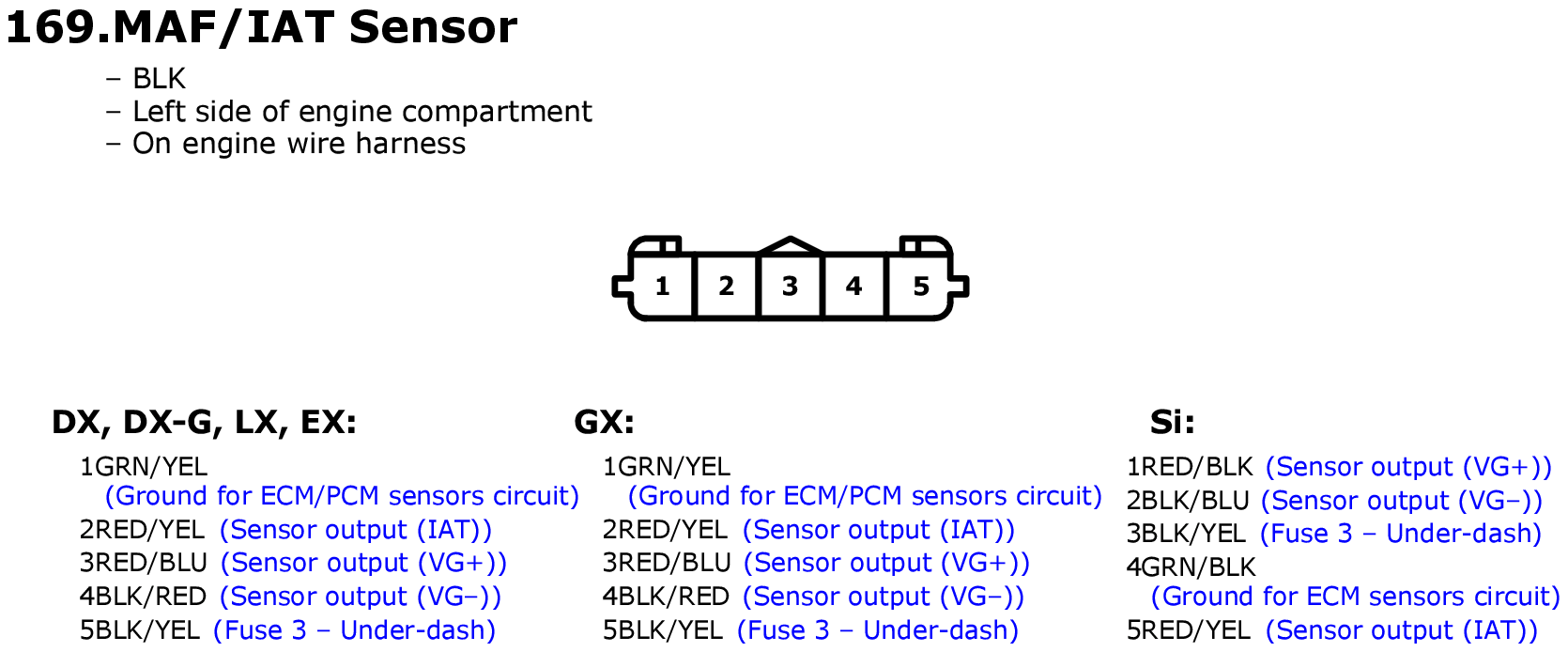

Fig 1: MAF/IAT Sensor Connector End View
GHHW1091Courtesy of AMERICAN HONDA MOTOR CO., INC.

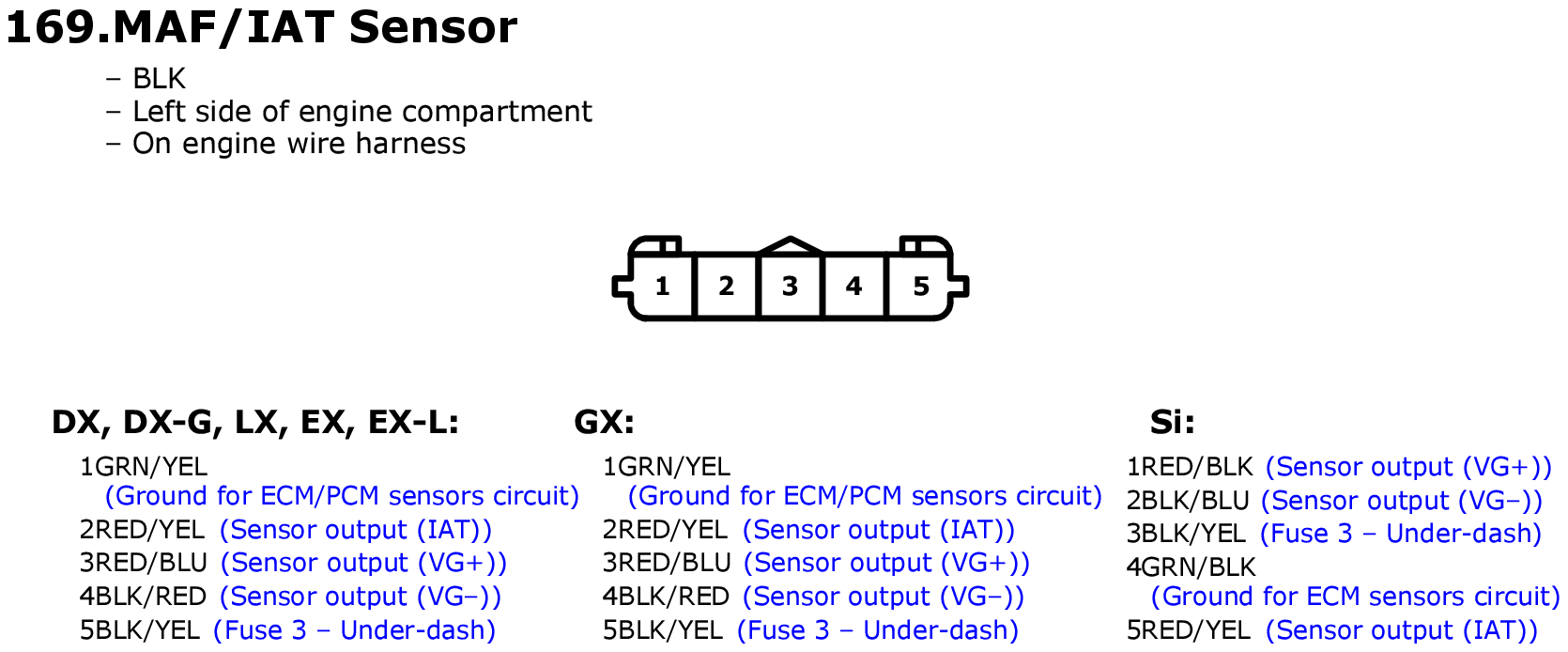

Fig 1: MAF/IAT Sensor Connector End View
GHHW1365Courtesy of AMERICAN HONDA MOTOR CO., INC.

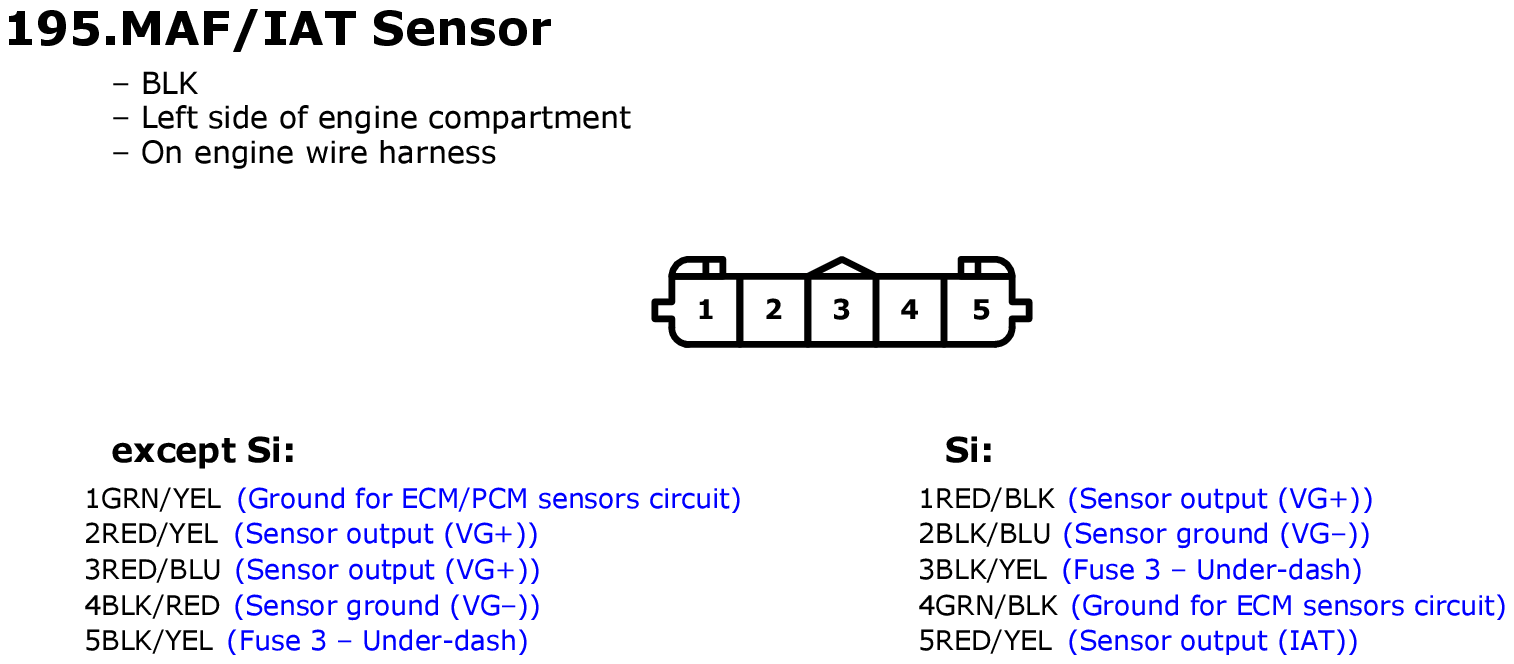

Fig 1: MAF/IAT Sensor Connector End View
GHHW1669Courtesy of AMERICAN HONDA MOTOR CO., INC.

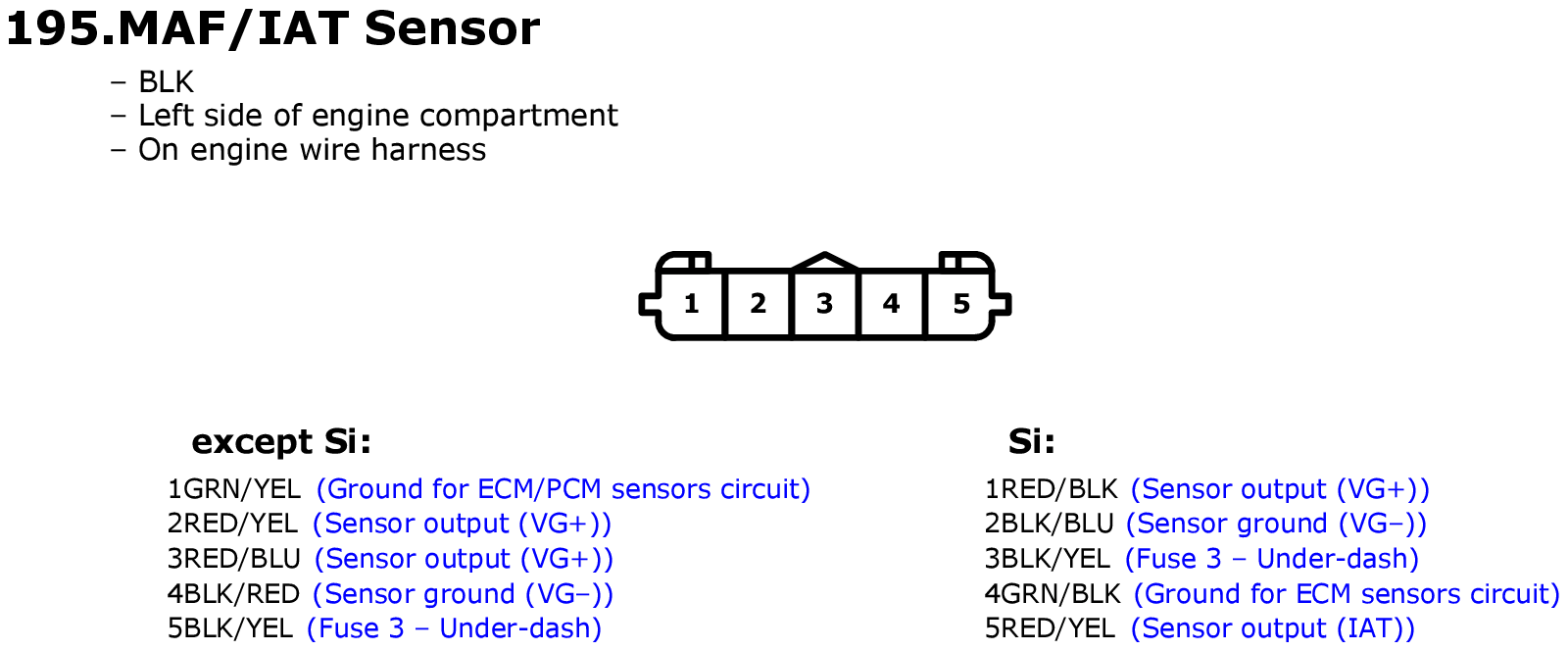

Fig 1: MAF/IAT Sensor Connector End View
GHHW1973Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: MAF/IAT Sensor Connector End View
GHHW2246Courtesy of AMERICAN HONDA MOTOR CO., INC.

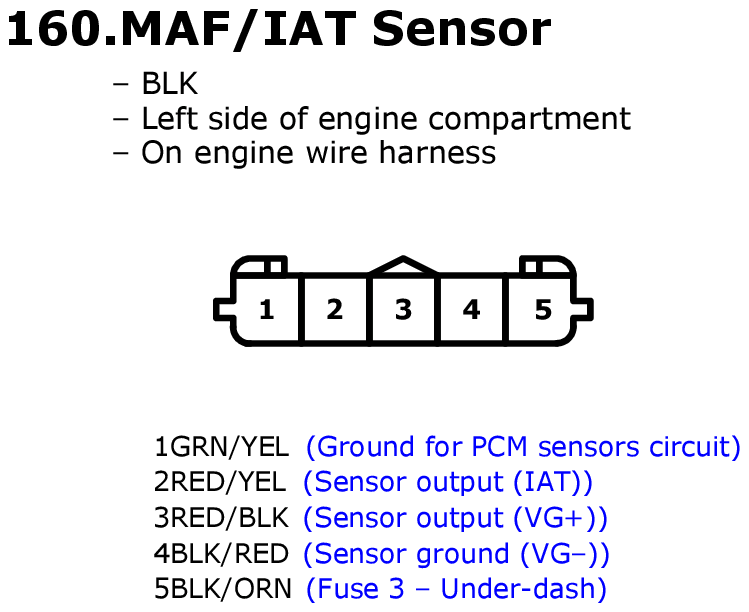

Fig 1: MAF/IAT Sensor Connector End View
GHHW2499Courtesy of AMERICAN HONDA MOTOR CO., INC.
