Left Front Wheel Speed Sensor Connector End View
Left Front Wheel Speed Sensor Connector End View

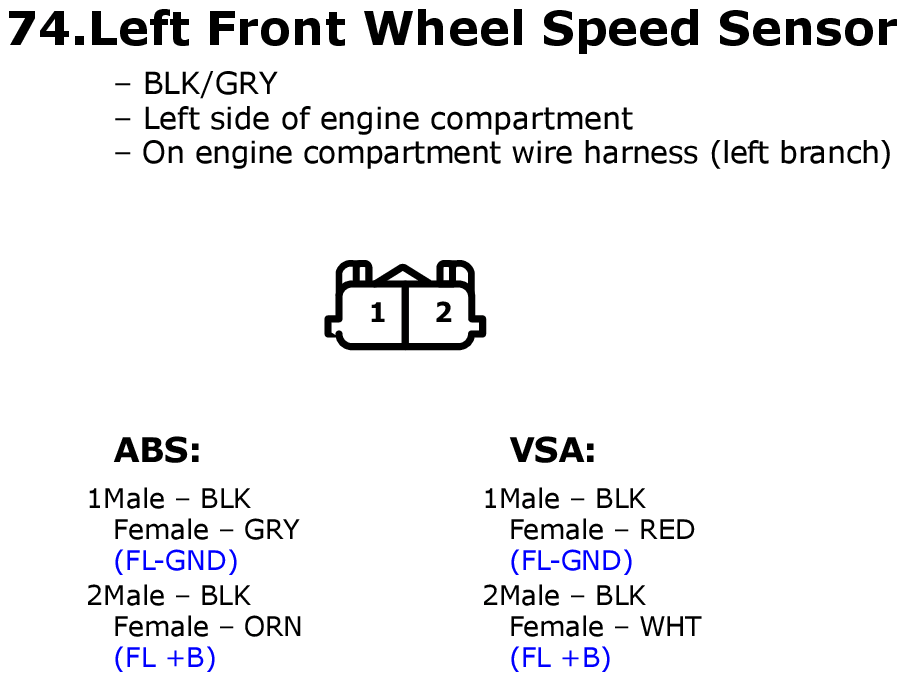

Fig 1: Left Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

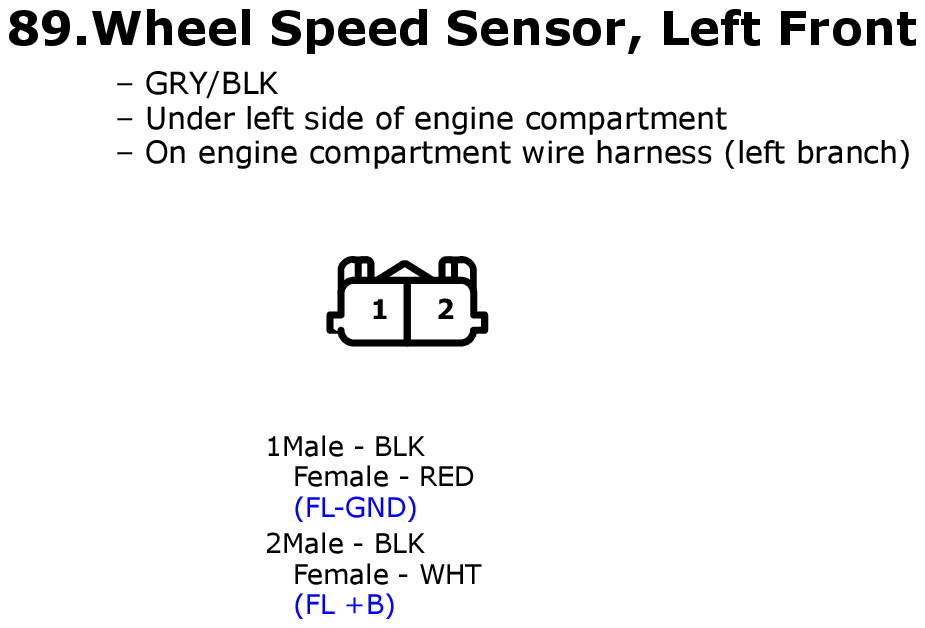

Fig 1: Left Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

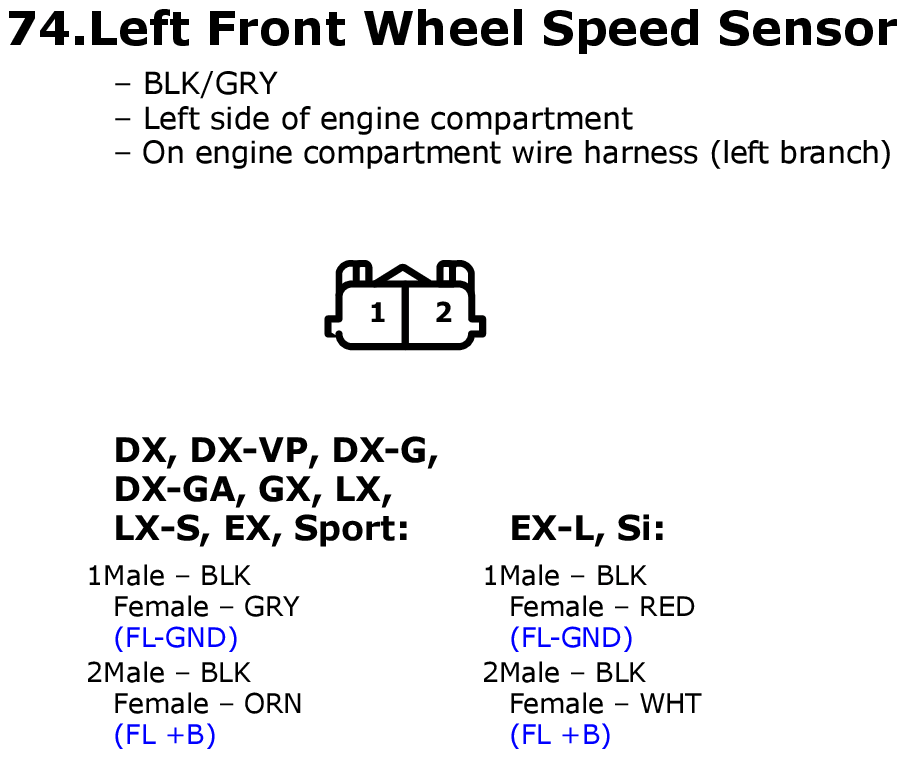

Fig 1: Left Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
