Injector Control Module (PGM-FI System, A/T) Connector End View
Injector Control Module (PGM-FI System, A/T) Connector End View

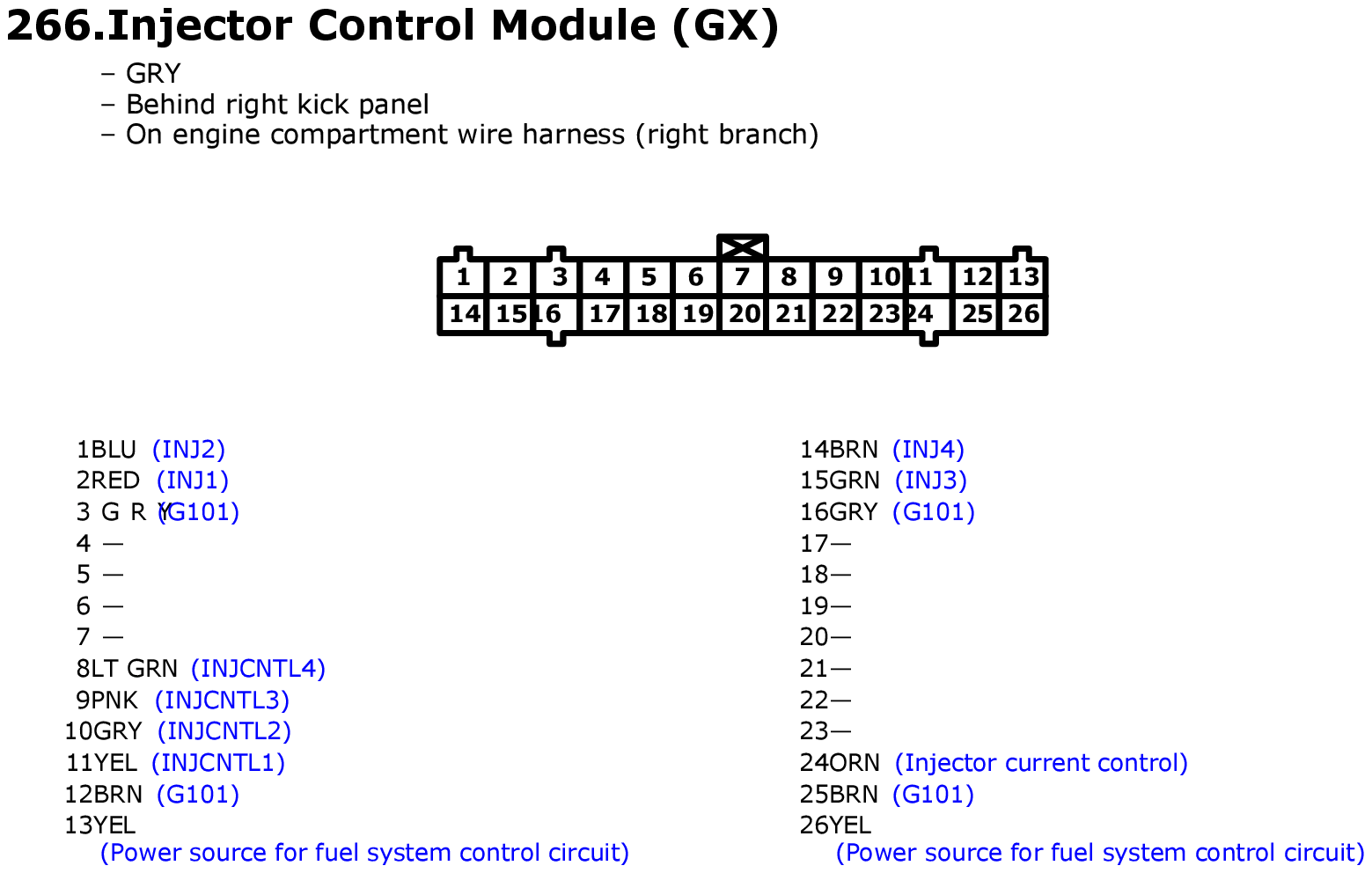

Fig 1: Injector Control Module (PGM-FI System, A/T) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Injector Control Module (PGM-FI System, A/T) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
