Ignition Switch Connector End View

Fig 1: Ignition Switch Connector End View
GHHW1110Courtesy of AMERICAN HONDA MOTOR CO., INC.

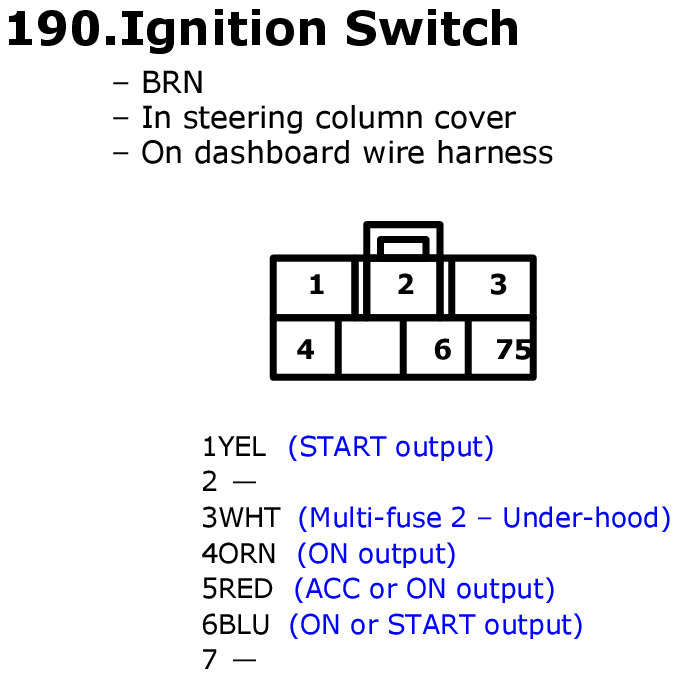

Fig 1: Ignition Switch Connector End View
GHHW1386Courtesy of AMERICAN HONDA MOTOR CO., INC.

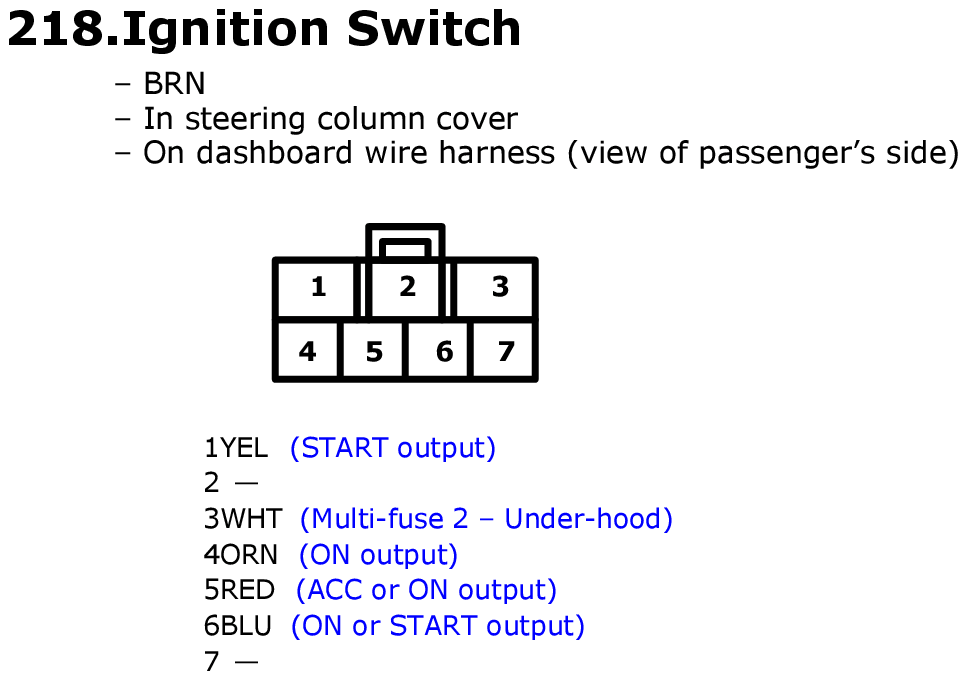

Fig 1: Ignition Switch Connector End View
GHHW1692Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Ignition Switch Connector End View
GHHW1996Courtesy of AMERICAN HONDA MOTOR CO., INC.

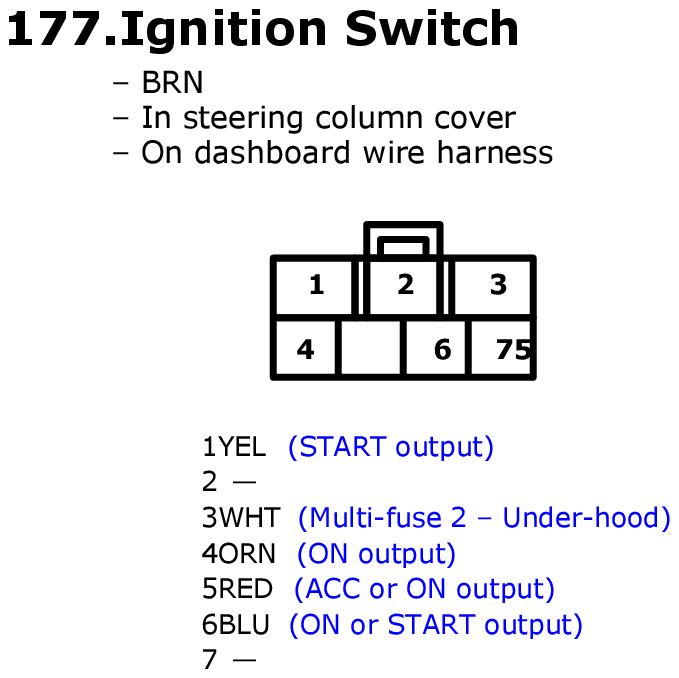

Fig 1: Ignition Switch Connector End View
GHHW2265Courtesy of AMERICAN HONDA MOTOR CO., INC.

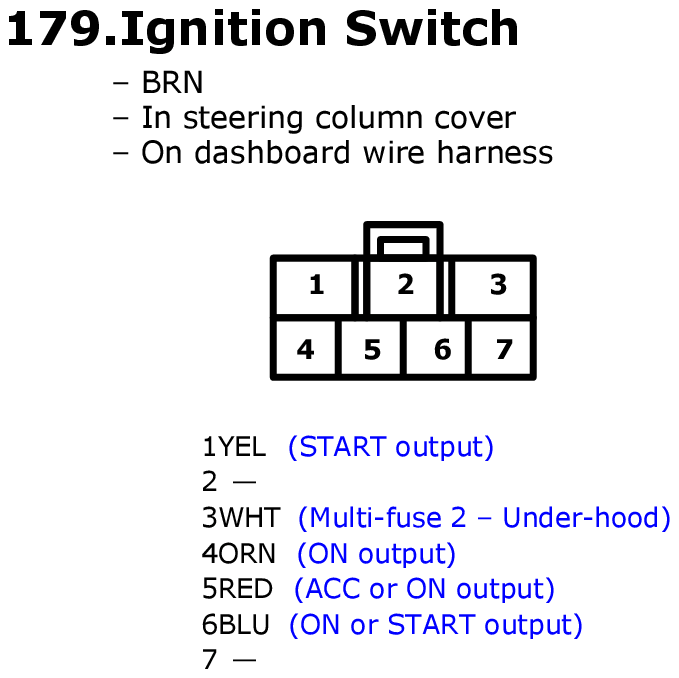

Fig 1: Ignition Switch Connector End View
GHHW2518Courtesy of AMERICAN HONDA MOTOR CO., INC.
