Ignition Key Switch Connector End View

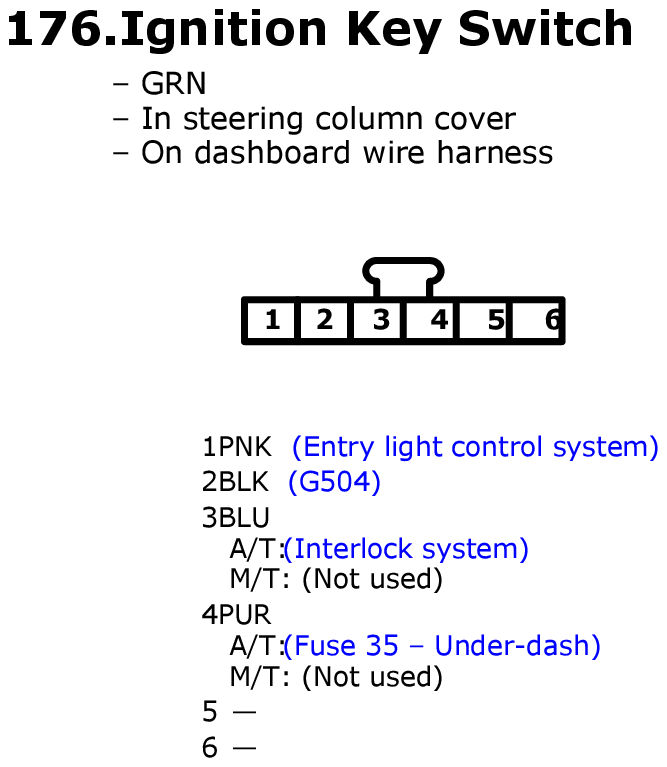

Fig 1: Ignition Key Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

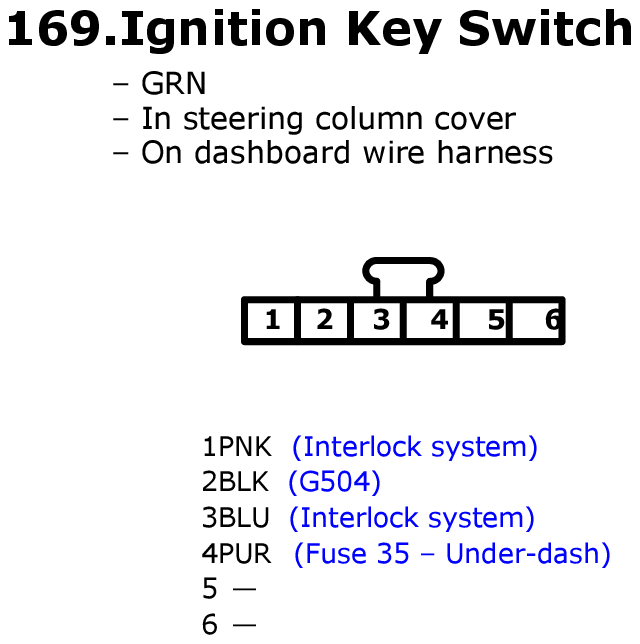

Fig 1: Ignition Key Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

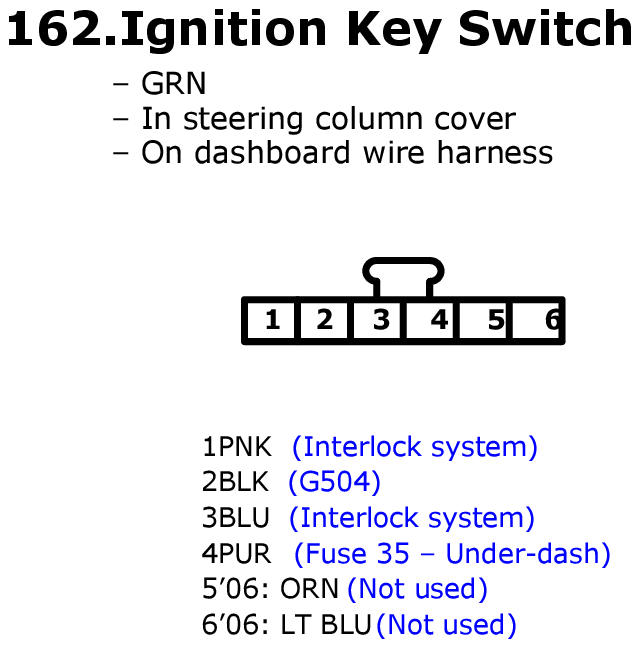

Fig 1: Ignition Key Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

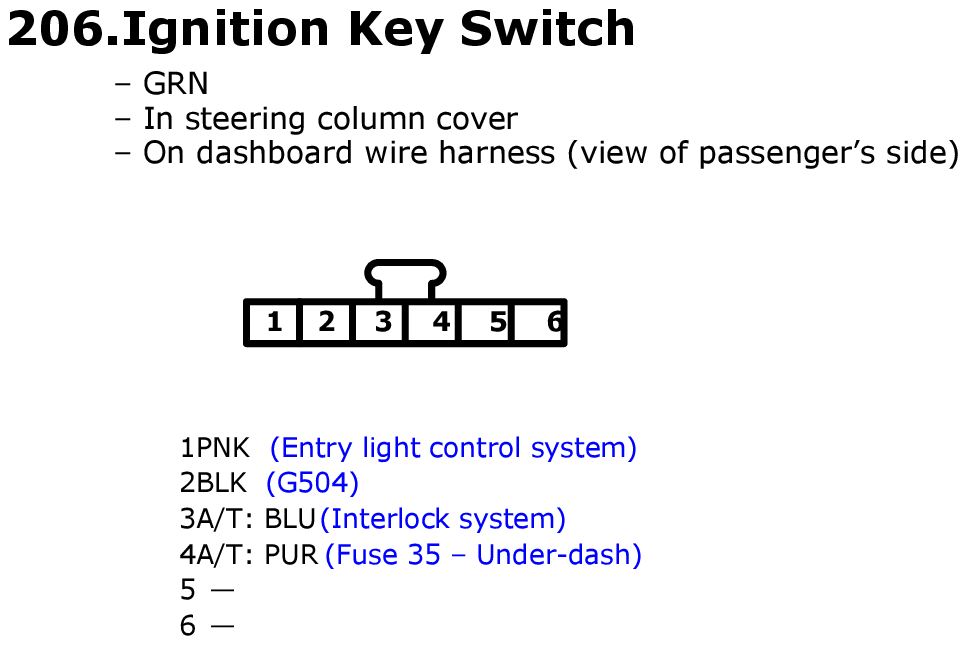

Fig 1: Ignition Key Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

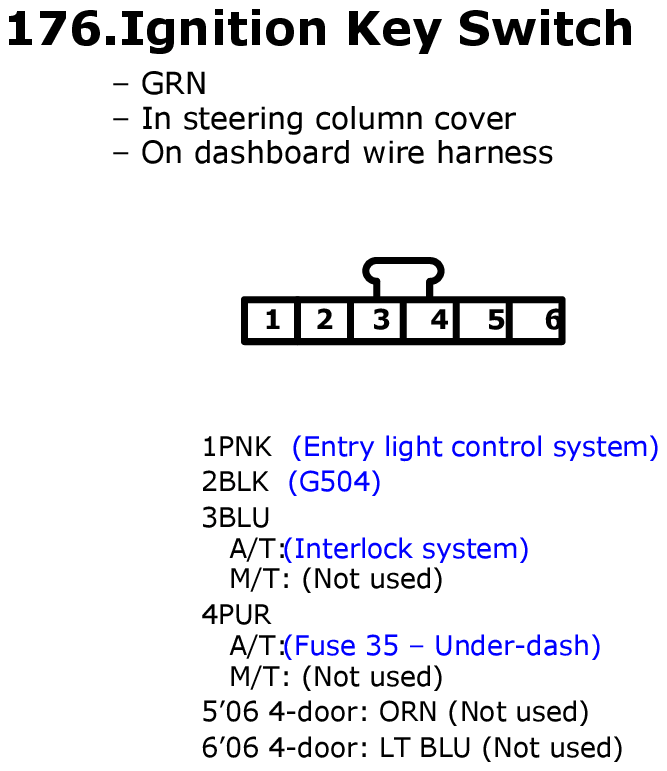

Fig 1: Ignition Key Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Ignition Key Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
