Gauge Control Module (Tach) Connector End View

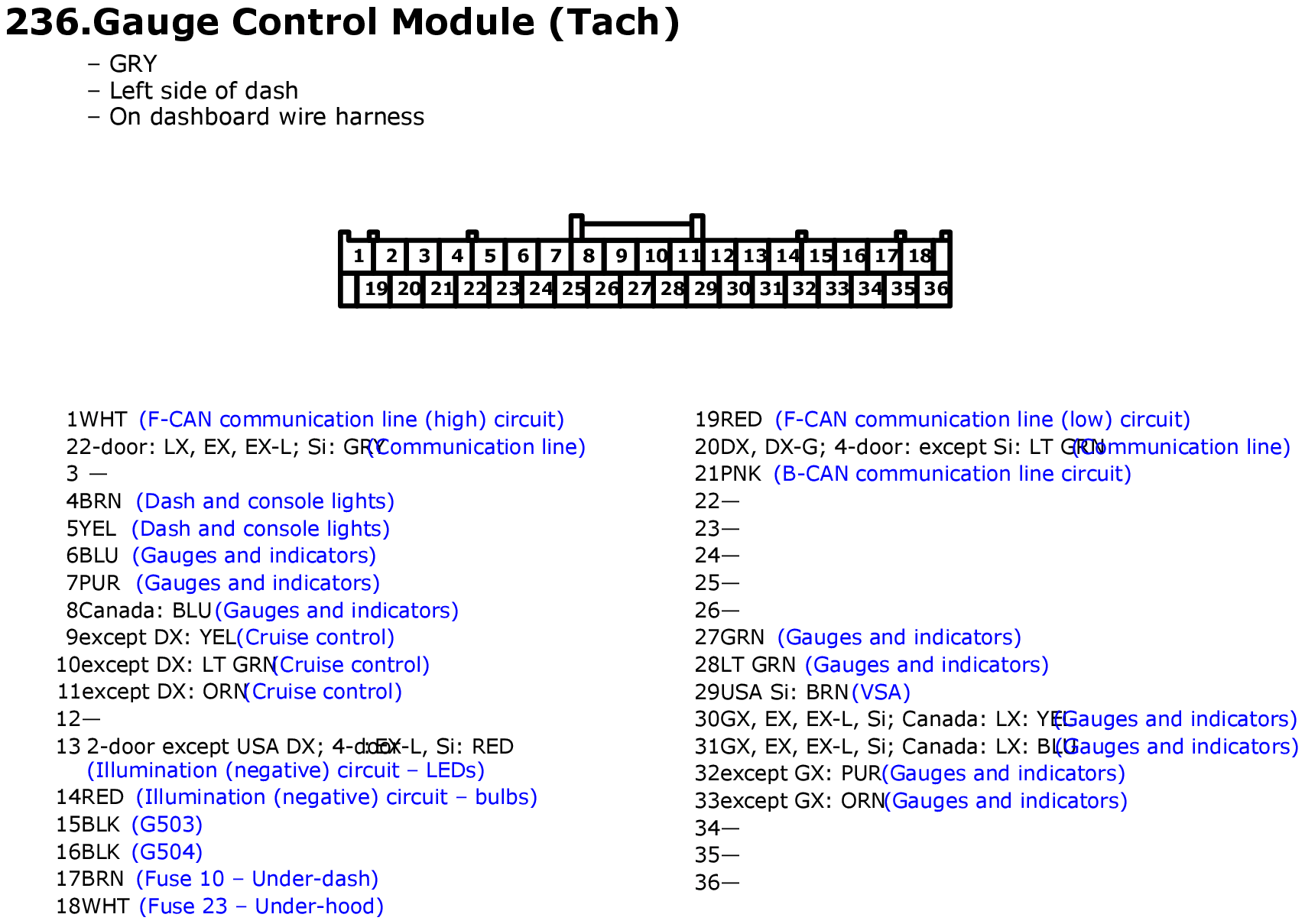

Fig 1: Gauge Control Module (Tach) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

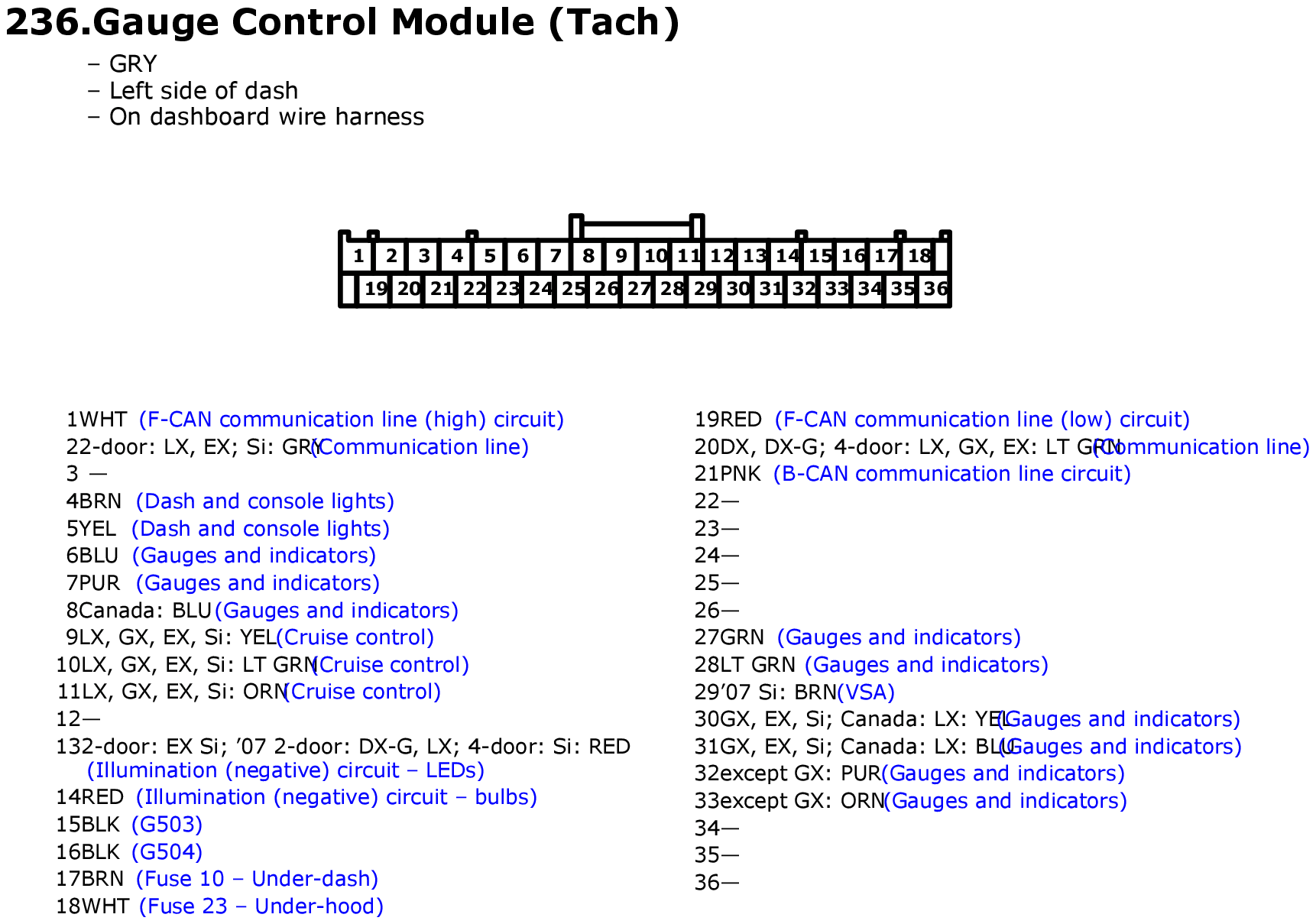

Fig 1: Gauge Control Module (Tach) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

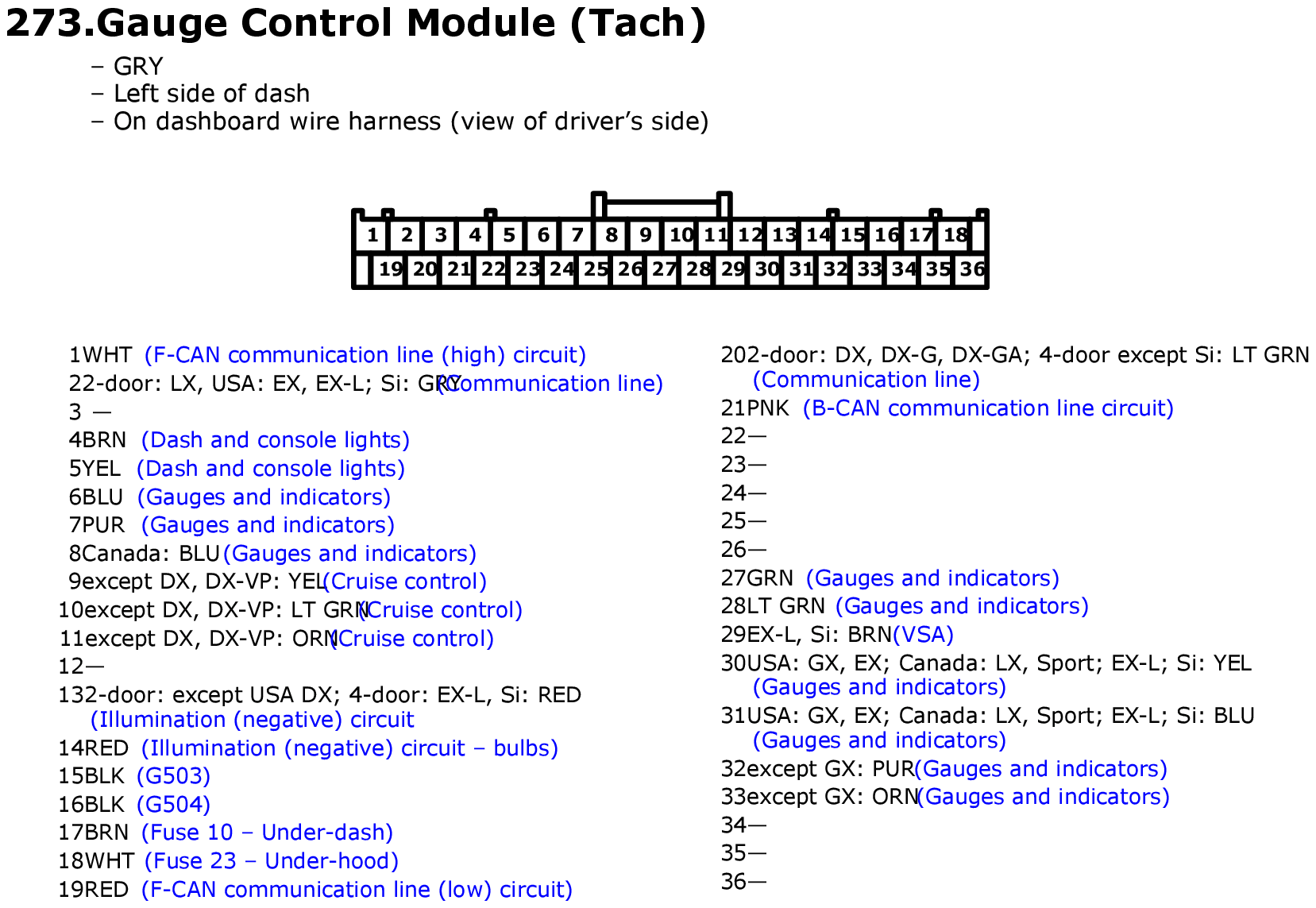

Fig 1: Gauge Control Module (Tach) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

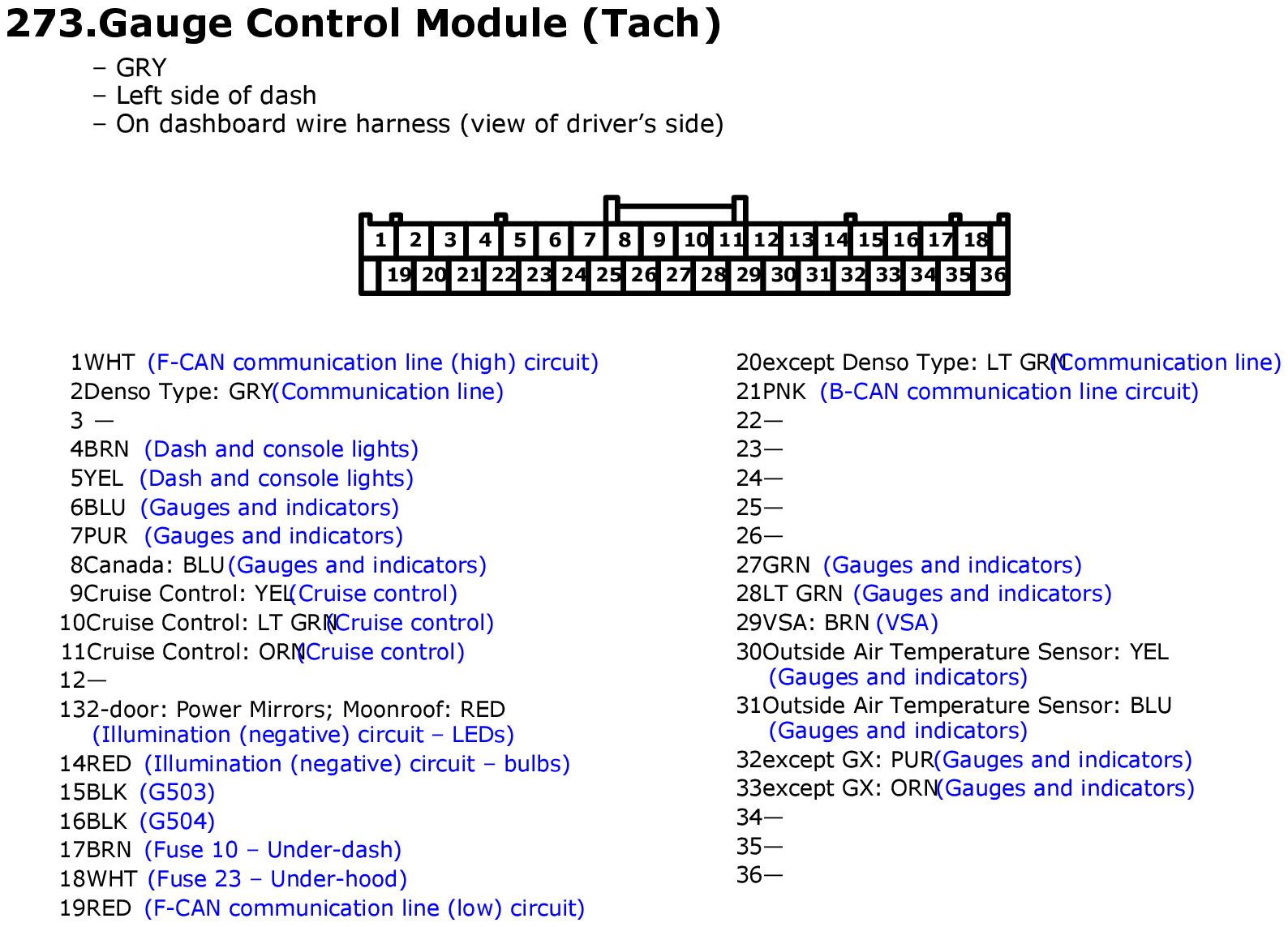

Fig 1: Gauge Control Module (Tach) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

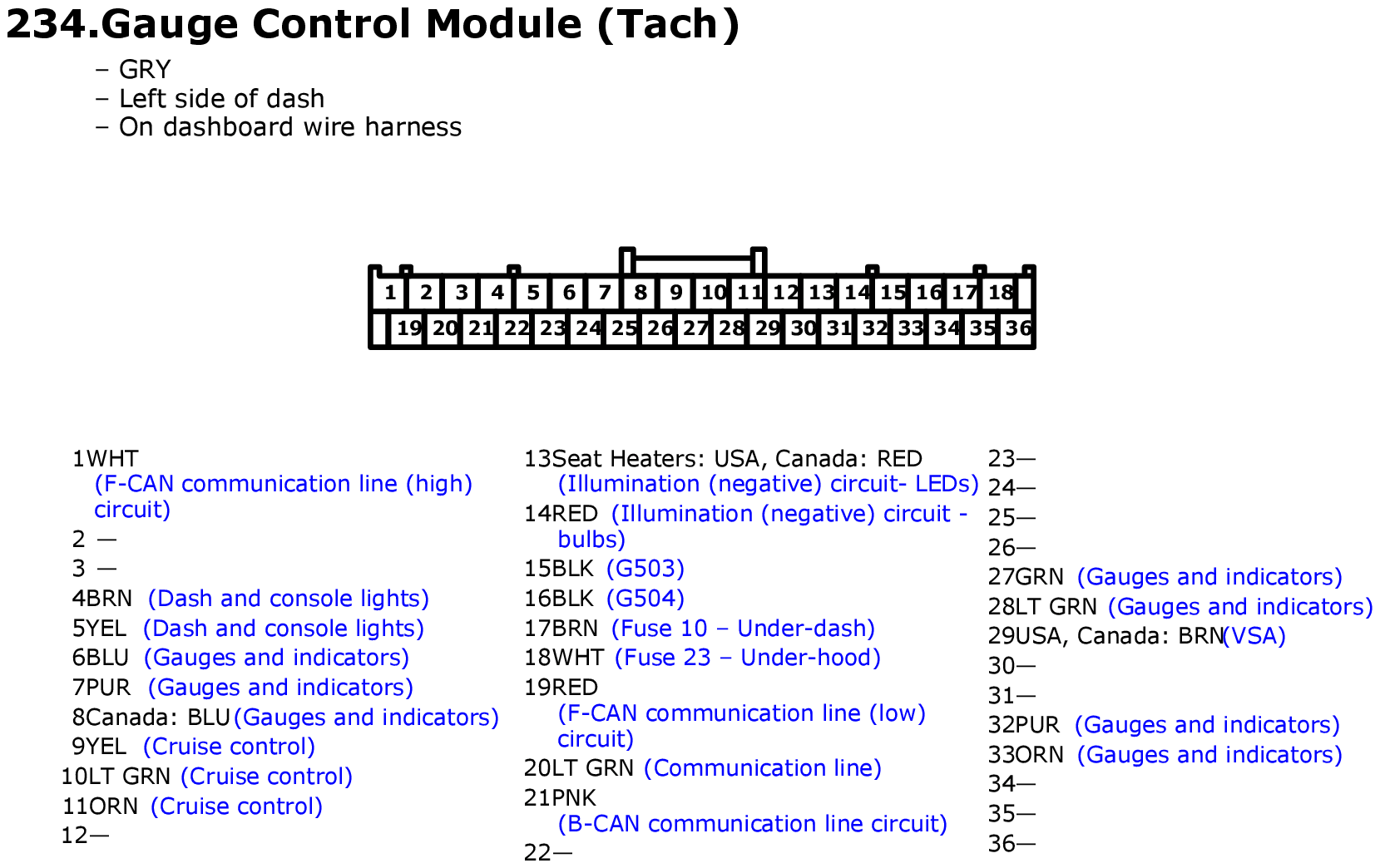

Fig 1: Gauge Control Module (Tach) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

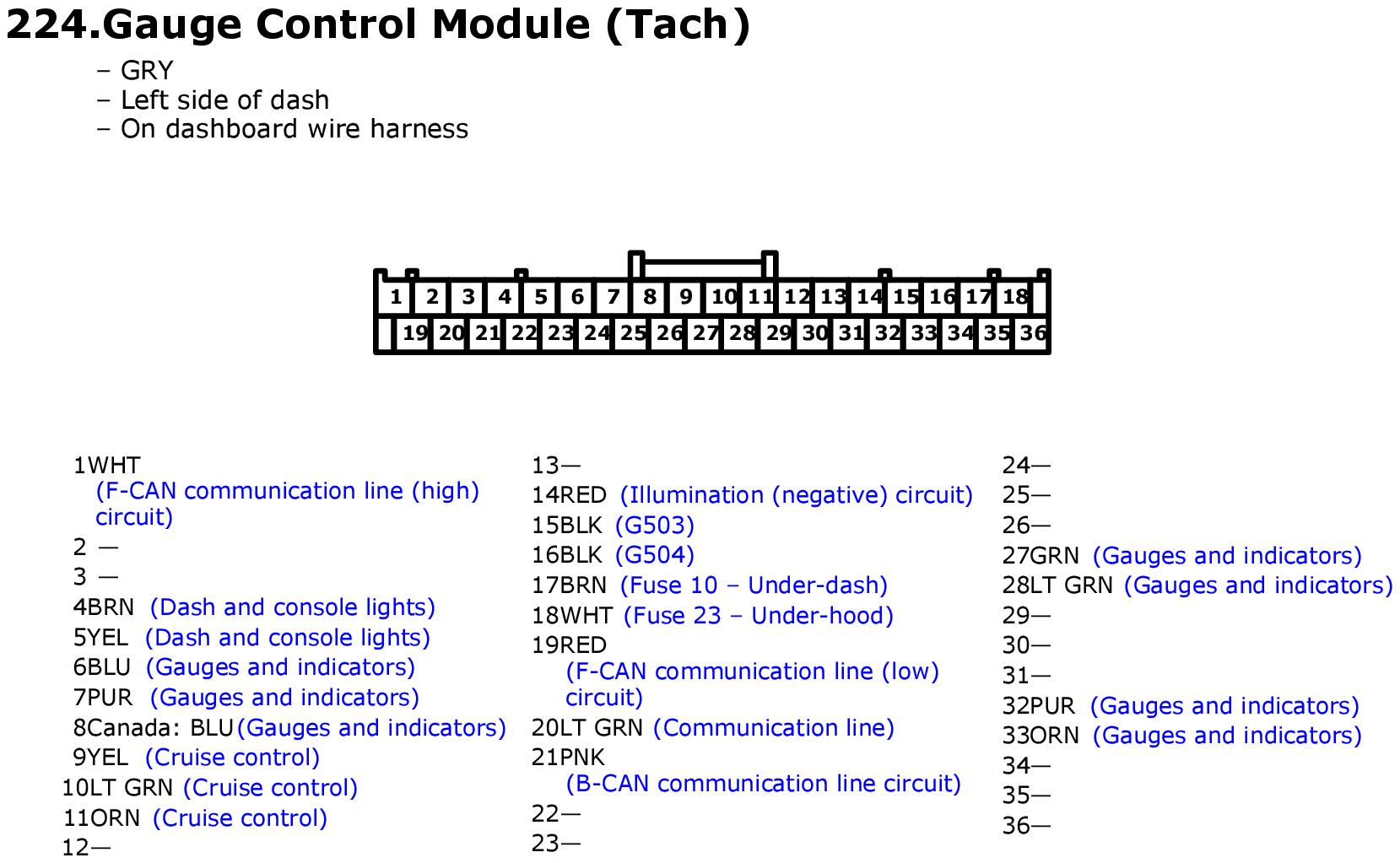

Fig 1: Gauge Control Module (Tach) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
