ECT Sensor 2 Connector End View

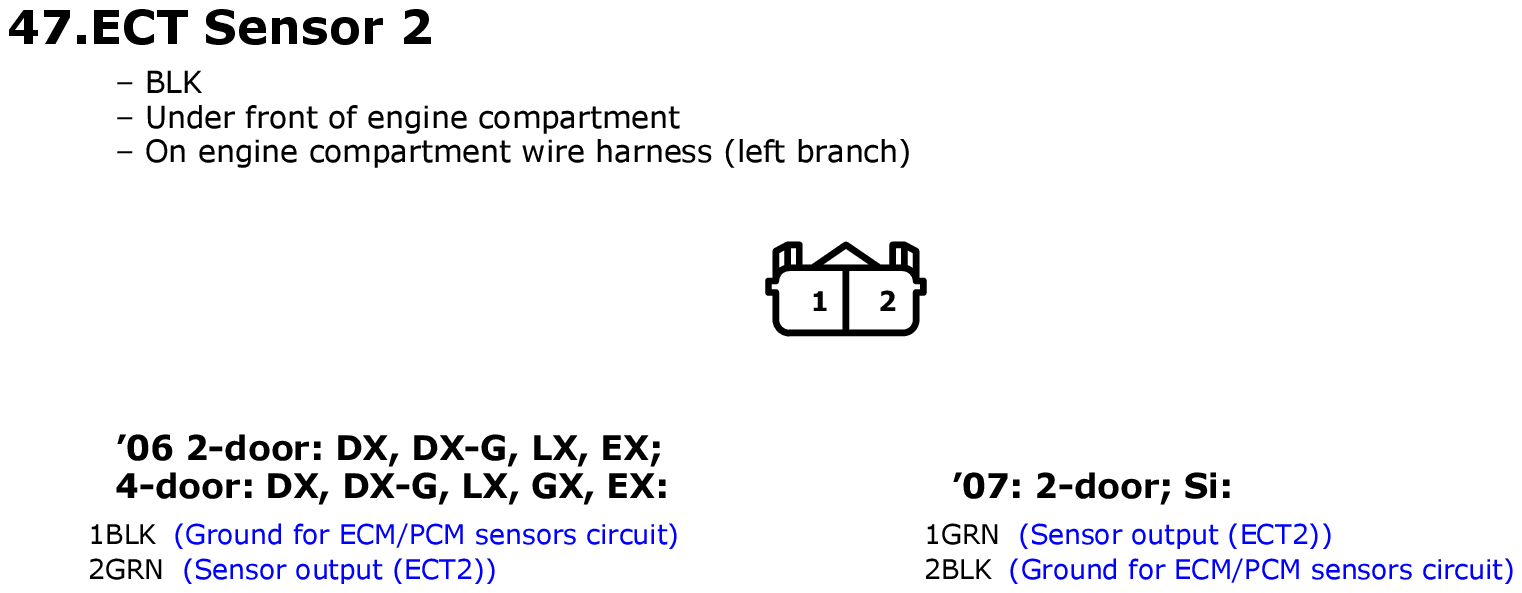

Fig 1: ECT Sensor 2 Connector End View
GHHW970Courtesy of AMERICAN HONDA MOTOR CO., INC.

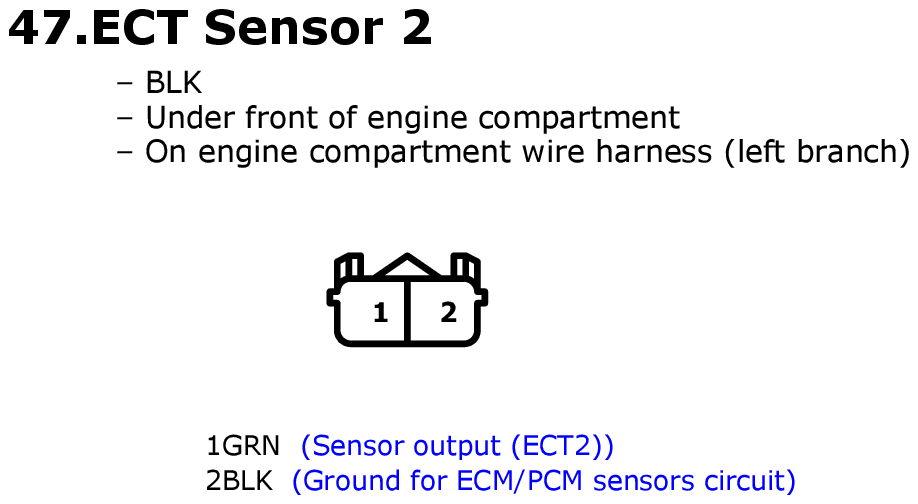

Fig 1: ECT Sensor 2 Connector End View
GHHW1243Courtesy of AMERICAN HONDA MOTOR CO., INC.

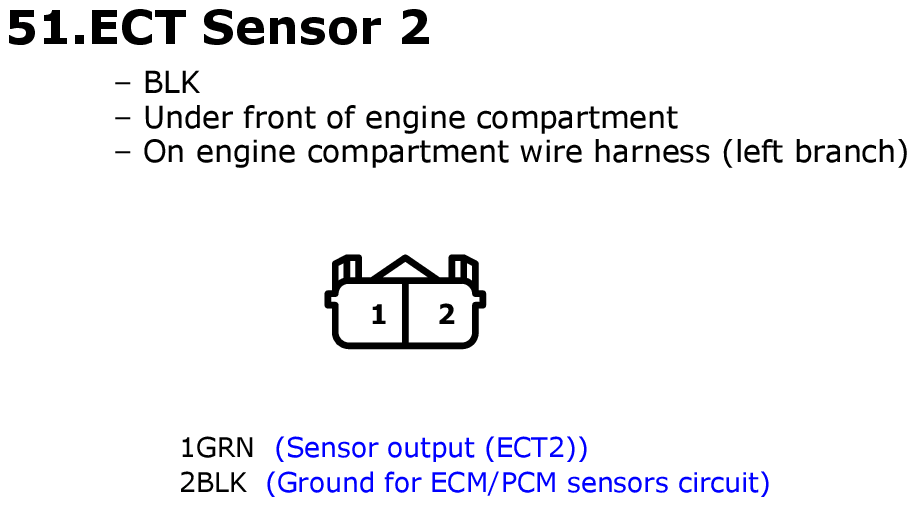

Fig 1: ECT Sensor 2 Connector End View
GHHW1525Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: ECT Sensor 2 Connector End View
GHHW1831Courtesy of AMERICAN HONDA MOTOR CO., INC.

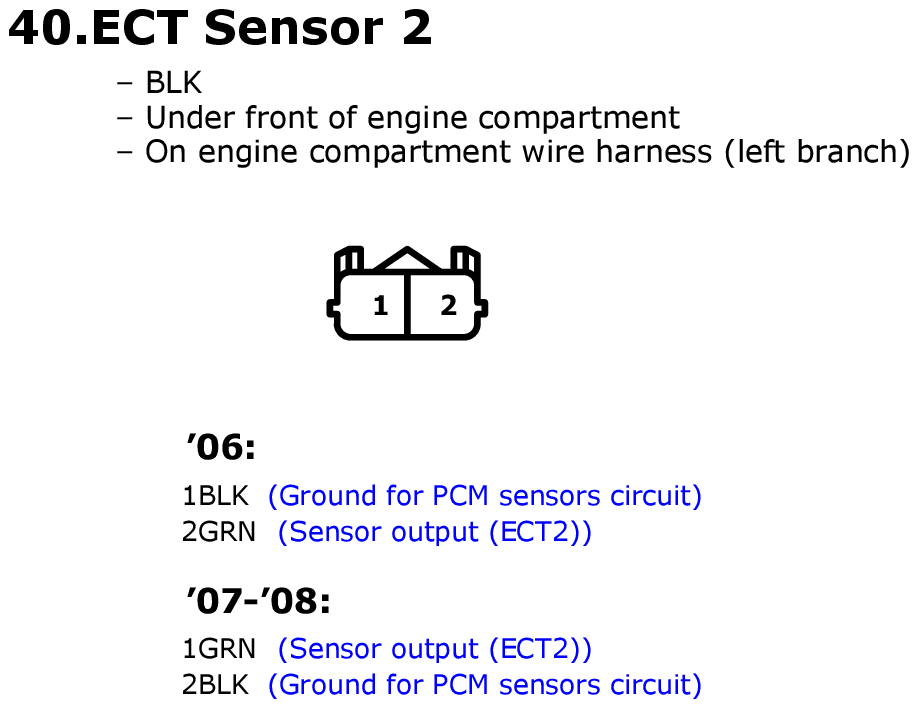

Fig 1: ECT Sensor 2 Connector End View
GHHW2128Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: ECT Sensor 2 Connector End View
GHHW2374Courtesy of AMERICAN HONDA MOTOR CO., INC.
