ECT Sensor 1 Connector End View

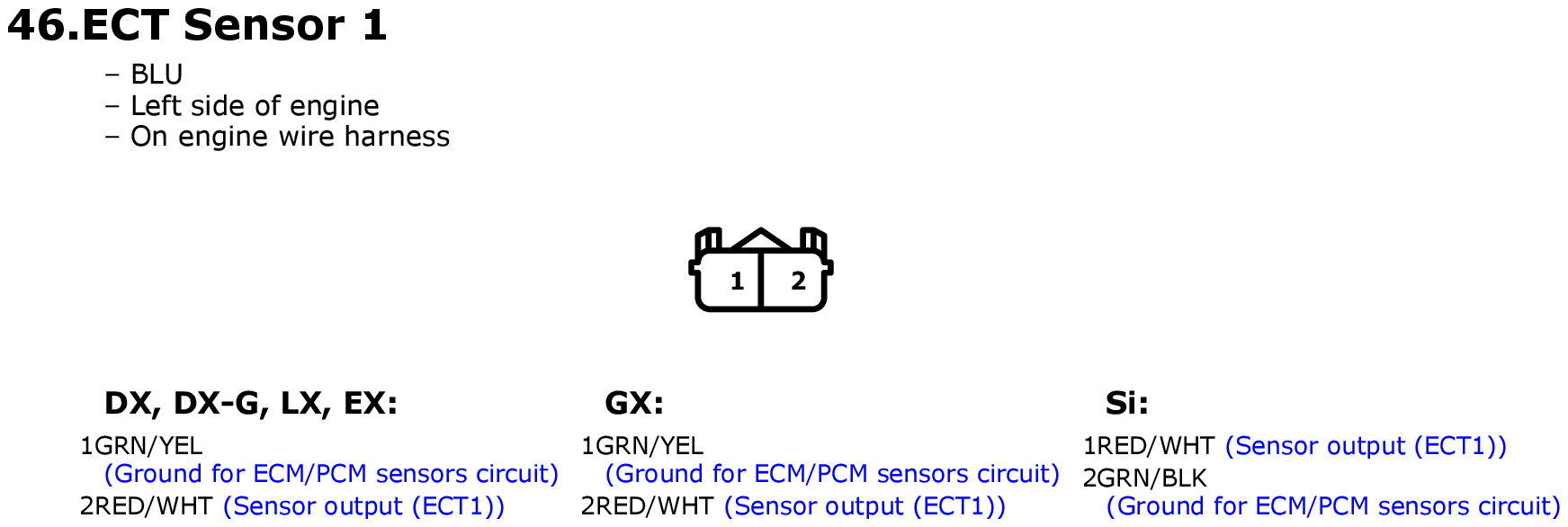

Fig 1: ECT Sensor 1 Connector End View
GHHW969Courtesy of AMERICAN HONDA MOTOR CO., INC.

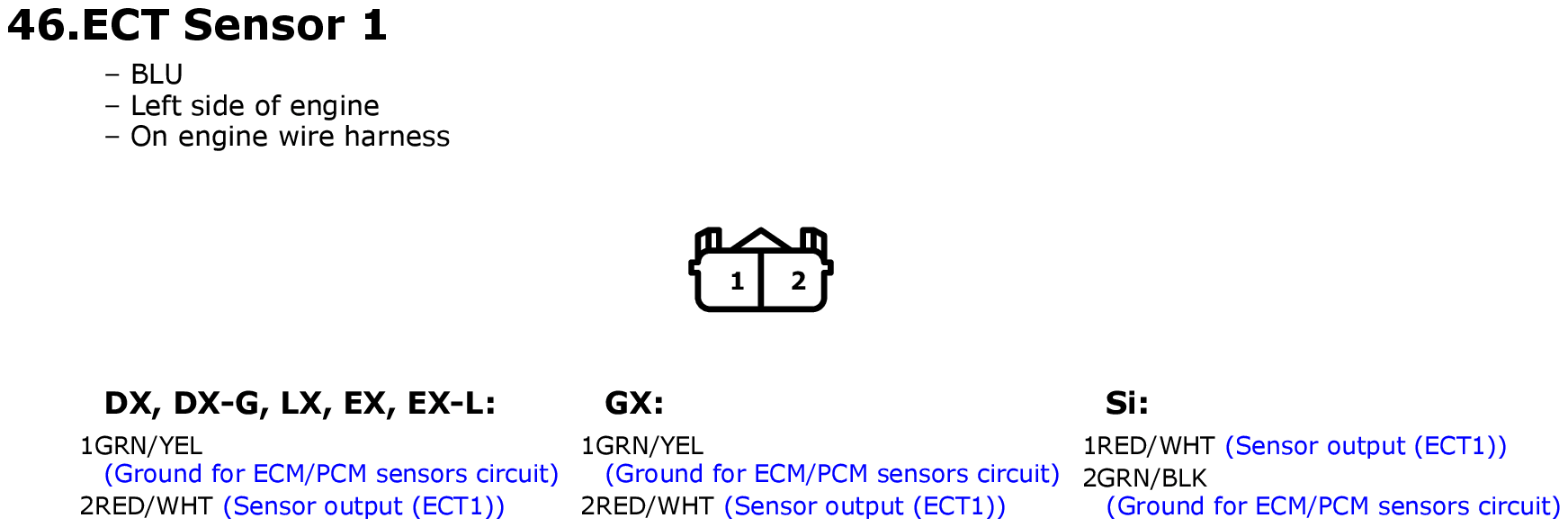

Fig 1: ECT Sensor 1 Connector End View
GHHW1242Courtesy of AMERICAN HONDA MOTOR CO., INC.

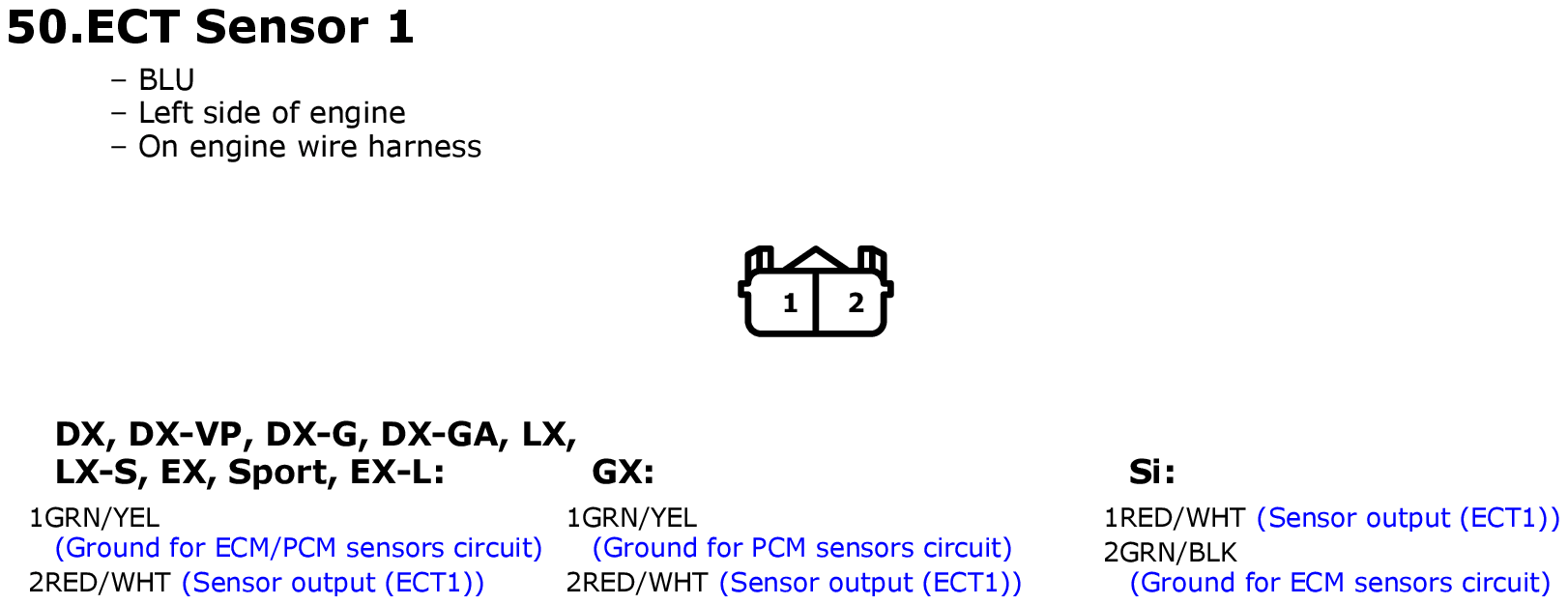

Fig 1: ECT Sensor 1 Connector End View
GHHW1524Courtesy of AMERICAN HONDA MOTOR CO., INC.

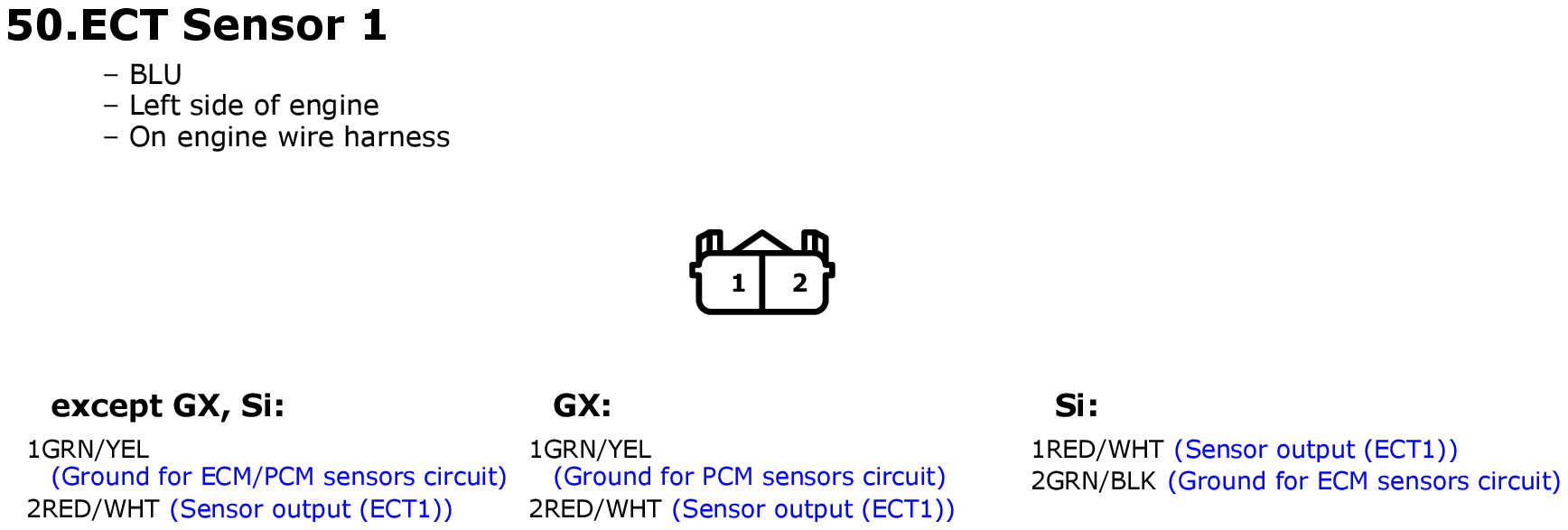

Fig 1: ECT Sensor 1 Connector End View
GHHW1830Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: ECT Sensor 1 Connector End View
GHHW2127Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: ECT Sensor 1 Connector End View
GHHW2373Courtesy of AMERICAN HONDA MOTOR CO., INC.
