Home
>>
Honda
>>
2006
>>
Civic Si
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
Climate Control Unit
Climate Control Unit

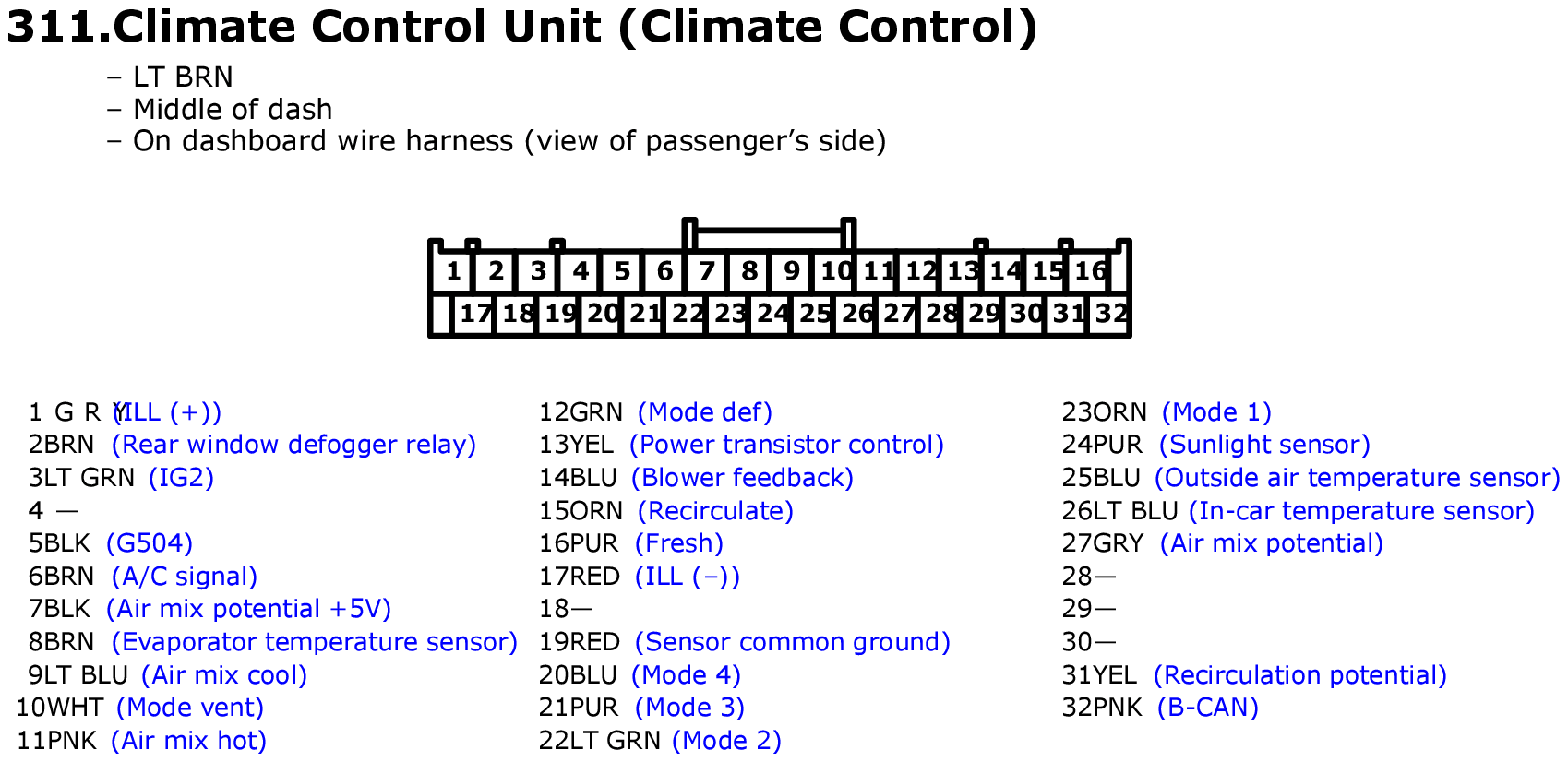

Fig 1: Climate Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
