Ceiling Light Connector End View

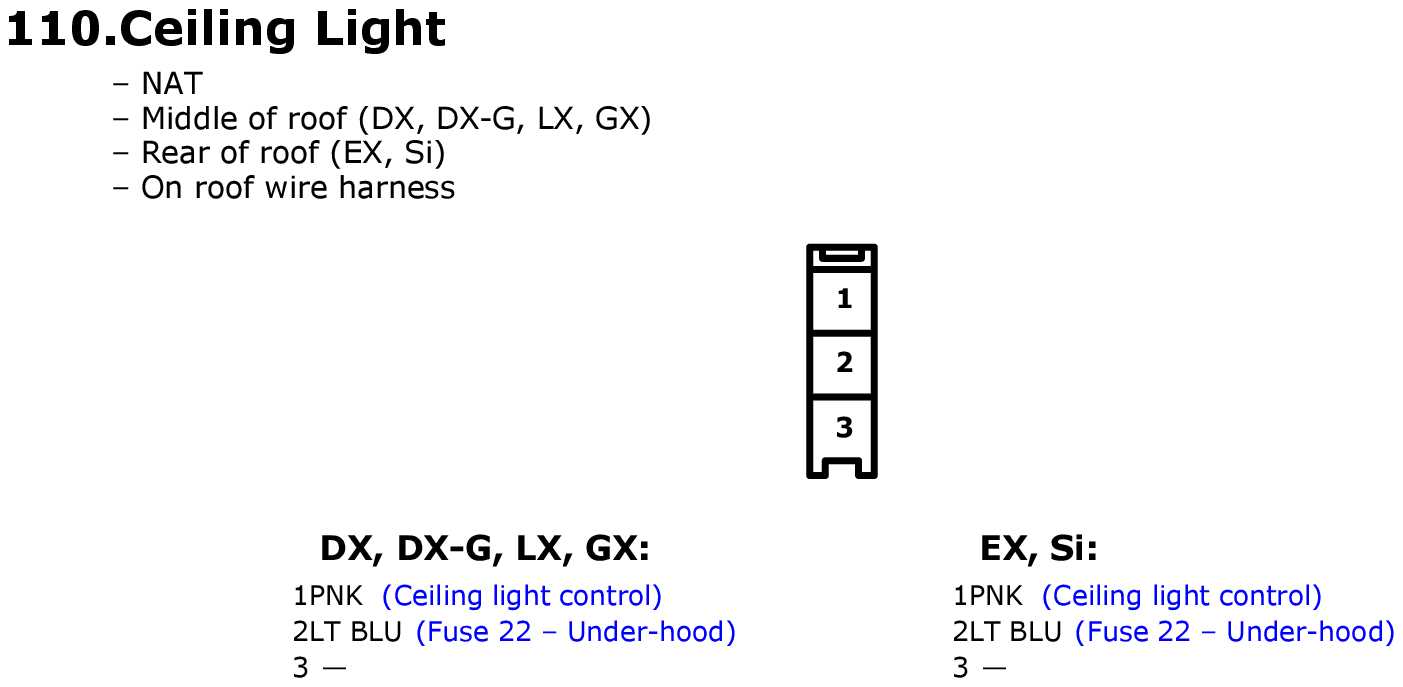

Fig 1: Ceiling Light Connector End View
GHHW1032Courtesy of AMERICAN HONDA MOTOR CO., INC.

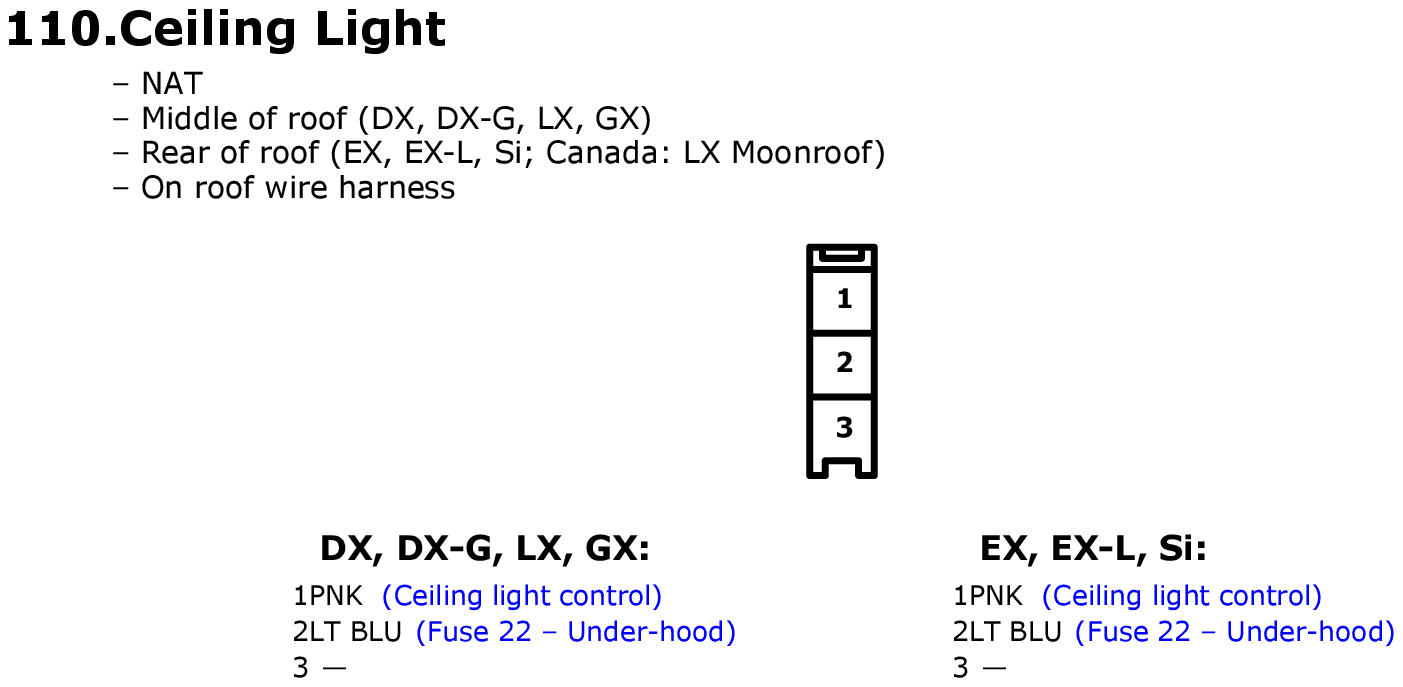

Fig 1: Ceiling Light Connector End View
GHHW1306Courtesy of AMERICAN HONDA MOTOR CO., INC.

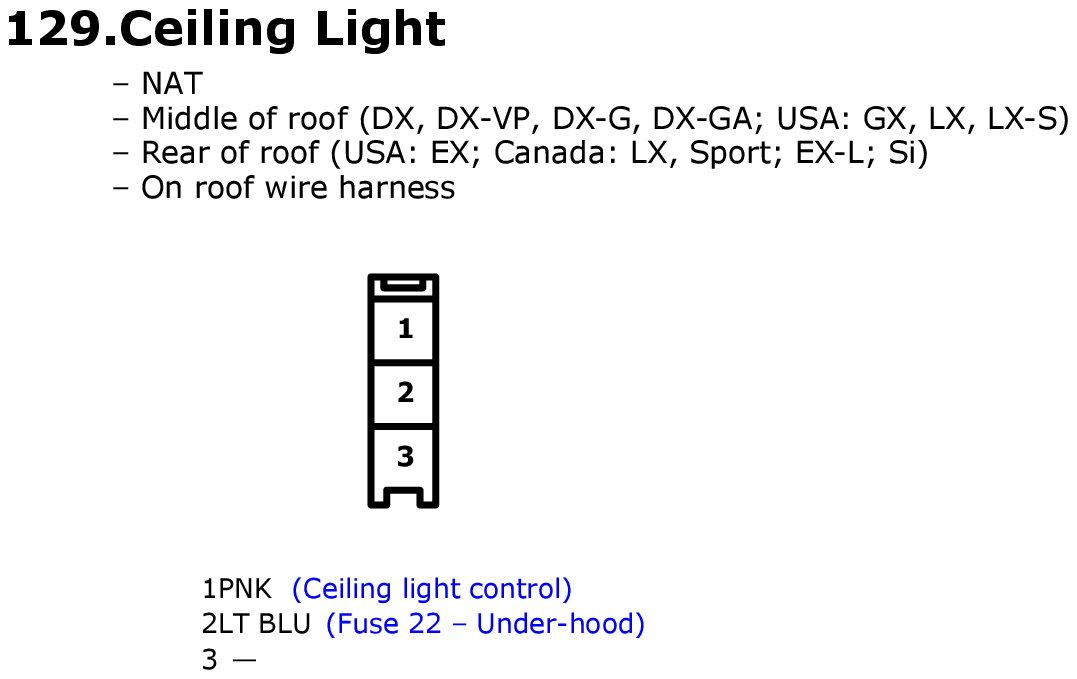

Fig 1: Ceiling Light Connector End View
GHHW1603Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Ceiling Light Connector End View
GHHW1907Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Ceiling Light Connector End View
GHHW2190Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Ceiling Light Connector End View
GHHW2437Courtesy of AMERICAN HONDA MOTOR CO., INC.
